LINDY 70m 2 Port Cat.6 HDMI 4K60 Splitter Extender

Kods 38385

Condition: Jauns

Vairāk informācijas

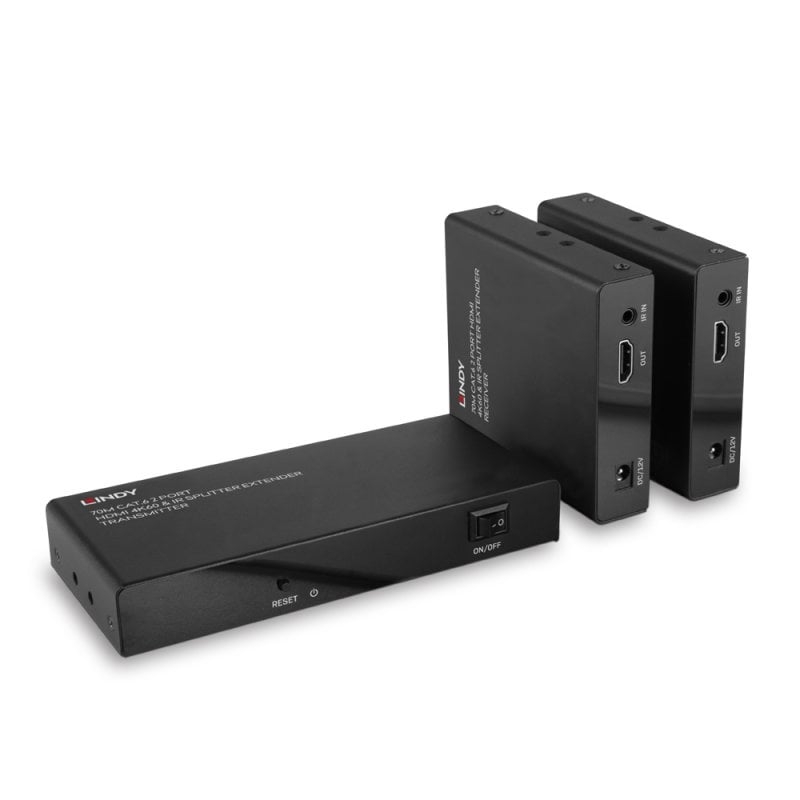

The Lindy 70m Cat.6 2 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI® signals to multiple displays using standard Cat.6 network cables.

Scalable Content Distribution
This Cat.6 splitter allows for distribution to up 2 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters (same unit or the 4 port version 38262) for even larger scale content distribution.

Immersive 4K and HDR Support
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.

Seamless IR Control
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.

Simultaneous PoC Distribution
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.

Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.

Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Maximum transfer distance	70 m
Chipset	GSV2006 & GSV5100
EDID management	Jā
Infrared (IR) frequency range	20 - 60 kHz
Bandwidth	18 Gbit/s
Audio formats supported	LPCM
HDCP	Jā
Material	Metal
HDCP version	2.2
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH & California Propositon 65
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	2
HDMI in	1
Number of HDMI outputs	2
Remote (IR) input	1
Remote (IR) output	1
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Receiver dimensions (WxDxH)	100 x 88 x 23 mm
Receiver weight	199 g
Transmitter dimensions (WxDxH)	154 x 103 x 23 mm
Transmitter weight	263 g
Quantity per pack	3 pc(s)
Package width	292 mm
Package depth	238 mm
Package height	55 mm
Package weight	1.26 kg
Package type	Box
Cables included	IR
Manual	Jā
Mounting brackets included	Jā
Packaging content	70m Cat.6 2 Port HDMI® 4K60 Splitter Extender 2 x Receivers IR Emitter Cable, 1.2m 2 x IR Receiver Cable, 1.2m 2 x Transmitter Mounting Brackets & Screws 4 x Receiver Mounting Brackets & Screws Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual
