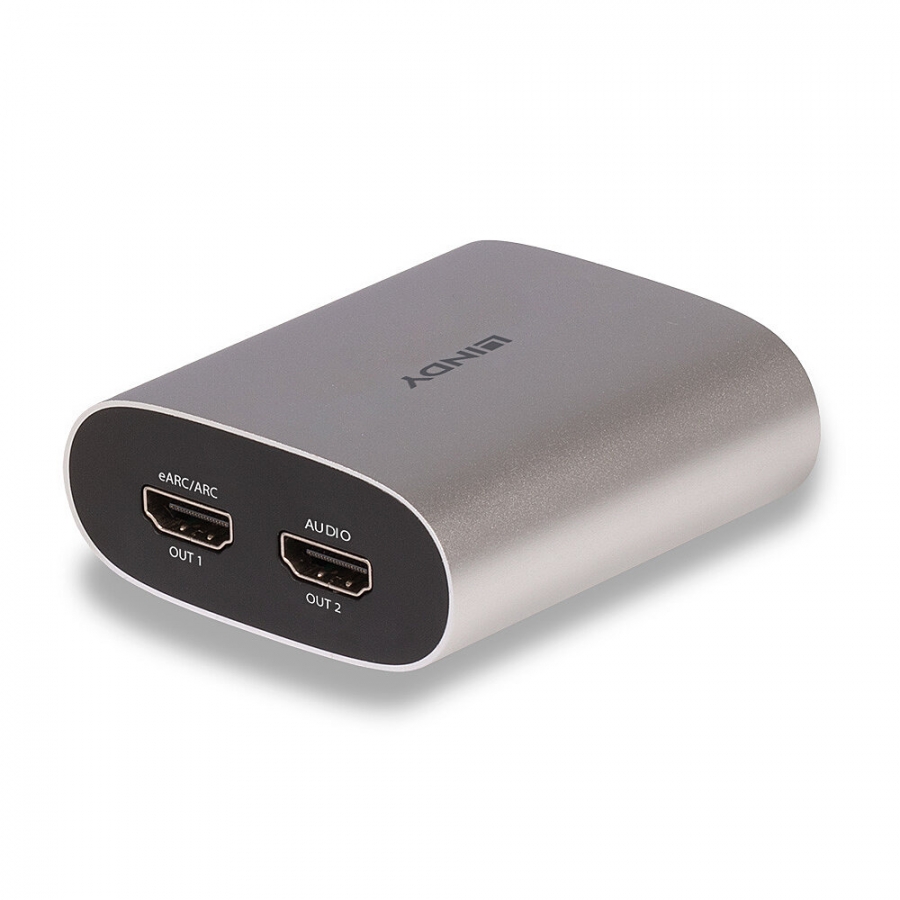

Lindy 4k60 HDMI EARC EXTRACTOR

Lindy

LIN38368

Jauns

Specifications



  • AV Interface: HDMI
  • Interface Standard: HDMI 1.4
  • Supported Bandwidth: 18Gbps
  • Maximum Input Resolution: 4K @60Hz
  • Maximum  Output Resolution:4K @60 Hz
  • Chipset: Sil9437CNUC
  • HDCP Support: 2.3
  • Supported Audio: PCM 2.0, LPCM 5.1/ 7.1 Dolby digital
  • Separate Audio Ports: N/A
  • Special Features: N/A
  • Colour Depth: 8-Bit1 10-Bit, 12-Bit (1080p @60Hz), 8- Bit (4K2K @60Hz YUV4:4:4), 8-Bit, 10-Bit, 12- Bit (4K2K @ 6Hz YCbCR 4:2:2/4:2:0)
  • Colour Space:  RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • HDMI Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HHDCP 2.3/ 1.x



Connectors



Input:

  • 1 x HDMI Type A (19-pin female)


Output:

  • 2 x HDMI Type A ( 19-pin female)



Physical Properties



  • Dimensions (approx.) WxDxH:
    • 65mm (2.36in)
    • 70: mm (2.75in)
    • 27: mm (1.06in)
  • USB Cable Length: 1500mm (59.05in).
  • Housing Material: Aluminum Enclosure
  • Net Weight: 0.083kg (0.18lb)
  • Operating Temperature: 0°C -40 °C (32°F - 140°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Colour: Sliver



Miscellaneous



  • Packaging Type: Carton Box
  • Packaging Dimensions: 65 x 70x 27mm (2.55x 2.75 x 1.06in)
  • Gross Weight: 0.1916kg (0.42lb)
  • Warranty (Years): 2 years
  • Product Compliance: CE, FCC, RoHS & REACH



Package Contents



  • 1 x 18Gbps HDMI eARC Extractor
  • 1 x USB Cable (USB-A to Micro USB)
  • 1 x User Manual



Purchasing Information



  • No.: 38368
  • EAN: 4002888383684
