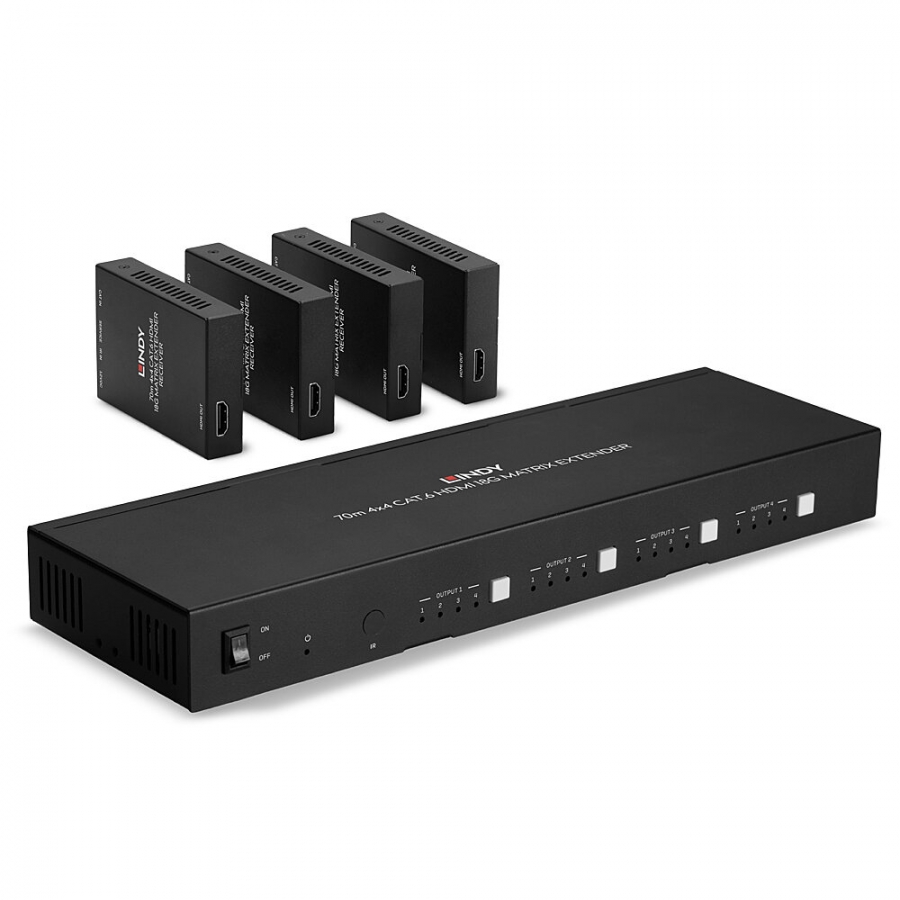

Lindy 70m Cat.6 4x4 HDMI 4K60 Matrix Extender

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 70m (229.66ft)
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: EDID Management: Pre-set or Copy Functionality
• Supported Audio: HDMI Audio Pass-through
• Separate Audio Ports: -
• IR Support: 20~60KHz
• CEC Support: Pass-through
• Serial Interface: RS-232
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.6 each port
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: GSV
• Special Features: RS-232 & Telnet Control

Mirrored HDMI Outputs

Power over Cat.6

4K to 1080 Downscaling Per Port

Connectors

• Transmitter Input: 4 x HDMI Type A (Female)
• Transmitter Output: 4 x HDMI Type A (Female), 4 x RJ-45 (Female), 4 x 3.5mm IR (Female), RJ-45 LAN Control (Female), 3-Pin Phoenix Connector (Female)
• Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
• Receiver Output: HDMI Type A (Female)
• Bi-directional Ports: -
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: Matrix Extender: 320x100x36mm (12.6x3.94x1.42in), Receiver: 61x88x18mm (2.4x3.46x0.71in)
• Housing Material: Metal
• Net Weight: Matrix Extender: 0.95kg (2.09lb), Receiver: 0.14kg (0.31lb)
• Operating Temperature : 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Power Requirements: 12VDC 2.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 393x88x271mm (15.47x3.46x10.67in)
• Gross Weight: 2.58kg (5.69lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 70m Cat.6 4x4 HDMI 4K60 Matrix Extender
• 4 x Cat.6 HDMI Receiver
• Multi-country Power Supply (UK, EU, US & AUS)
• IR Remote with CR2025 Battery
• 4 x IR Emitter Cable, 1.5m
• 4 x Receiver Cable, 1.5m
• RS-232 Male to Female Cable, 1.5m
• 3-Pin Phoenix Connector
• 10 x Mounting Ears
• Lindy Manual

Purchasing Information

• No.: 38328
• EAN: 4002888383288
