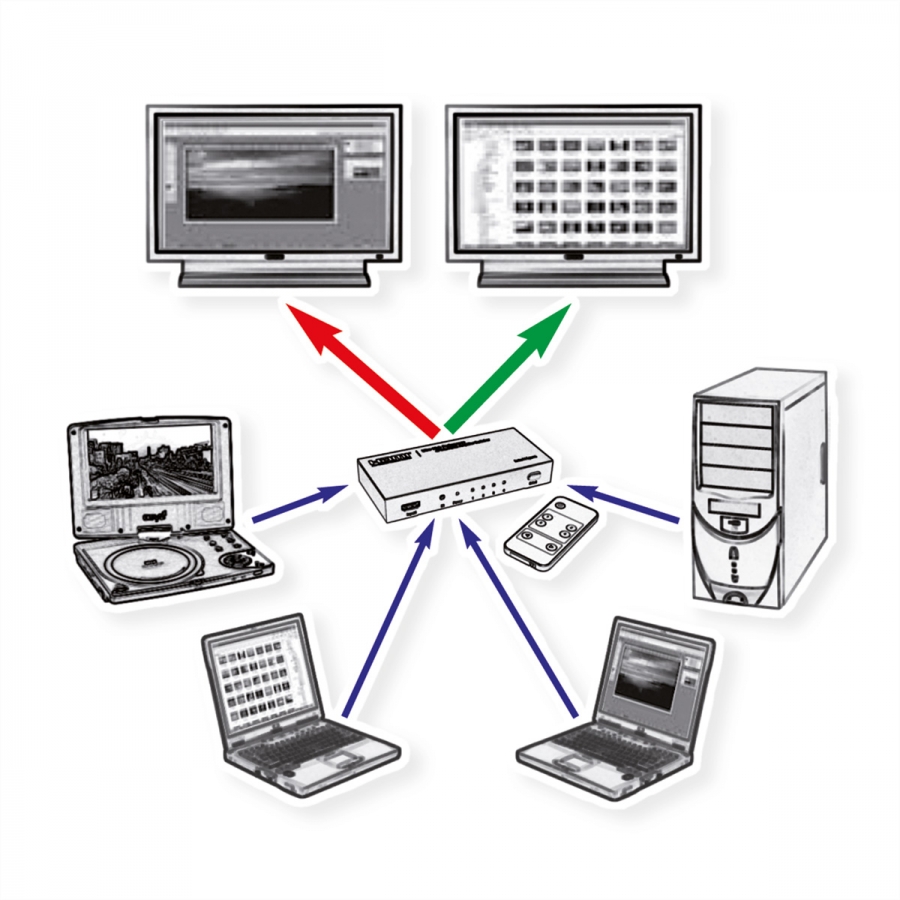

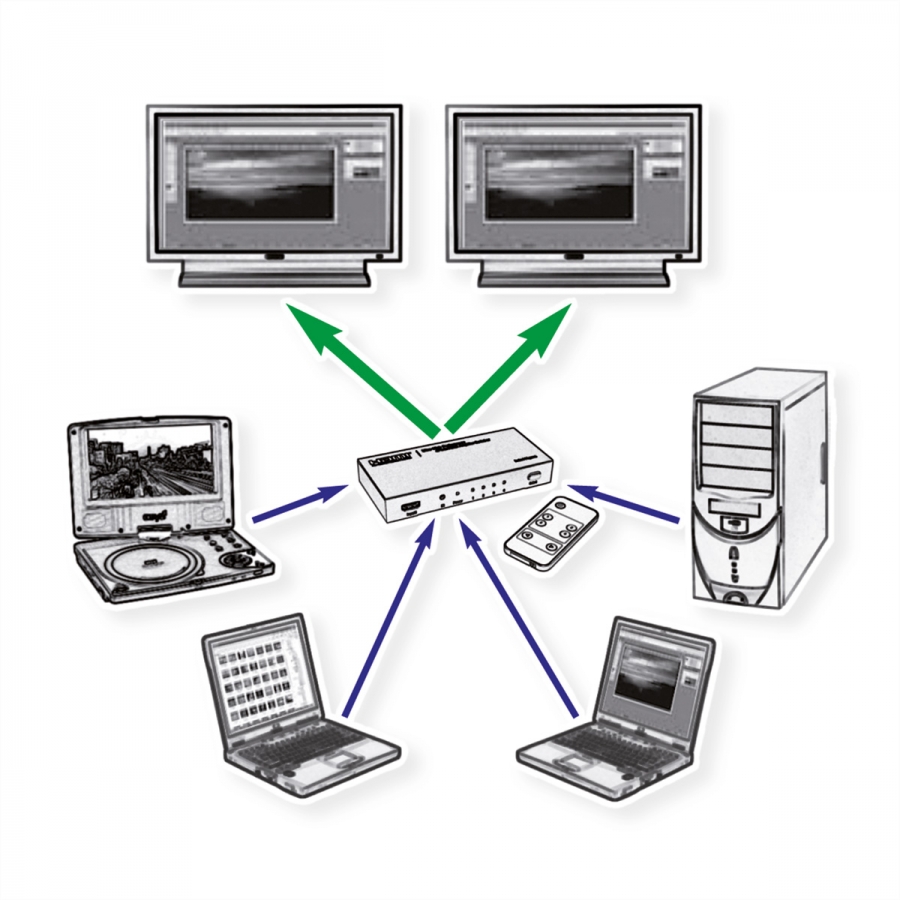

- Four HDMI High Speed input signals can be switched to two HDMI High Speed output devices
- Outputs: 1x Toslink/SPDIF, 1x Stereo RCA
- Supports Ultra HD 4K@60Hz
- Max. resolution (nominal): 3840 x 2160 @60Hz
- Supports 480i, 480p, 720i, 720p,1080i and 1080p
- HDCP compatible
- Supports Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc.
- Supported digital audio formats: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-Digital
- Input devices can be switched by IR remote control or by push buttons on the switch
- Contents: Switch, power supply, remote control, manual
|
| Manufacturer | ROLINE | | Product group | Splitters and selectors | | Product type | HDMI-Matrix-Switch 4K | | Colour | black | | Scope of delivery | HDMI Matrix Switch, power supply, remote control, QIG | | Interface | HDMI | | Inputs | 4 | | Outputs | 2 | | Video input | 4x HDMI Female | | Video output | 2x HDMI Female | | Video band width | 340 MHz | | Max. resolution (nom.) | 3840x2160@30Hz (4K2K) | | Max. resolution | 3840 x 2160 @60Hz (4K, UHD-1) | | Dimensions (HxWxD) | 32x270x111 mm | | Power supply output | 5V DC, 2A | | Technical particularity | Switching automatically, by push button or by IR remote cont | | Height | 32 mm | | Width | 270 mm | | Depth | 111 mm | | Current catalog edition | C22-06.12 |
|
