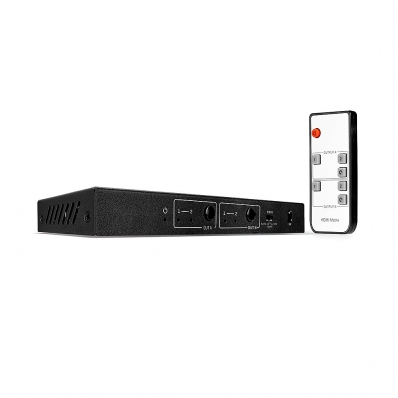

Lindy 2x2 HDMI 18G Matrix

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: HDMI Audio Pass-through, TosLink (Optical): Up to 5.1CH, 3.5mm: LPCM 2CH
• IR Support : 20 - 60 kHz
• CEC Support: Input 1 - Output 1
• Serial Interface: -
• LED / LCD Display: -
• Control: -
• Special Features: EDID Management

Connectors

• Input: 2 x HDMI (Female)
• Output: 2 x HDMI (Female), TosLink (Optical) (Female), 3.5mm (Female)
• Control: -
• Power : 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 144x59.5x18mm (5.67x2.34x0.71in)
• Housing Material: Metal
• Net Weight: 0.208kg (0.46lb)
• Operating Temperature : 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 200x113x70mm (7.87x4.45x2.76in)
• Gross Weight: 0.328kg (0.72lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 2x2 HDMI 18G Matrix
• IR Remote Control with CR2025 Battery
• Multi-Country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38302
• EAN: 4002888383028
