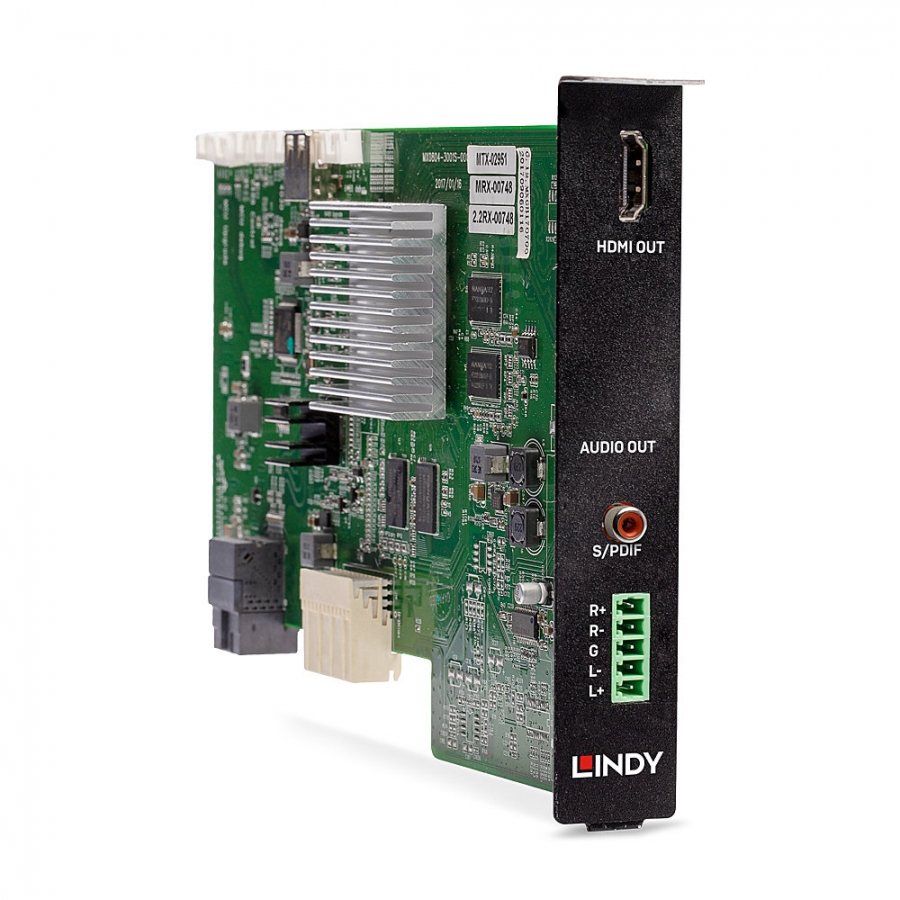

Single Port HDMI 18G Output Board

Specifications

• AV Interface: HDMI
• Interface Standards: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: HDMI: 3840x2160@60Hz 4:4:4 8bit
• EDID Pass Through: EDID Management
• HDCP Support: 2.2
• Supported Audio:
  • HDMI Audio Pass-through
  • Digital & Analogue Extraction to LPCM2.0
• Separate Audio Ports:
  • SPDIF
  • Analogue L/R
• IR Support: 38kHz
• CEC support: Yes
• Serial Interface: RS-232
• Special Features: -

Connectors

• Input: -
• Output: HDMI Type A (Female) Output Card, SPDIF (Female), Audio Terminal Blocks
• Control: -
• Power: -

Physical Properties

• Dimensions (approx.) WxDxH: 23.3x215x126.6mm (0.92x8.46x4.98in)
• Housing Material: Metal
• Net Weight: 0.222kg (0.49lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 10 - 90% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 310x52x180mm (12.2x2.05x7.09in)
• Gross Weight: 0.395kg (0.87lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, California Proposition 65

Package Content

• Single Port HDMI 18G Output Board

Purchasing Information

• No.: 38352
• EAN: 4002888383523
