Description

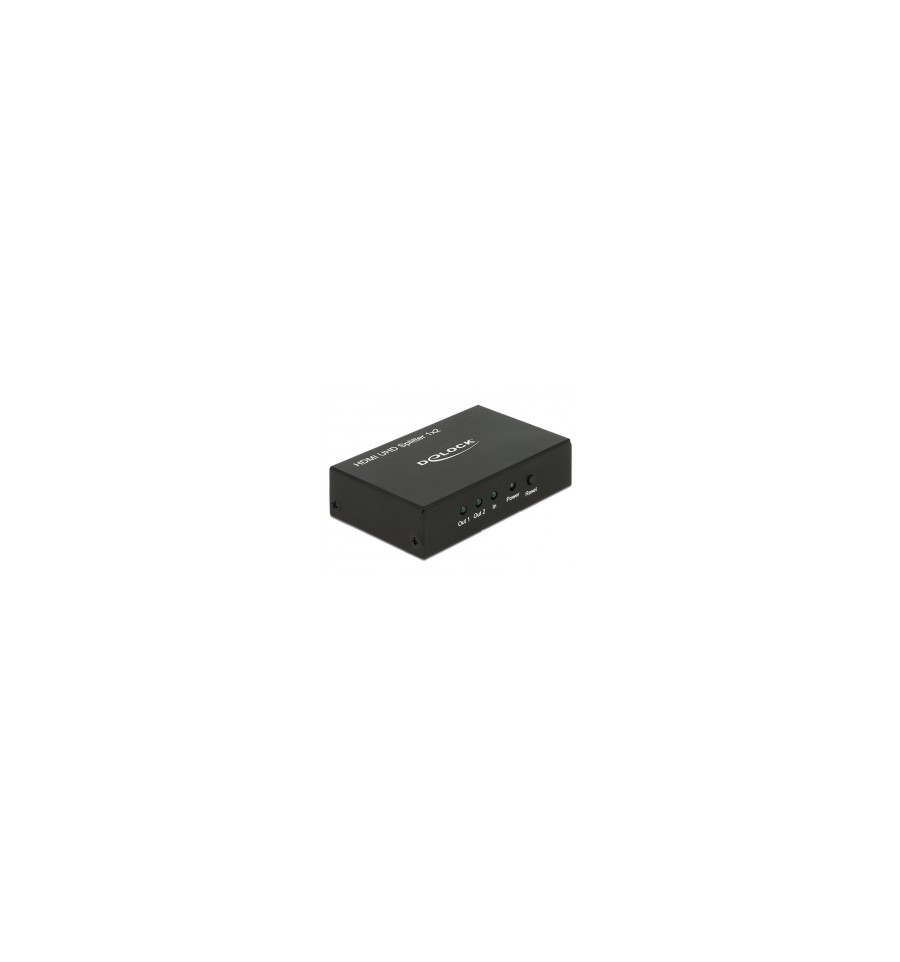

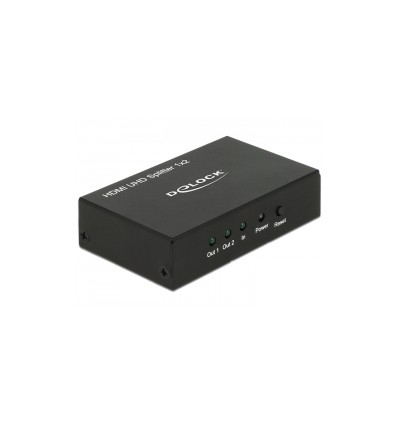

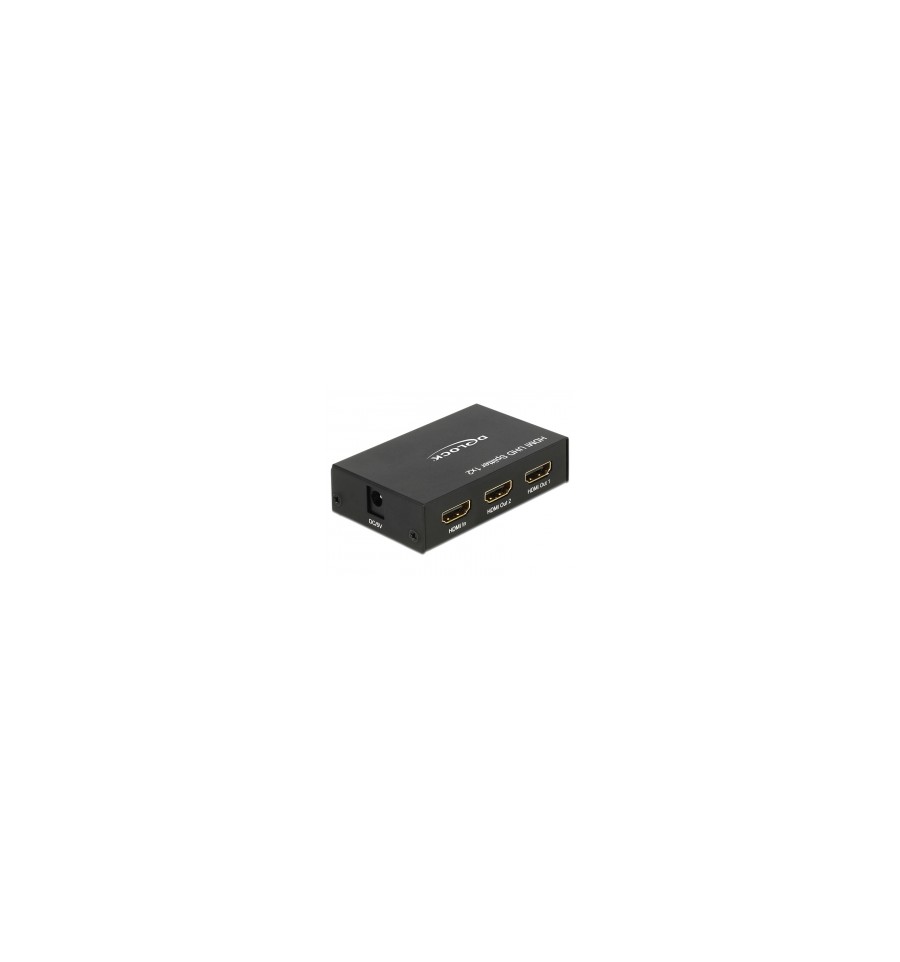

This splitter by Delock receives a HDMI signal from a PC or laptop and splits it to two connected displays. Thereby one HDMI connection can be used to operate two HDMI monitors.
7 dienas
Brīdinājums: Palikusis pēdējā vienība!
Availability date:
Description
This splitter by Delock receives a HDMI signal from a PC or laptop and splits it to two connected displays. Thereby one HDMI connection can be used to operate two HDMI monitors.
Specification
• Connector:
Input:
1 x HDMI-A 19 pin female
1 x DC 5 V power connector
Output:
2 x HDMI-A 19 pin female
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Reset button
• LED indicator
• Supports a resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps
• Power consumption: max. 2.4 W
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 80 x 51 x 20 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• A free HDMI female port
• HDMI cable
Package content
• HDMI Splitter
• USB power cable
• External power supply
• User manual
Package
• Retail Box
