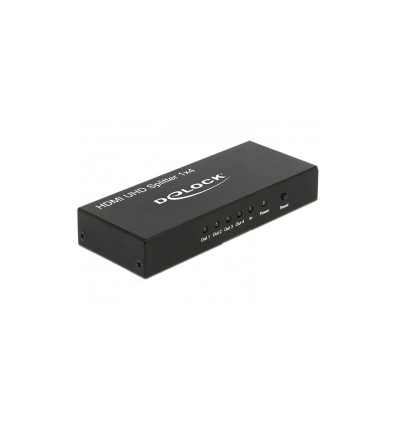

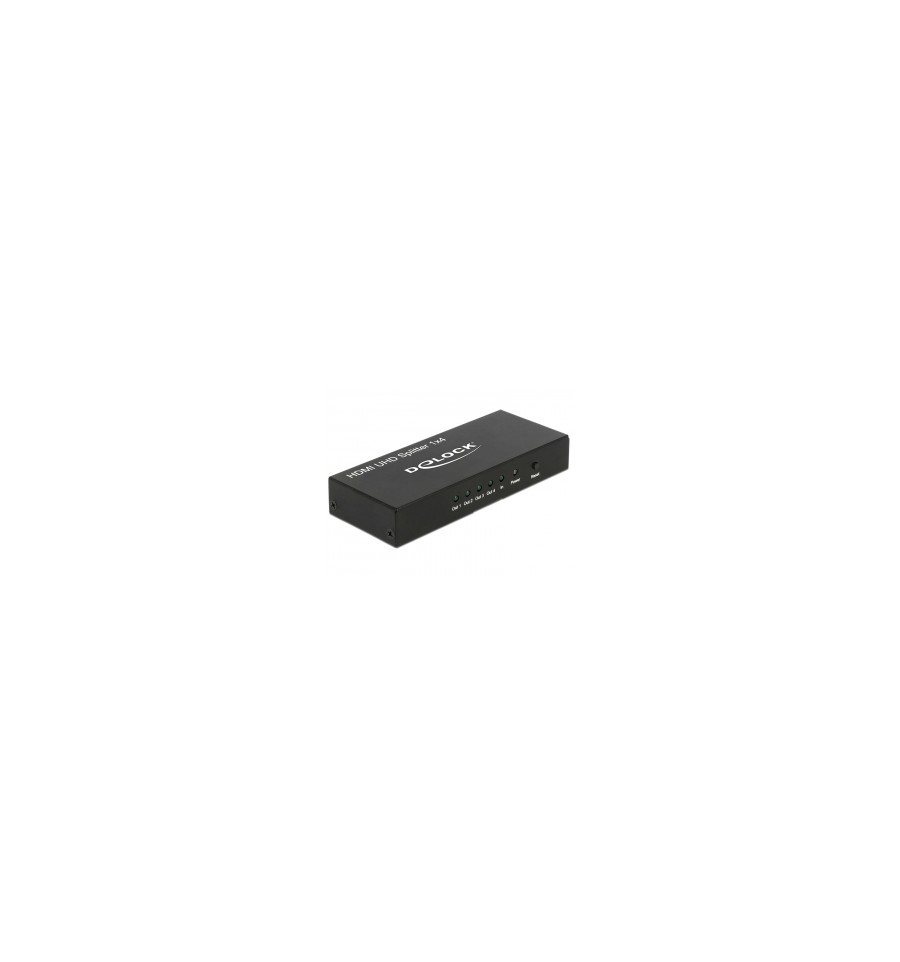

Delock HDMI UHD Splitter 1 x HDMI in - 4 x HDMI out 4K

DELOCK

18684

Jauns

Description
This splitter by Delock receives a HDMI signal from a PC or laptop and splits it to four connected displays. Thereby one HDMI connection can be used to operate four HDMI monitors.

More details

Description
This splitter by Delock receives a HDMI signal from a PC or laptop and splits it to four connected displays. Thereby one HDMI connection can be used to operate four HDMI monitors.

Specification
• Connector:
  Input:
    1 x HDMI-A 19 pin female
    1 x DC 5 V power connector

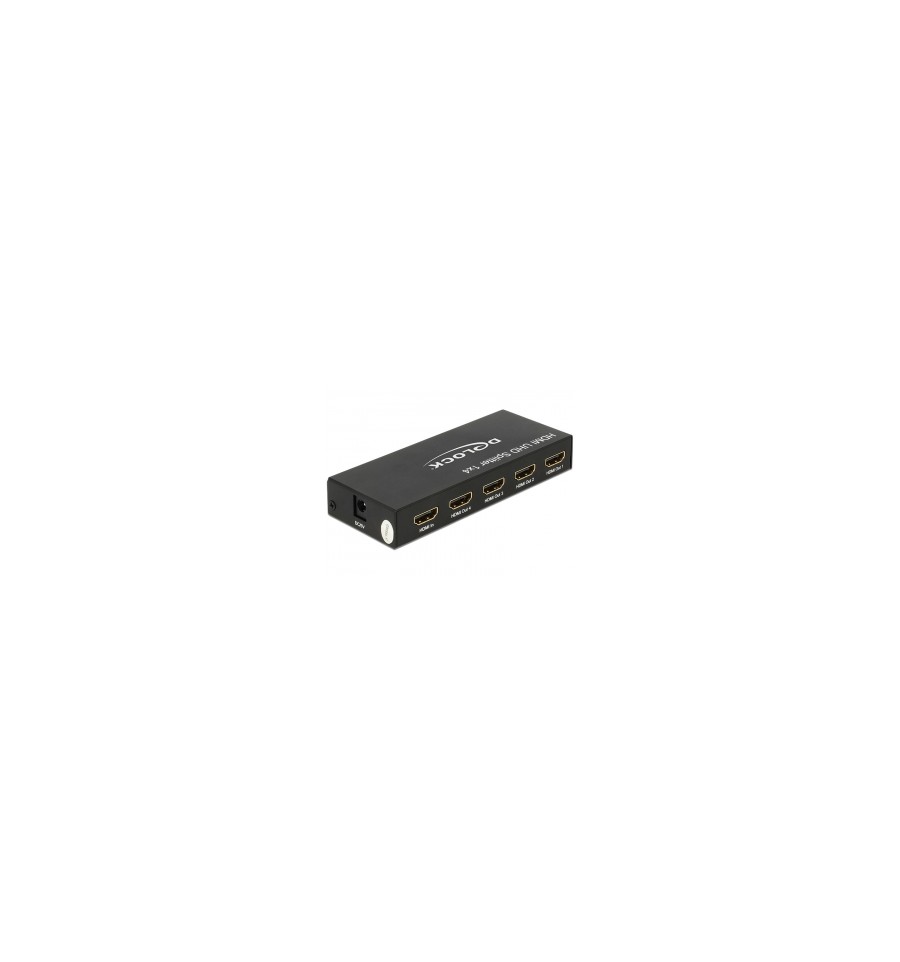

  Output:
    4 x HDMI-A 19 pin female
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Reset button
• LED indicator
• Supports a resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps
• Power consumption: max. 2.4 W
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 123 x 51 x 20 mm

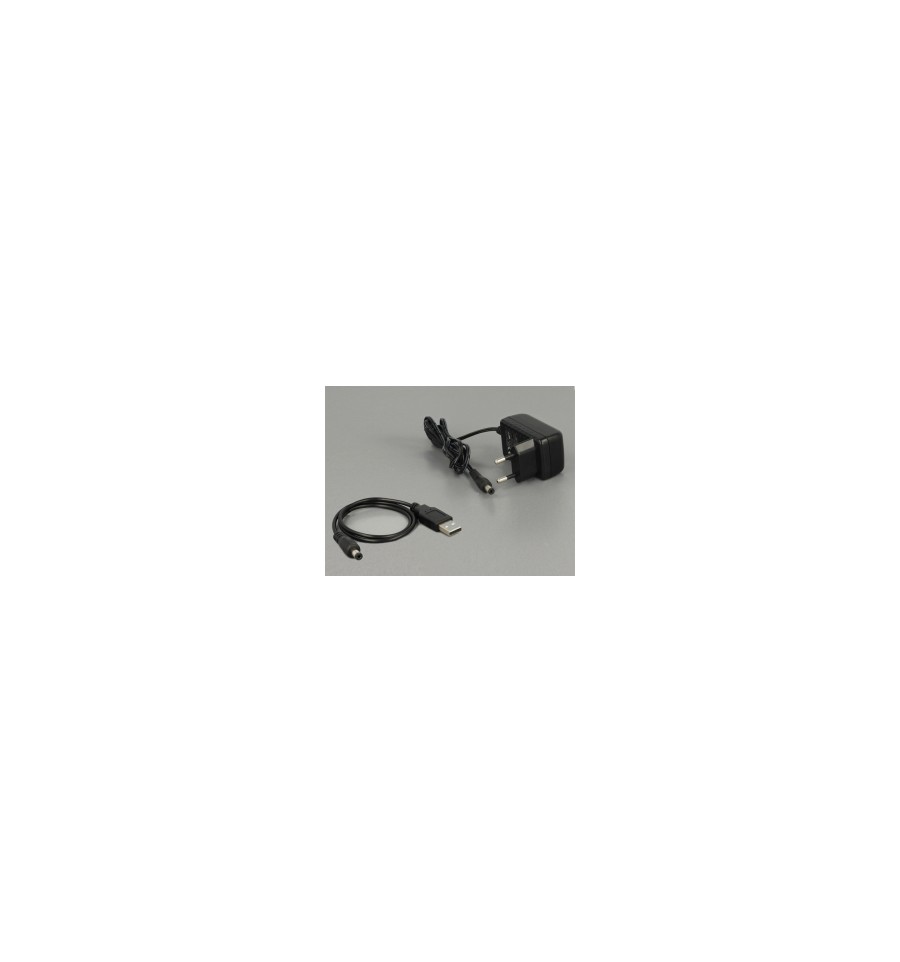

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 9 mm

System requirements
• A free HDMI female port
• HDMI cable

Package content
• HDMI Splitter
• USB power cable
• External power supply
• User manual

Package
• Retail Box
