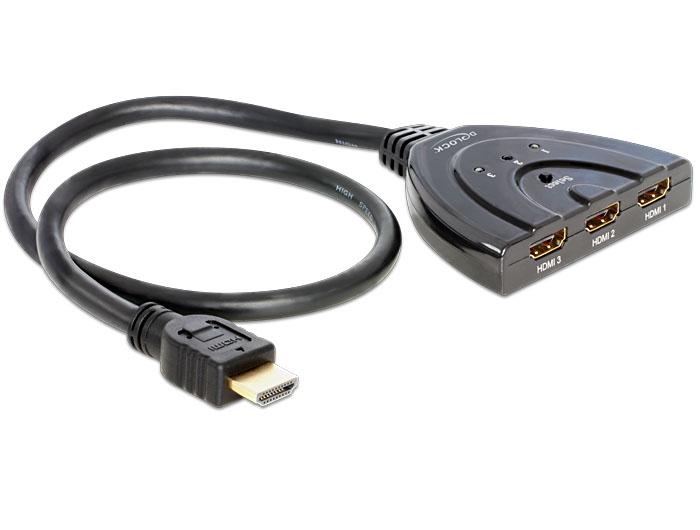

Delock HDMI 3 - 1 Switch bidirectional

Description:

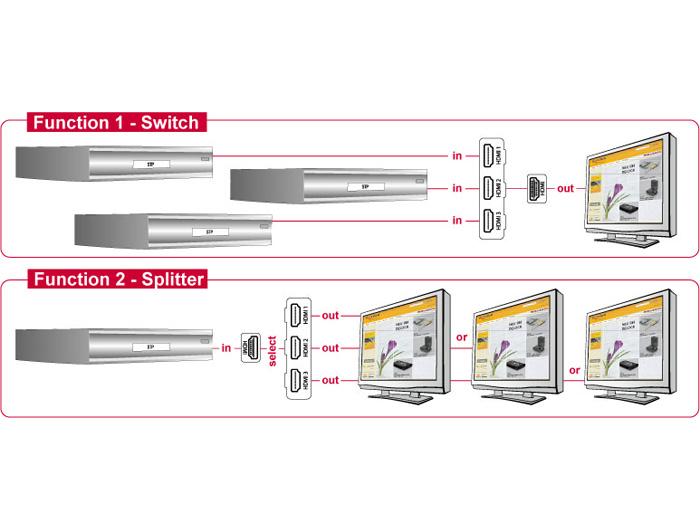

This HDMI switch by Delock is a manually bidirectional switch for connecting different HDMI devices. This switch offers two different application.

1. You can connect up to three HDMI devices to one monitor, TV or beamer etc. with HDMI input port. By using the button you can select which device should display the signal.
2. You can connect one HDMI device to up to three displays and select the monitor which should display the signal by using the button. (Simultaneous output to multiple screens is not possible)

Specification:
• Connector:
Function 1
Input: 3 x HDMI-A 19 pin female
Output: 1 x HDMI-A 19 pin male
Function 2
Input: 1 x HDMI-A 19 pin male
Output: 3 x HDMI-A 19 pin female
• High Speed HDMI
• Resolution up to Full-HD 1080p
• HDMI port selection by button
• LED indicators for active HDMI port
• Supports VGA, SVGA, XGA, UXGA mode
• No external power supply needed
• HDCP pass through
• Length incl. connector: ca. 60 cm
• Plug & Play

System requirements:


Package content:
• HDMI bidirectional switch
• User manual
