ASUS ROG-MATRIX-RTX4090-P24G-GAMING 24GB GDDR6X HDMI DP

Manufacturer: ASUS

Kods 90YV0ID7-M0NM00

Condition: Jauns

Vairāk informācijas

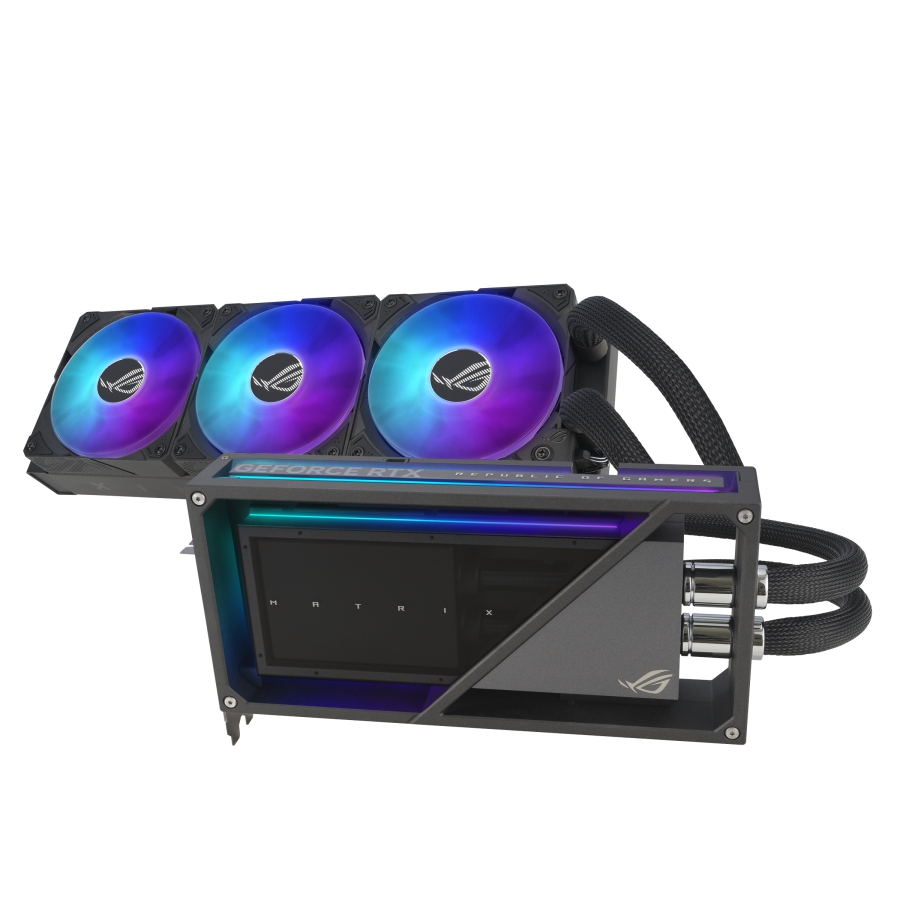

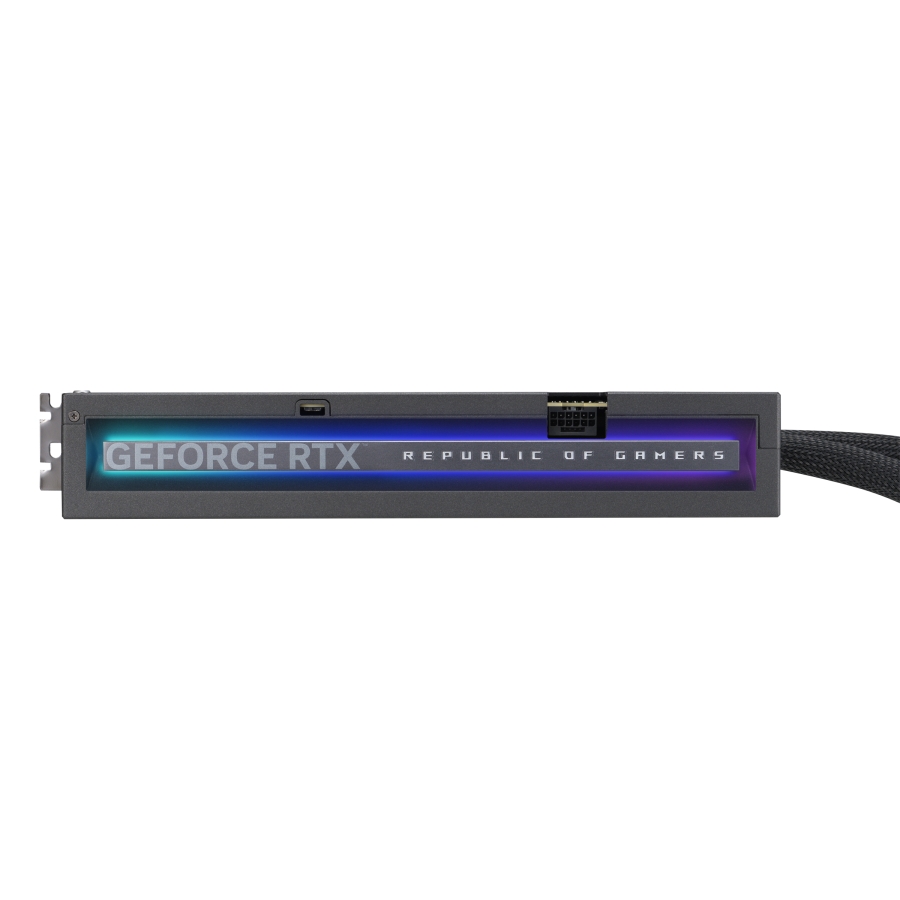

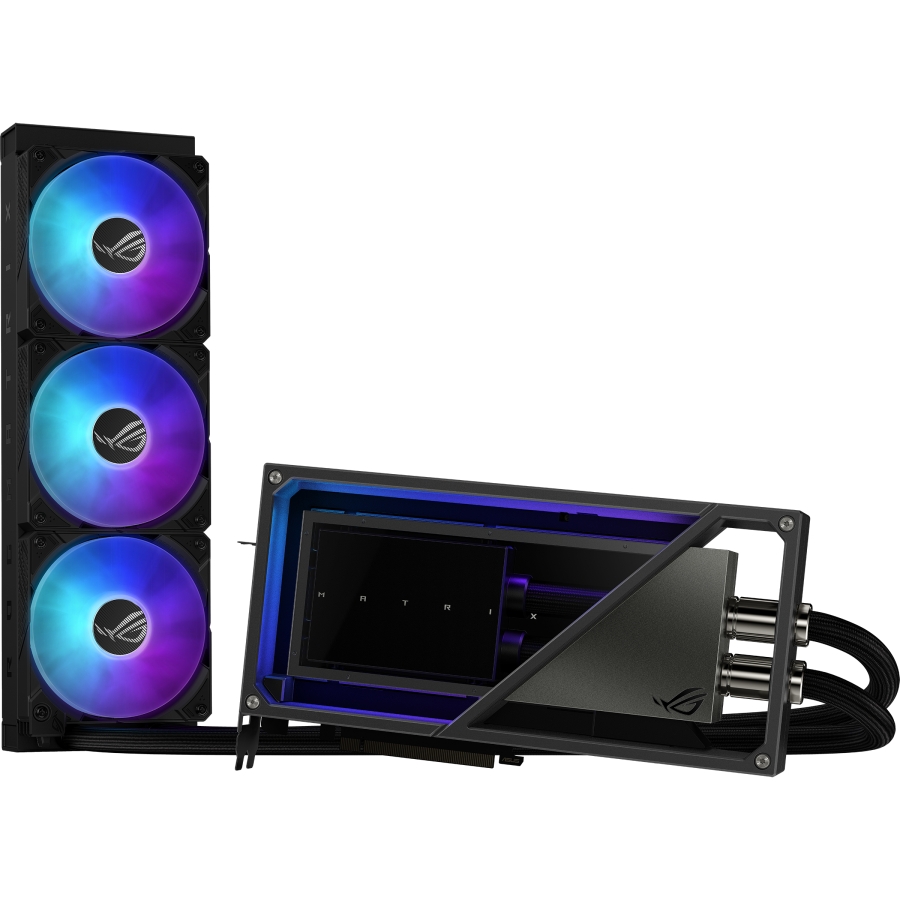

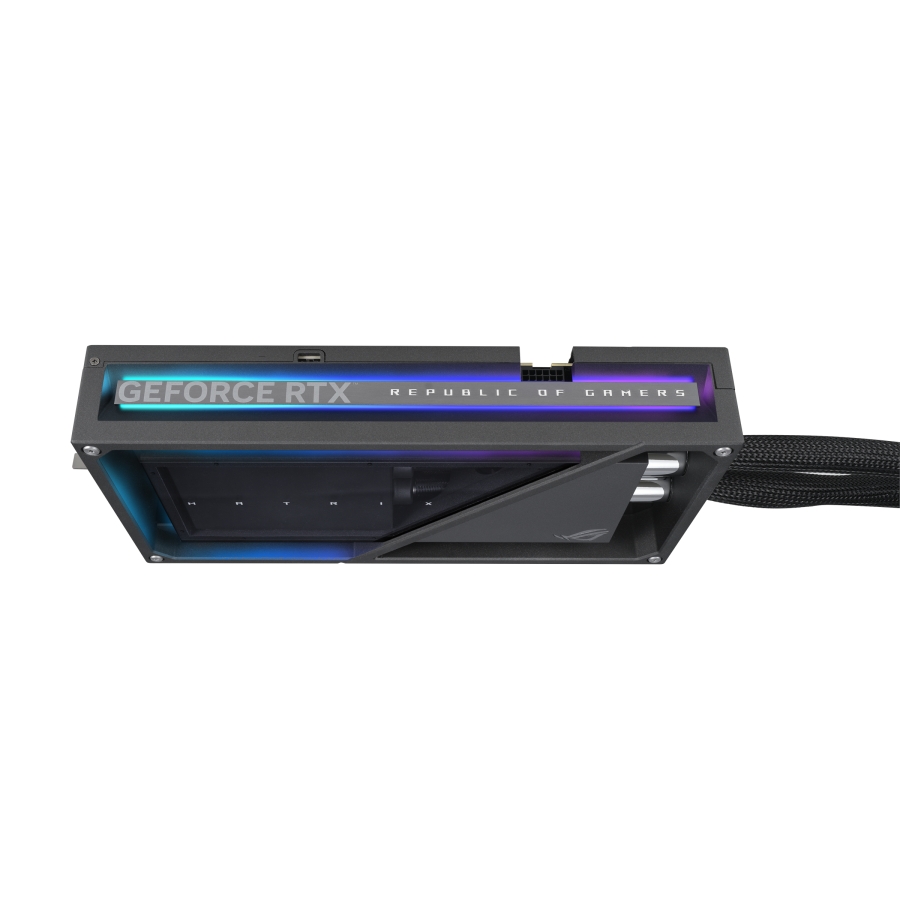

ROG Matrix GeForce RTX™ 4090
The ROG Matrix GeForce RTX™ 4090 delivers absolute pinnacle performance while maintaining quiet thermal operation, via liquid metal thermal compound on the GPU die, a premium 360 mm AIO cooler and a stunning hollow metal frame design.

BREAKTHROUGH METALLURGY
The Matrix GeForce RTX 4090 features a metal frame design with a semi-hollow chamber where the main coldplate, PCB and pump shroud are protected by a larger aluminum body. Aura Sync lighting effects pair with this distinctively minimalist exoskeleton to deliver a modern style that you won’t find anywhere else.

LIQUID METAL GPU COOLING
Harness the incredible thermal efficiency of liquid metal on the GPU die to achieve breakthrough performance. With an exclusive production method that securely limits the liquid to the die area, this graphics card can be mounted in any orientation.

Harness the incredible thermal efficiency of liquid metal on the GPU die to achieve breakthrough performance. With an exclusive production method that securely limits the liquid to the die area, this graphics card can be mounted in any orientation.

LARGER COPPER PLATE
The full-coverage copper coldplate covers all the heat producing components on the PCB, allowing the radiator to efficiently dissipate the heat without the need for an additional fan and result in quieter operation.

POWERFUL PUMP
A customized and powerful pump optimized for water flow, feeding ample coolant through 700 mm of tubing to the radiator to maximize cooling on the die, keeping the ROG Matrix GeForce RTX 4090 running at peak efficiency.

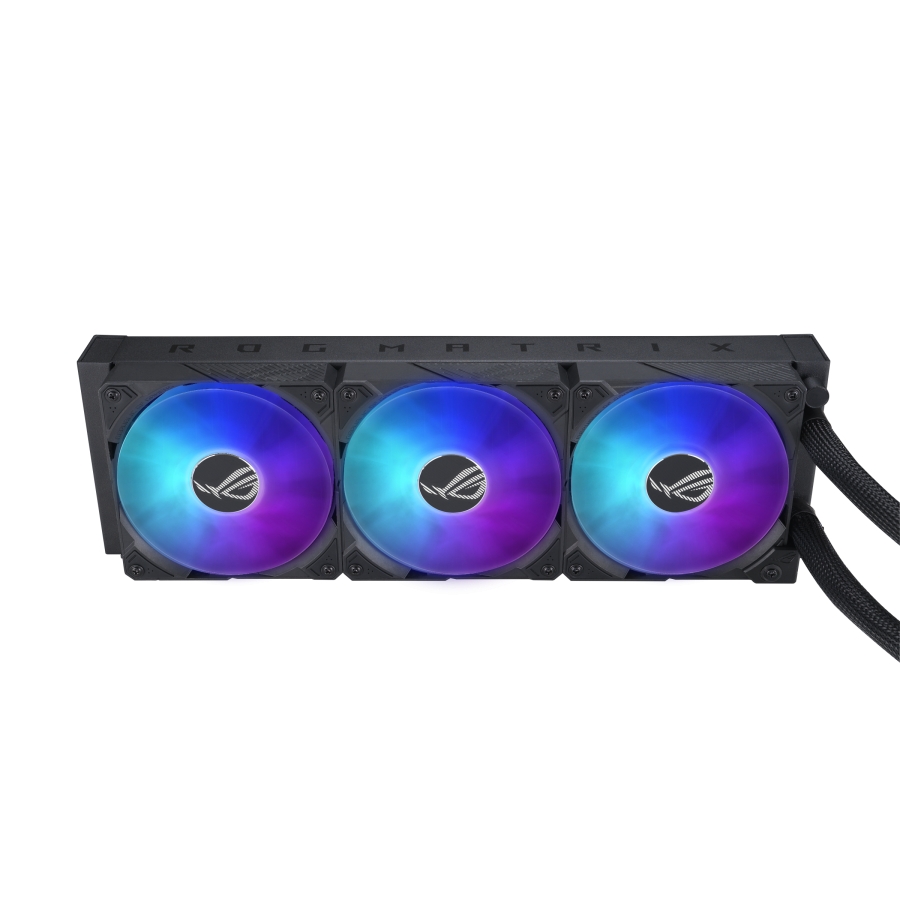

360 MM RADIATOR
An extra-thick 360 mm radiator combines forces with a trio of high-end fans to ensure excellent heat dissipation.

DAISY-CHAINABLE FANS
The daisy-chainable fans snap together with a magnetic connector that links the fans and transmits control signals and power, making installation and cable management a breeze.

AURA SYNC
With indirect Aura ARGB lighting, the ROG Matrix provides endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.

CUSTOM SOFTWARE FOR EASY MONITORING
Embedded sensors across the VRMs, chokes and memories collect data in the Thermal Map, empowering you to check real-time temperatures in each area and to easily adjust system settings for optimized performance.

Power Detector+ can detect anomalies across any of the six power pins from the 12VHPWR cable. If a fault is detected, you’ll be notified immediately to reseat the power cable accordingly.

The mileage feature tracks use at different power levels, so you can keep an eye on what kind of load you’ve used across multiple game sessions.

FANCONNECT II
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

PREMIUM POWER DELIVERY
Digital power control, an array of high-current power stages and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.

Auto−Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

REINFORCEMENTS
A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to help prevent corrosion in humid climates and to provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.

NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.

Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4090
Maximum resolution	7680 x 4320 pixels
CUDA	Jā
Processor frequency	2670 MHz
Parallel processing technology support	Not supported
CUDA cores	16384
Processor frequency (OC mode)	2700 MHz
Maximum displays per videocard	4
Discrete graphics card memory	24 GB
Graphics card memory type	GDDR6X
Memory bus	384 bit
Data transfer rate	21 Gbit/s
Interface type	PCI Express 4.0
HDMI ports quantity	2
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a
TV tuner integrated	Nē
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	Nē
Virtual Reality (VR) ready	Jā
HDCP	Jā
HDCP version	2.3
NVIDIA G-SYNC	Jā
NVIDIA Ansel	Jā
Cooling type	Hybrid/All-in-one
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Bracket height	Full-Height (FH)
Number of slots	2.5
Illumination	Jā
Illumination colour	Multi
Product colour	Black
Minimum system power supply	1000 W
Supplementary power connectors	1x 16-pin
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Depth	286.5 mm
Height	148.3 mm
Width	24.5 mm
Radiator width	40 cm
Radiator depth	12 cm
Radiator height	6.5 cm
Package type	Box
Manual	Jā
