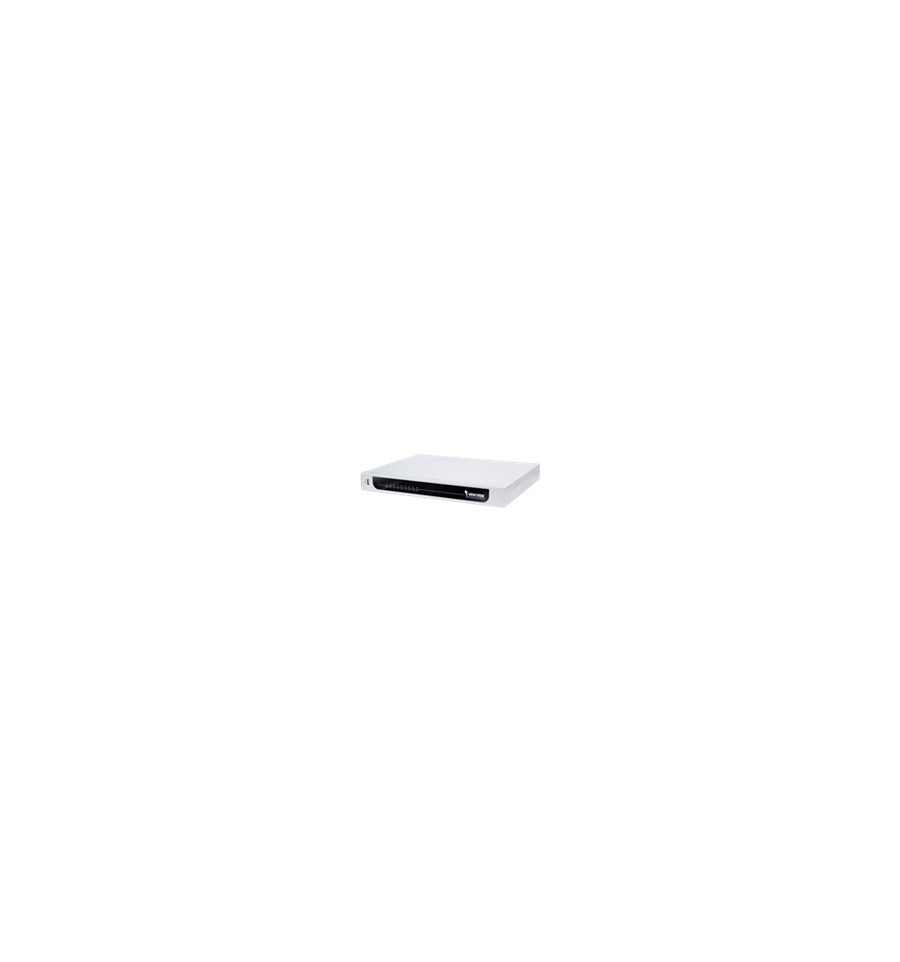

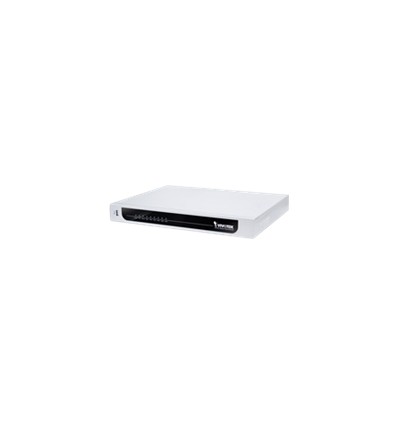

9-kanālu IP tīkla videoierakstu iekārta NR7401

Features * Simultaneous Monitoring and Recording on 9 channels * Gateway Between VIVOTEK Network Cameras and Data Network * Supports VIVOTEK 6000- and 7000-series Network Cameras * Built-in 802.3af Compliant PoE * Local Video Recording with Minimal Bandwidth Impact * Camera Management with Automatic Camera Installation and Configuration * Video Proxy Server for Live and Recorded Video * External USB Storage for Video Backup
Recording Policy/ Alarm recording /Scheduled recording/Manual recording

Connectors 1 x (1 WAN ports) 4 x (4 LAN ports) USB socket for backup Terminal block: 4x Digital Input 1x Relay Output 1x Power Output ( 12V 1A )
Pan / Tilt / Zoom Pan/tilt/zoom control of VIVOTEK cameras
History Playback Playback of recorded media with time navigations Networking Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS Alarm and Event Management 1 D/I & 4 D/O for external sensor and alarm
Event notification using HTTP, SMTP, FTP
Security Multi-level user access with password protection
IP address filtering
Users Live viewing for up to 10 clients
Dimensions Depth: 360mm Width: 280mm Height: 43.8mm Weight Net: 3100 g
LED Indicator System power and status indicator System activity and network link indicator
Power Power consumption: Max. 21 W
Power consumption: Max. 35 W (with 4 PoE cameras)
802.3af Power-over-Ethernet (Class 1) Approvals CB CE C-Tick FCC VCCI
Operating Environments Temperature: 0 ~ 50 °C (32 ~ 122 °F) Humidity: 20% ~ 80%
Viewing System Requirements OS: Microsoft Windows 2000 / XP / Vista
Browser: Internet Explorer 7.x or above VLC: 10.5 or above QuickTime: 6.5 or above Cell phone: 3GPP player Real Player 10.5 or above
