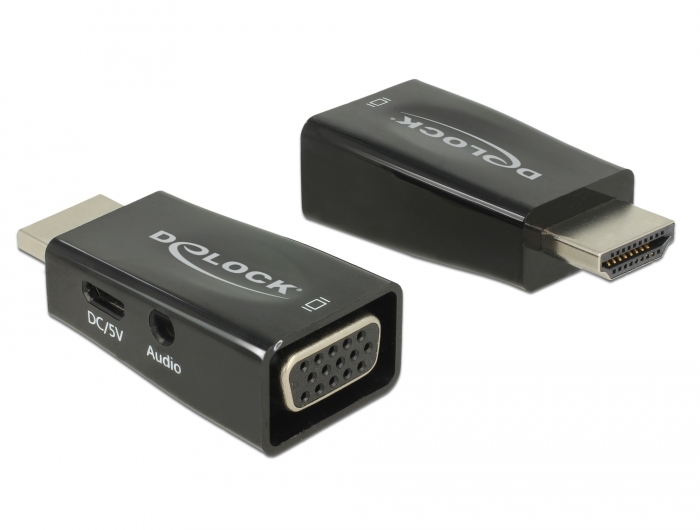

Delock Adapter HDMI-A male > VGA female with Audio

Kods 65901

Condition: Jauns

Vairāk informācijas

This adapter by Delock can be used to connect e.g. a VGA monitor to a free HDMI interface of the system. Furthermore, it is possible to transfer the audio signal via the Stereo jack female port.

System requirements:
• A free HDMI-A female
• Monitor with a free VGA interface

Specification:
• Connectors:
  1 x High Speed HDMI-A 19 pin male >
  1 x VGA 15 pin female
  1 x 3.5 mm 3 pin stereo jack female
  1 x USB 2.0 Type Micro-B female (optional for power supply)
• Chipset: Algotek AG6200A
• High Speed HDMI specification
• VGA connector without nuts
• Signal direction: HDMI input > VGA output
• Resolution up to 1920 x 1200 @ 60 Hz
(depending on the system and the connected hardware)
• Supports only one connection to a VGA monitor
• Colour: black
• Dimensions (LxWxH): ca. 47 x 23 x 14 mm
• OS independent, no driver installation necessary

Package content:
• Adapter HDMI to VGA

Data sheet:
http://www.delock.de/produkt/65901/pdf.html?sprache=en
