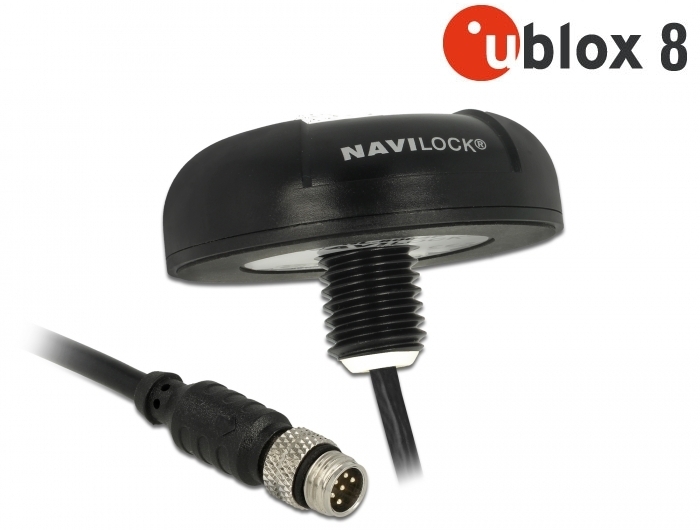

Navilock NL-82003P M8 Seriell Multi GNSS UDR Empfänger u-blox NEO-M8U 0.5 m

Kods 62759

Condition: Jauns

Vairāk informācijas

The M8 serial multi GNSS UDR receiver by Navilock based on u-blox NEO-M8U chipset has a built-in active antenna as well as high-sensitivity sensors such as a 3D accelerometer and a 3D gyroscope. In conjunction with a laptop, a reliable position determination is also possible when the GNSS signal is interrupted. The M8 universal connector is waterproof and enables the connection of optional connecting cables with many different connectors. The NL-82003P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.

System requirements:
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6, Mac OS X
• M8 connection cable

Specification:
• Connector: 1 x M8 Navilock waterproof connecting plug (USB or serial cable are optional available)
• Chipset: u-blox NEO-M8U
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0.5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO: E1, 1575.4200 MHz
QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Supports UDR from NMEA 4.1
• Auto Baud Rate up to 115200 bps
• PPS signal on pin 6 (LVTTL 3,3 V)
• Update rate: up to 20 Hz
• Sensibility max. -160 dBm
• IPX7 protection class
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 - 48 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 0.5 m
• Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm

Microsoft Sensor and Location Platform (Website)
• Profit from Windows applications (e.g. weather, maps, etc)
• Supporting the GNSS location platform API (32 bit)

Package content:
• M8 serial receiver
• Mounting material: stainless steel nut and washer
• Navilock support CD incl. driver and user manual
