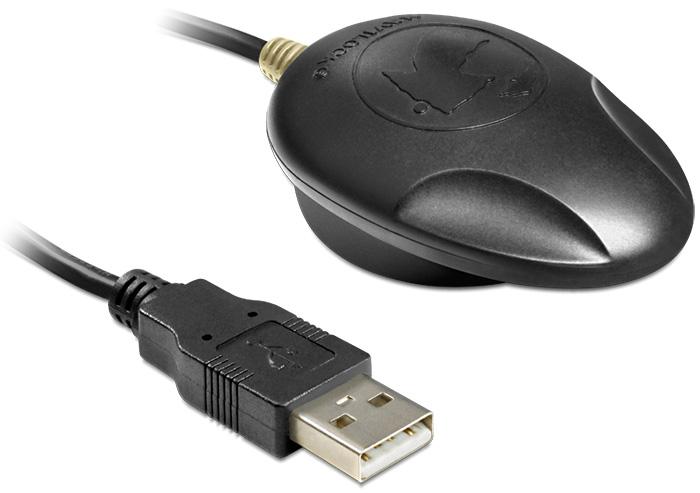

Navilock NL-6002U USB GPS Receiver u-blox NEO-6P

Description:
The USB 2.0 GPS receiver based on u-blox 6 NEO-6P module works very precise and it is ideal for positioning tasks because of the integrated PPP (Point Positioning Precision) function. PPP combined with SBAS allows high-precision applications in surveying, maritime and agriculture (precision farming).

Specification:
• Module: u-blox NEO-6P
• PPP (Precision Point Positioning)
• Hybrid chipset for GPS / SBAS (WAAS, EGNOS, MSAS)
• Receiver with USB 2.0 type-A connector
• Intergrated anti-jamming technology
• Integrated A-GPS technology with AssistNow online
• Internal patch antenna
• Frequency: L1, 1575,42 MHz
• Accepts the signals of up to 50 satellites at the same time
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG, GLL
• Auto Baud Rate up to 115200 bps (default 38400 bps)
• Update rate: up to 1 Hz
• Datum: WGS 84
• Sensibility max. –160 dBm
• IPX6 protection class
• Magnetic, non-slip on the bottom
• LED-indicator for reception status
• Power consumption: 60 mA @ 5 V
• Operating temperature: -20 °C to +65 °C
• Cold start in ca. 38 seconds
• Hot start in ca. 1 second
• Cable length: ca. 1.5 m
• Positioning accuracy:
GPS: 2.5 m
SBAS: 2.0 m
SBAS + PPP: < 1 m (2D, R50)
SBAS + PPP: < 2 m (3D, R50)
Demonstrated under following conditions: 24 hours, stationary,
first 600 seconds of data discarded. HDOP < 1.5 during measurement
period, strong signals. Continuous availability of valid SBAS correction
data during full test period.
• Dimensions (LxWxH): 65 mm x 45 mm x 22 mm
• Power supply: 5 V DC USB

System requirements:
• Windows 2000/XP/Vista/7/8/10/CE, Windows Mobile 4/5/6, Linux 2.4.x
• PC or notebook with a free USB port

Package content:
• NL-6002U receiver
