> >>Delock DC Splitter Cable 5.5 x 2.1 mm 1 x female to 2 x male screwable

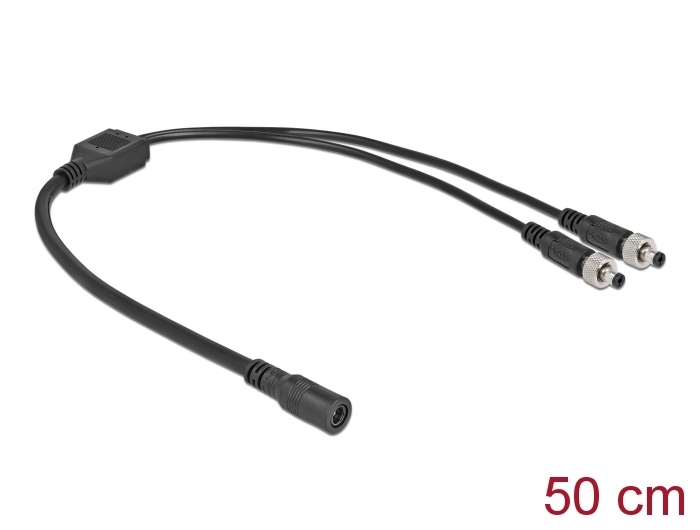

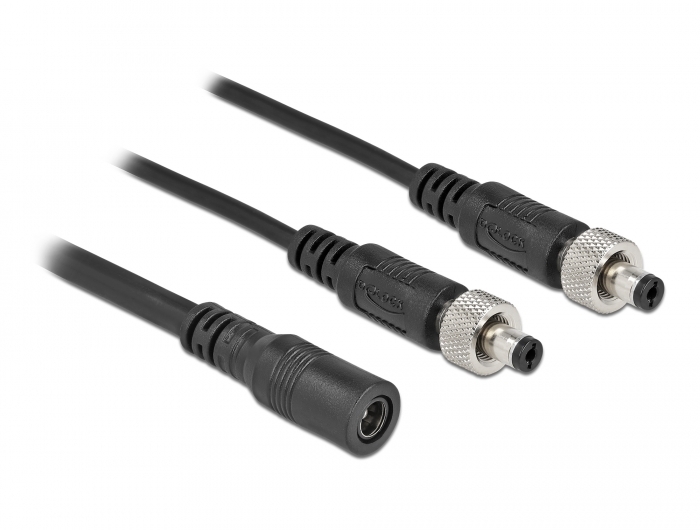

Delock DC Splitter Cable 5.5 x 2.1 mm 1 x female to 2 x male screwable

Delock DC Splitter Cable 5.5 x 2.1 mm 1 x female to 2 x male screwable

DELOCK

86571

Jauns

This splitter cable by Delock can be used for the connection of two devices which need low voltage e. g. cameras or LED-stripes to a power supply with DC connector. The screw type connector on the plugs supports a tight connection with the suitable DC jacks.
System requirements:
• Power supply with DC 5.5 x 2.1 mm male
Specification:
• Connectors:
  1 x DC 5.5 x 2.1 mm female
  2 x DC 5.5 x 2.1 mm male screwable
• Maximum current: 2 A
• Voltage: max. 30 V
• Cable gauge: 21 AWG
• Cable jacket material: PVC
• Nickel-plated contacts
• Screw type: M8 x 0.75
• Length incl. connectors: ca. 50 cm
Package content:
• Splitter cable
Data sheet:
http://www.delock.de/produkt/86571/pdf.html?sprache=en
