Delock 4 Port USB 2.0 Isolator Hub with 5 kV Isolation for data lines

Delock 4 Port USB 2.0 Isolator Hub with 5 kV Isolation for data lines

DELOCK

64226

Jauns

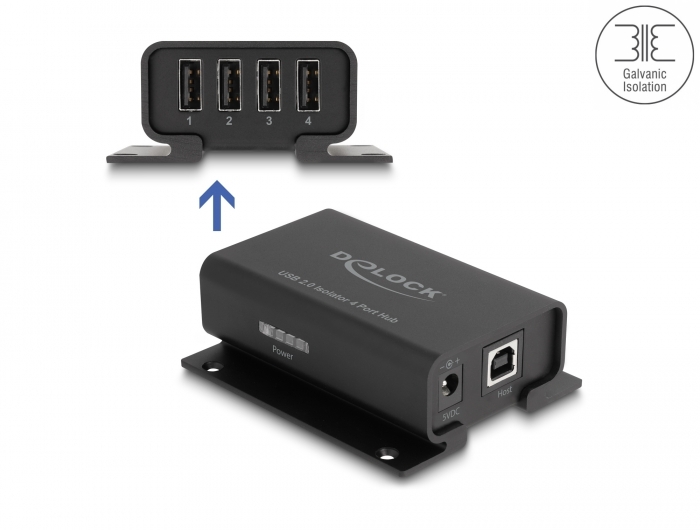

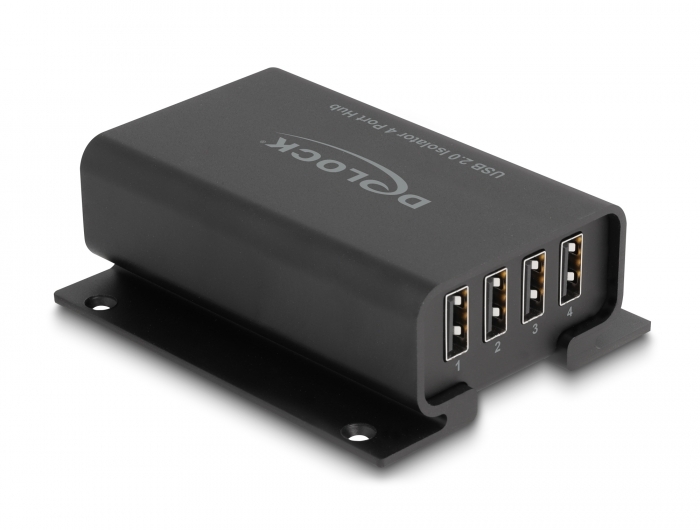

The USB hub isolator by Delock expands the host by four USB Type-A ports and separates the electrical connection of the data lines between Host-PC and USB devices. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low-, Full and High-Speed.

Converter for voltage supply
A DC to DC converter inside the USB isolator allows the separation between host and device of the USB power lines.


The sturdy metal housing has four holes for mounting e.g. to machines and is therefore also suitable for industrial applications.

Secure stand
The rubber pads on the bottom prevent the hub from slipping when, e.g. a USB stick or USB cable is plugged in.
System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC or laptop with a free USB port
Specification:
• Connectors:
  1 x USB 2.0 Type-B female
  4 x USB 2.0 Type-A female
  1 x DC jack
• Data transfer rate up to 480 Mbps
• Bootable
• LED indicator for power
• 5 kV optical isolation for data
• 3 kV isolation for power
• Power supply: Bus-powered or Self-powered, Bus-powered up to 300 mA
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: 0 °C ~ 60 °C
• Dimensions (LxWxH): ca. 90 x 73 x 31 mm
• Robust metal housing
• Colour: black

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5.0 V / 2.0 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

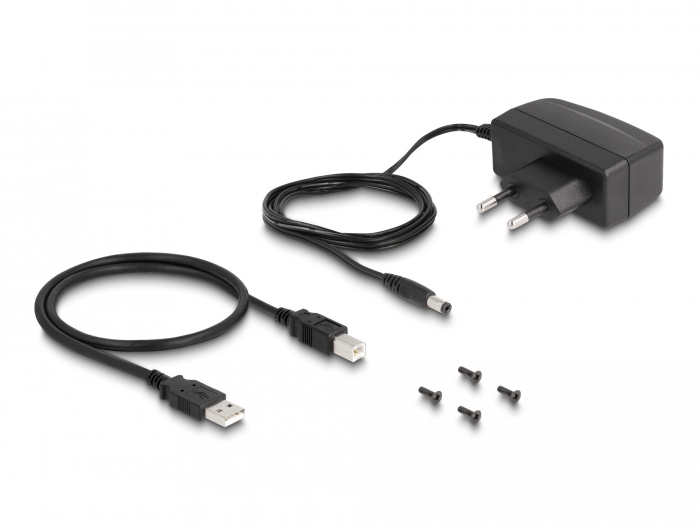

Package content:
• Isloator
• 1 x cable USB 2.0 Type-B male to USB 2.0 Type-A male ca. 60 cm
• Power supply
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/64226/pdf.html?sprache=en
