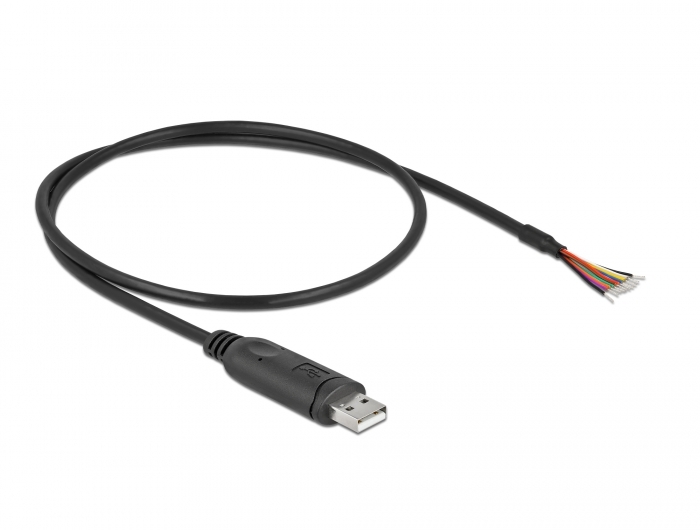

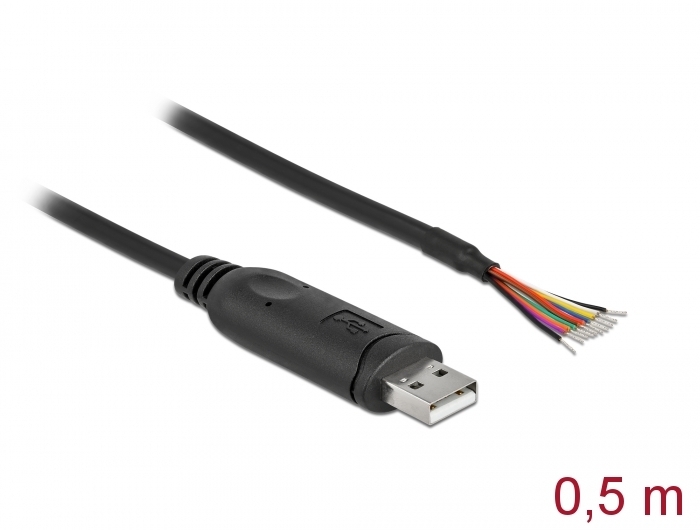

Delock Adapter cable USB 2.0 Type-A to Serial RS-232 with 9 open wires + Shielding 0.5 m

Kods 90415

Condition: Jauns

Vairāk informācijas

This USB 2.0 Type-A to serial RS-232 adapter cable by Delock is suitable as a connection cable between a device with USB 2.0 and a device with RS-232 port. Due to the tinned open cable ends, the connection can be made directly to the RS-232 device connector or flexible to various terminal blocks. In addition, it can be used to produce individual adapters and cable assemblies.

System requirements:
• Mac OS 10.13 or above
• Linux Kernel 2.6 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2012 / Server 2012R2 / Server 2016
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
1 x USB Type-A male
1 x Serial RS-232 10 x open wires (tinned)
• Chipset: FTDI FT232R
• Compatible to UHCI / OHCI / EHCI controller
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Data transfer rate up to 230.4 Kbps
• Pinout: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND + Shielding
• ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
• Cable diameter: ca. 5 mm
• Cable gauge: 26 AWG
• Conductor: stranded copper wire
• Isolation: PVC
• Cable length incl. connectors: ca. 0.5 m
• Colour: black
• Operating temperature: -10 °C ~ 80 °C

Package content:
• USB Type-A to 1 x serial Adapter

Data sheet:
http://www.delock.de/produkt/90415/pdf.html?sprache=en
