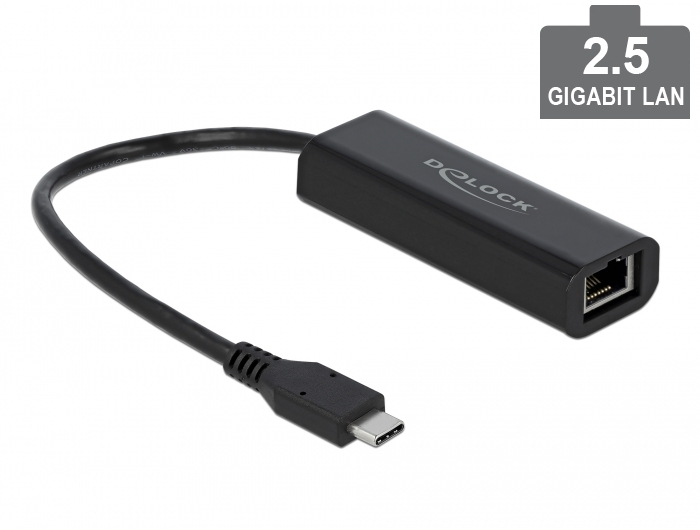

Delock Adapter USB Type-C™ male to 2.5 Gigabit LAN

Delock Adapter USB Type-C™ male to 2.5 Gigabit LAN

DELOCK

66298

Jauns

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
System requirements:
• Linux Kernel 4.2 or above
• Mac OS 10.14 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Specification:
• Connectors:
  1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male >
  1 x 2.5 Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8156
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Compatible with:
  IEEE 802.3u: 100BASE-TX
  IEEE 802.3ab: 1000BASE-T
  IEEE 802.3bz: 2.5GBASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and
  half duplex operation with back-pressure flow control
• Supports 9k Jumbo Frames
• LED indicator for link and activity
• USB bus powered
• Colour: black
• Dimensions (LxWxH): ca. 75 x 25 x 11 mm
• Cable length without connectors: ca. 15 cm
Package content:
• USB Type-C™ 2.5 Gigabit LAN adapter
• User manual
Data sheet:
http://www.delock.de/produkt/66298/pdf.html?sprache=en
