Delock Adapter USB 2.0 Type-A > 1 x Serial DB9 RS-232

Delock Adapter USB 2.0 Type-A > 1 x Serial DB9 RS-232

DELOCK

64073

Jauns

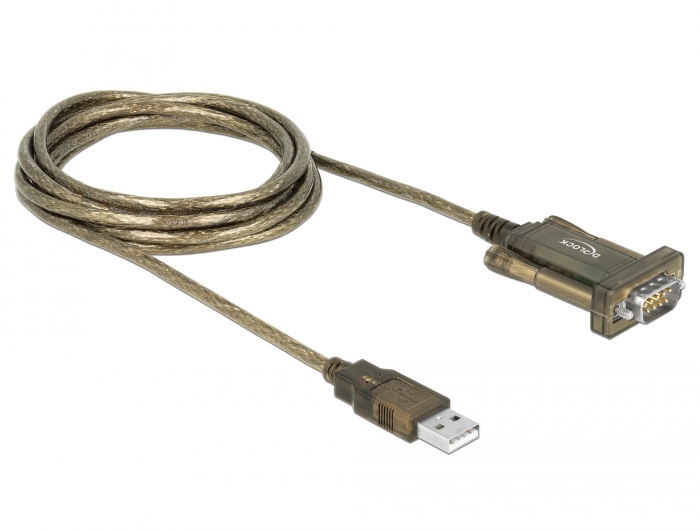

This USB Type-A to serial adapter by Delock provides an RS-232 port for meters, POS systems, printers, modems, IoT devices, etc.

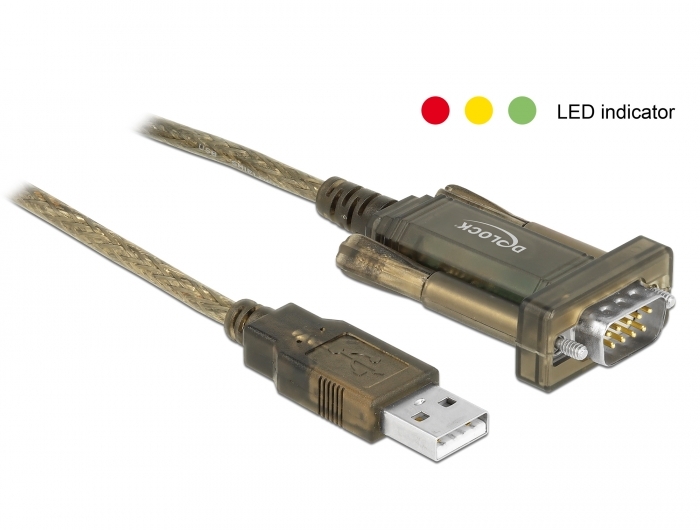

LED indicator
Three LEDs indicate at the RS-232 port the current transmission and reception status as well as the USB power supply.

Easy installation
The integrated driver software makes the adapter quick and easy to install on the computer.
System requirements:
• Chrome OS
• Linux Kernel 3.3 or above
• Mac OS 10.9.5 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Specification:
• Connectors:
  1 x USB 2.0 Type-A male
  1 x serial RS-232 DB9 male
• Chipset: Prolific 2503
• Data transfer rate up to 1 Mbps
• Parity: even, odd, none, mark, space
• Stop bit: 1, 1.5, 2
• Data bit: 5, 6, 7, 8
• FIFO: 512 byte
• LED colour: red, yellow, green

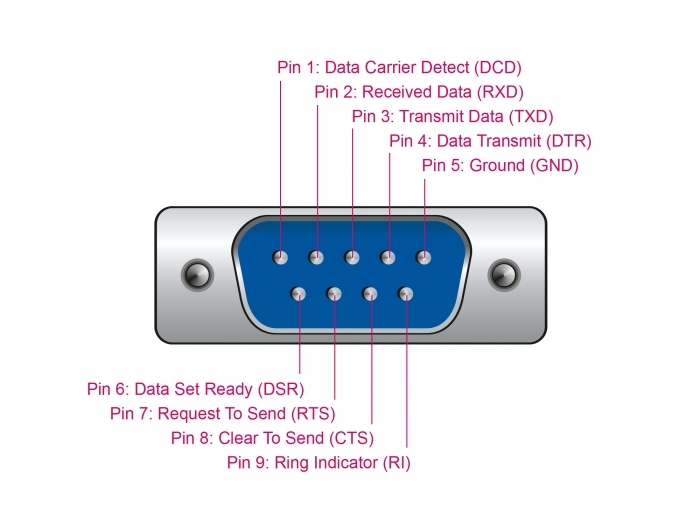

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Length incl. connectors (L): ca. 2 m
Package content:
• USB 2.0 to 1 x serial adapter
• User manual
Data sheet:
http://www.delock.de/produkt/64073/pdf.html?sprache=en
