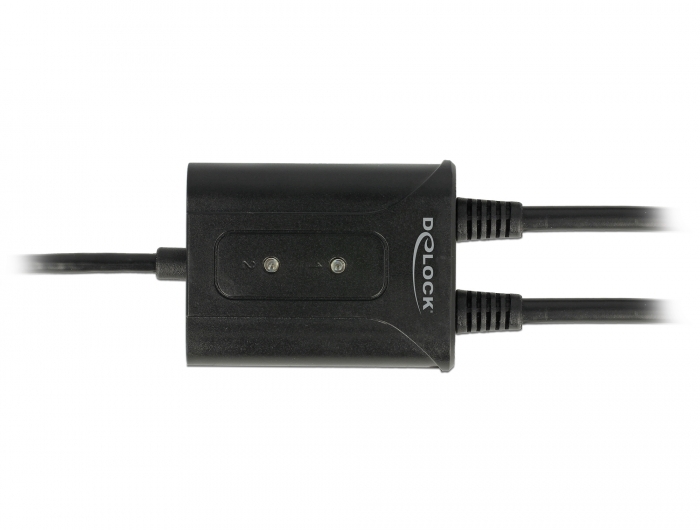

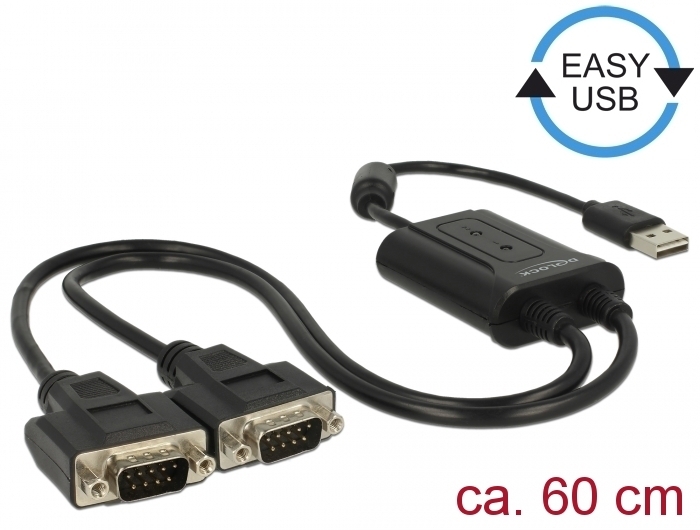

Delock USB 2.0 to 2 x serial RS-232 adapter
Previous Next

Delock USB 2.0 to 2 x serial RS-232 adapter

DELOCK

63950

Jauns

This EASY-USB Type-A to serial adapter by Delock provides two RS-232 DB9 interfaces for printers, measuring instruments, controllers, IoT devices etc.
System requirements:
• Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Specification:
• Connectors:

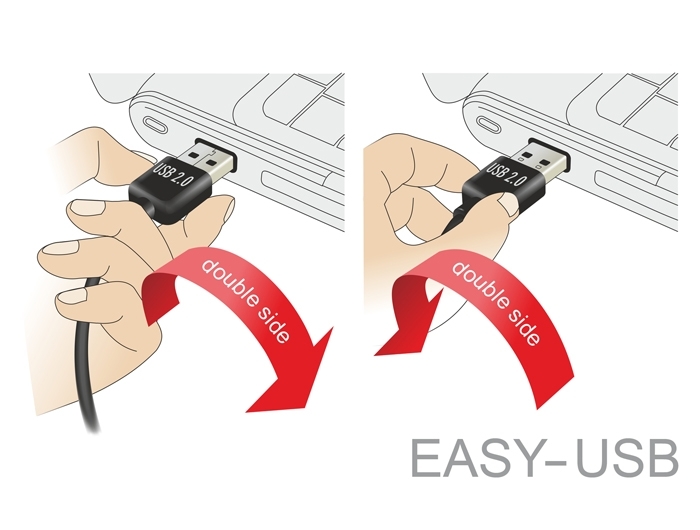

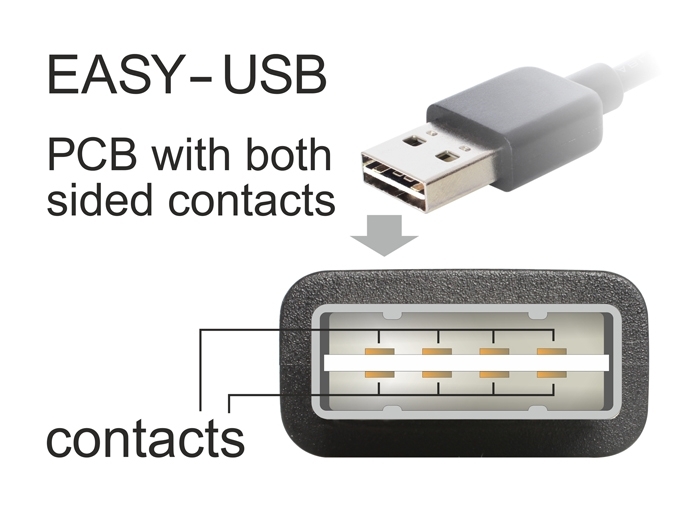

  1 x EASY-USB 2.0 Type-A male >
  2 x serial RS-232 DB9 male with nuts
• Chipset: ASIX MCS7820
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• FIFO: 512 Byte buffer bi-directional
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Data transfer rate up to 460.8 Kb/s
• Supports: UHCI / OHCI / EHCI
• Serial connector with nuts
• Supports remote wake-up and power management
• Compatible with 16C450 / 16C550 UART
• 1 x ferrite core

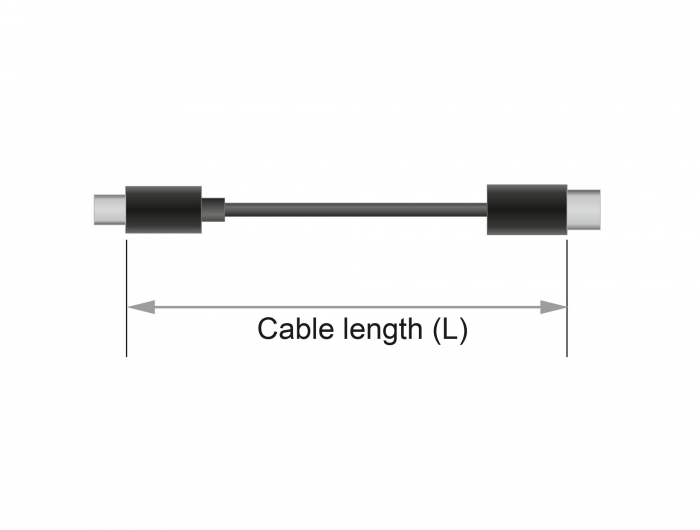

• Length incl. connectors (L): ca. 0.6 m
Package content:
• EASY-USB 2.0 to 2 x serial adapter
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/63950/pdf.html?sprache=en
