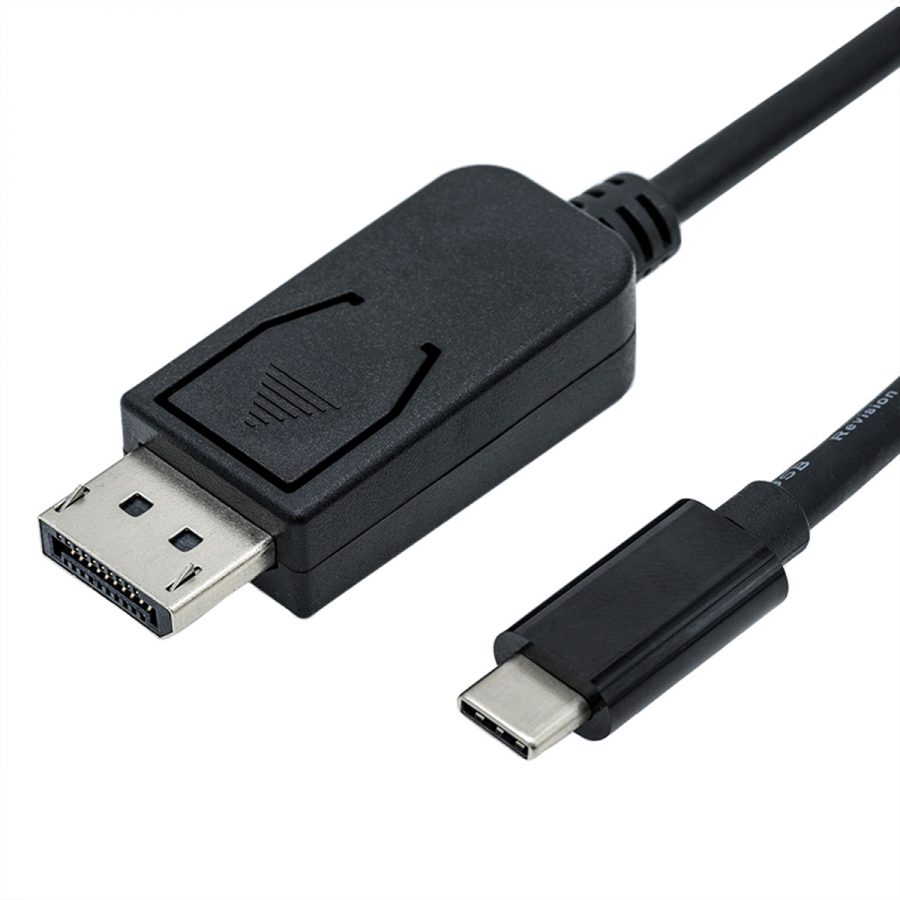

ROLINE Type C - DisplayPort Cable, M/M, 2 m

ROLINE

11.04.5958

Jauns

  • Reversible cable which enables the connection between devices with USB Type-C and DisplayPort connectors
  • Bidirectional cable - works in BOTH signal directions with USB Type-C and DisplayPort connectors
  • Requires the support of DisplayPort Alternate Mode on the USB Type C connection (laptop / PC / monitor)
  • Offers a variety of possible applications
- monitor or TV connection with DisplayPort socket to a laptop/smartphone with USB Type-C port.
- connection of an USB Type-C monitor to a device with DisplayPort output (notebook/PC...)
  • Plug & Play
  • Cable / converter is bus powered, this makes the integration within installations easy, with no additional need for external power supplies or outlets
  • Max. resolution: 3840 x2160 @60Hz
  • Connectors: DisplayPort Male and Type C Male
  • Cable length: 2 m

  • Compliant DP v1.2 (max. 4096 x 2560 @60Hz)

Remark: Support of "Alternate Mode (DP Alt Mode)" required



ManufacturerROLINE
Product groupAdapters, Terminators, Converters
Product typeUSB-DisplayPort Adapter
Colourblack
Length2 m
Max. resolution3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)Typ C Male
Side 2 connection (Peripherals)DisplayPort Male
Side 1 Connector TypeUSB Type C (USB-C)
Side 1 Connector GenderMale
Side 2 Connector TypeDisplayPort
Side 2 Connector GenderMale
Area of applicationExternal
Technical particularityDisplayPort Version 1.2
Weight81 g
Current catalog editionC23 00_LM

USB 3.0 /3.2 / Type-C / USB4™
