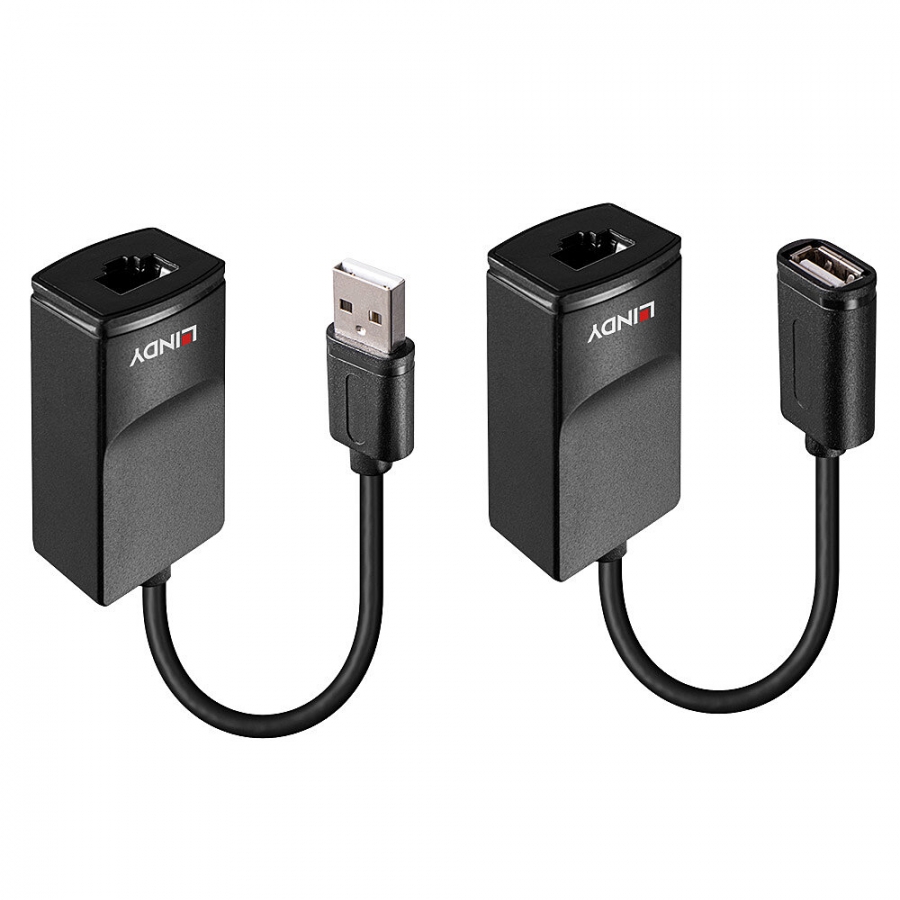

Lindy 60m USB 1.1 Cat.6 Extender Basic

Lindy

LIN43365

Jauns

Specifications

  • USB Standard: USB 1.1
  • Supported Bandwidth: 12Mbps
  • Maximum Distance: 60m (196ft)
  • Transmission Medium: Cat.5e/6 or higher network cable
  • Chipset: BCH4105G
  • Special Features: -



Connectors

  • Transmitter Input: USB Type A (Male)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Output: USB Type A (Female)
  • Power: -



Physical Properties

  • Dimensions WxDxH:
    • Transmitter: 53x26x20mm (2.09x1.02x0.79in)
    • Receiver: 53x26x20mm (2.09x1.02x0.79in)
  • Housing Material: Plastic
  • Net Weight: 0.054kg (0.12lb)
  • Operating Temperature: 0° - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 80°C (-4°F - 176°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
  • Gross Weight: 0.104kg (0.23lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH, CP65



Package Contents

  • Transmitter unit
  • Receiver unit
  • Lindy Manual



Purchasing information

  • No.: 43365
  • EAN: 4002888433655
