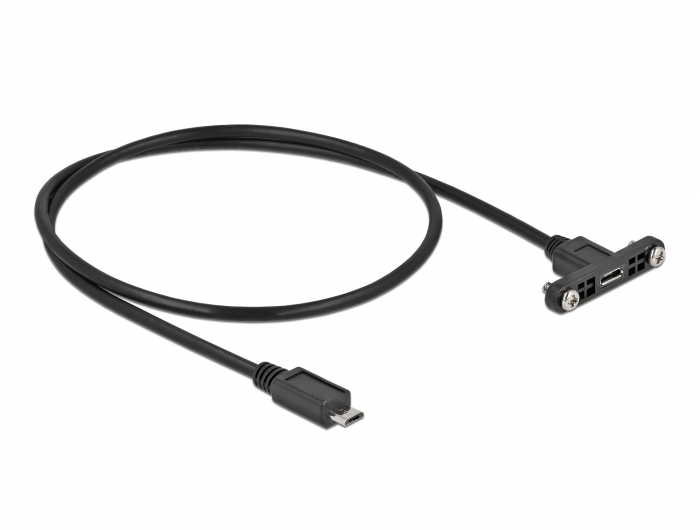

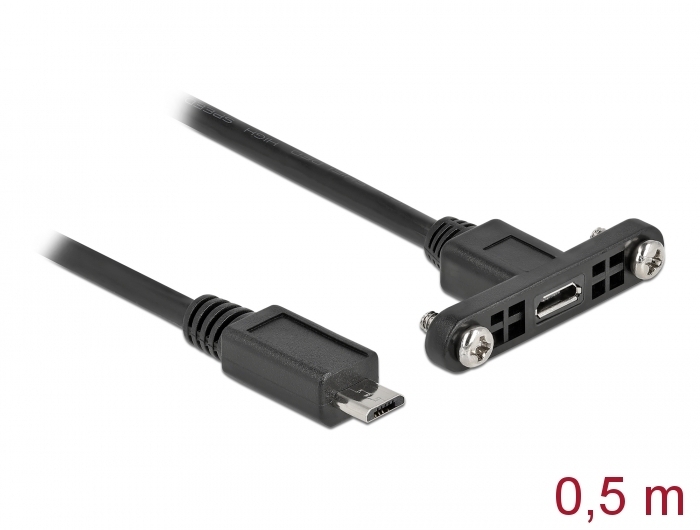

Delock Cable USB 2.0 Micro-B female panel-mount > USB 2.0 Micro-B male 0.5 m

Kods 35108

Condition: Jauns

Vairāk informācijas

This cable by Delock can be used to extend a USB 2.0 connection and to connect various devices. The female ports can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position.

System requirements:
• A free USB port

Specification:
• Connectors:
1 x USB 2.0 Type Micro-B female with screw nuts for installation >
1 x USB 2.0 Type Micro-B male
• Screw type: #4-40 UNC
• Mounting hole Type Micro-B ca. 8 x 3 mm, screw hole pitch ca. 30 mm
• Data transfer rate up to 480 Mbps
• Cable gauge:
28 AWG data line
28 AWG power line
• Cable diameter: ca. 3.8 mm
• Colour: black
• Length incl. connectors: ca. 0.5 m

Package content:
• USB panel-mount cable
• 2 screws

Data sheet:
http://www.delock.de/produkt/35108/pdf.html?sprache=en
