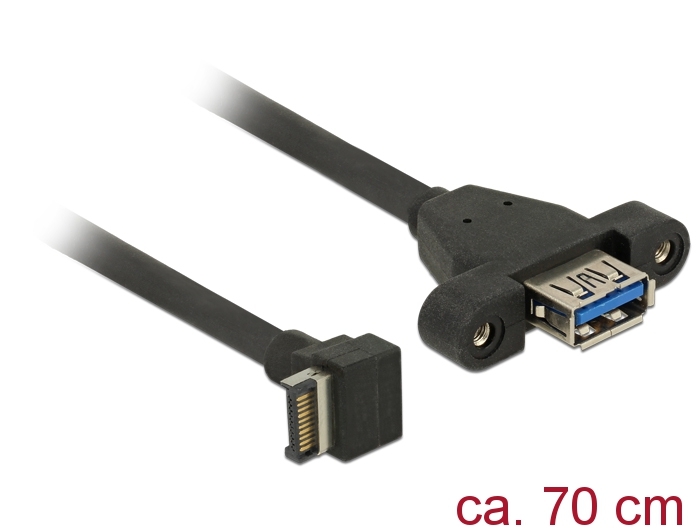

Delock Cable USB 3.1 Gen 2 key A 20 pin male > USB 3.1 Gen 2 Type-A female panel-mount 70 cm

DELOCK

85325

Jauns

• Anschlüsse: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Key A 20 Pin Stecker > 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Typ-A Buchse • Zwei Bohrungen zur Schraubbefestigung, Abstand ca. 31 mm, mit M3 Gewinde • Drahtquerschnitt: 28 + 30 AWG Datenleitung 26 + 28 AWG Stromleitung • Widerstand: 5,1 kO • Kabeldurchmesser: ca. 6 mm • Datentransferrate: bis zu 10 Gb/s • Länge inkl. Anschlüsse: ca. 70 cm
System requirements:
• PC with a free USB 3.1 Gen 2 key A interface
Specification:
• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) key A 20 pin male 90° angled >
  1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
• Two mounting holes for screws, spacing 31 mm, with M3 thread
• Cable gauge:
  28 + 30 AWG data line
  26 + 28 AWG power line
• Resistor: 5.1 kΩ
• Cable diameter: ca. 6 mm
• Data transfer rate up to:
  SuperSpeed USB 10 Gbps,
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Length incl. connectors: ca. 70 cm
Package content:
• USB cable
Data sheet:
http://www.delock.de/produkt/85325/pdf.html?sprache=en
