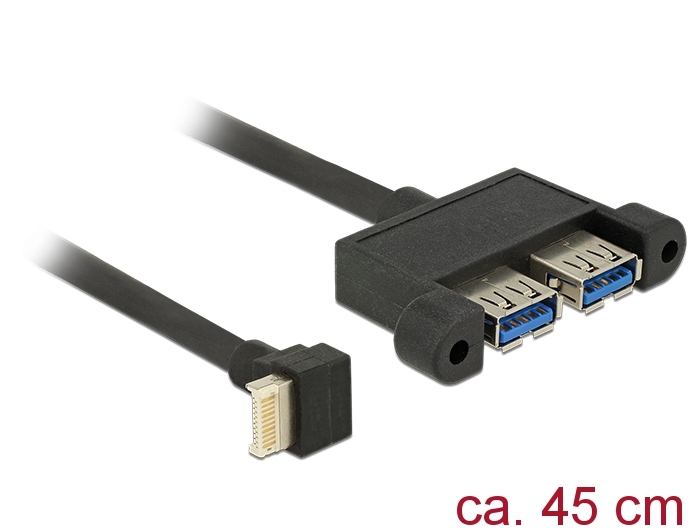

Delock Cable USB 3.1 Gen 2 key B 20 pin male > 2 x USB 3.1 Gen 2 Type-A female panel-mount 45 cm

Kods 85327

Condition: Jauns

Vairāk informācijas

• Anschlüsse: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Key B 20 Pin Stecker > 2 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Typ-A Buchse • Zwei Bohrungen zur Schraubbefestigung, Abstand ca. 48 mm, mit M3 Gewinde • Drahtquerschnitt: 28 + 30 AWG Datenleitung 26 + 28 AWG Stromleitung • Widerstand: 5,1 kO • Kabeldurchmesser: ca. 6 mm • Datentransferrate: bis zu 10 Gb/s • Länge inkl. Anschlüsse: ca. 45 cm

System requirements:

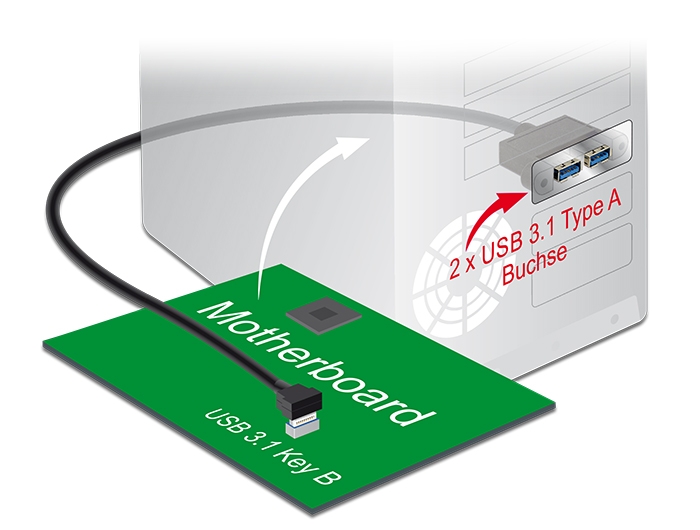

• PC with a free USB 3.1 Gen 2 key B interface

Specification:
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) key B 20 pin male 90° angled >
2 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
• Two mounting holes for screws, spacing 48 mm, with M3 thread
• Cable gauge:
28 + 30 AWG data line
26 + 28 AWG power line
• Resistor: 5.1 kΩ
• Cable diameter: ca. 6 mm
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Length incl. connectors: ca. 45 cm

Package content:
• USB cable

Data sheet:
http://www.delock.de/produkt/85327/pdf.html?sprache=en
