85109
Jauns

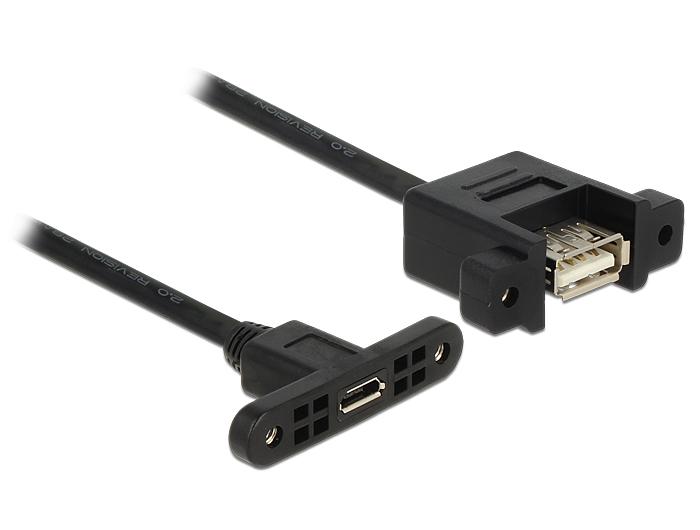

This cable enables you to extend a USB 2.0 connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an USB connector on an easily accessible position.
7 dienas
Brīdinājums: Palikusis pēdējā vienība!
Availability date:
Description:
This cable enables you to extend a USB 2.0 connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an USB connector on an easily accessible position.
Specification:
• Connector:
USB 2.0 Type Micro-B female with screw nuts for installation >
USB 2.0 Type-A female with screw nuts for installation
• Screw type: #4-40 UNC

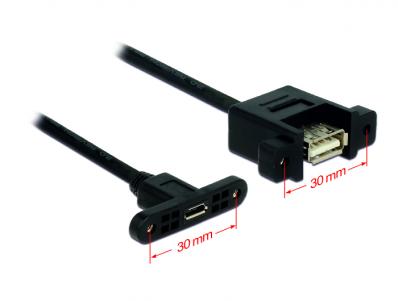

• Mounting hole Type Micro-B ca. 8 x 3 mm, screw hole pitch ca. 30 mm
• Mounting hole Type-A ca. 15 x 8 mm, screw hole pitch ca. 30 mm
• Data transfer rate up to 480 Mbps
• Cable gauge: 28 AWG data line
28 AWG power line
• Cable diameter: ca. 3.8 mm
• Colour: black
• Length incl. connector: ca. 25 cm
System requirements:
• A free USB port
Package content:
• USB panel-mount cable
• 4 screws
