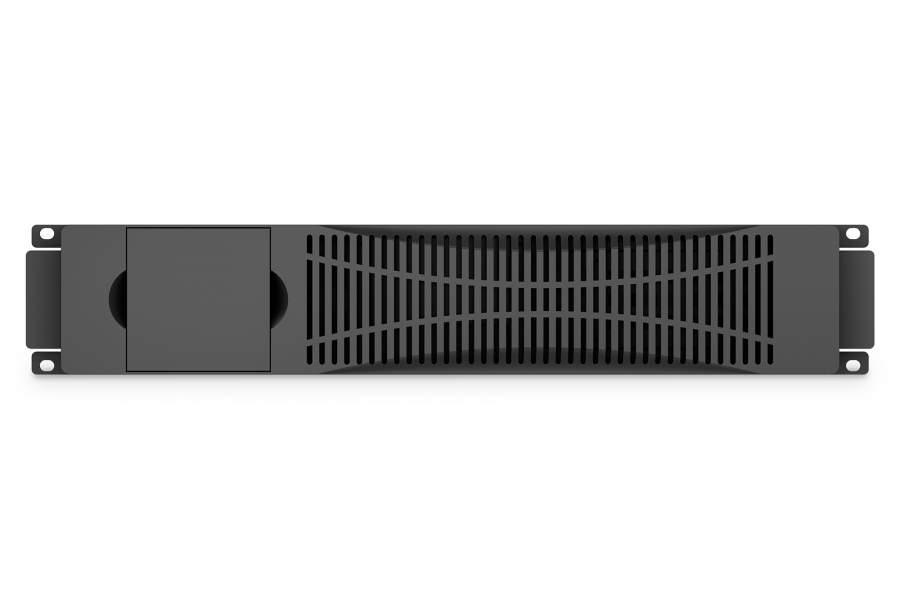

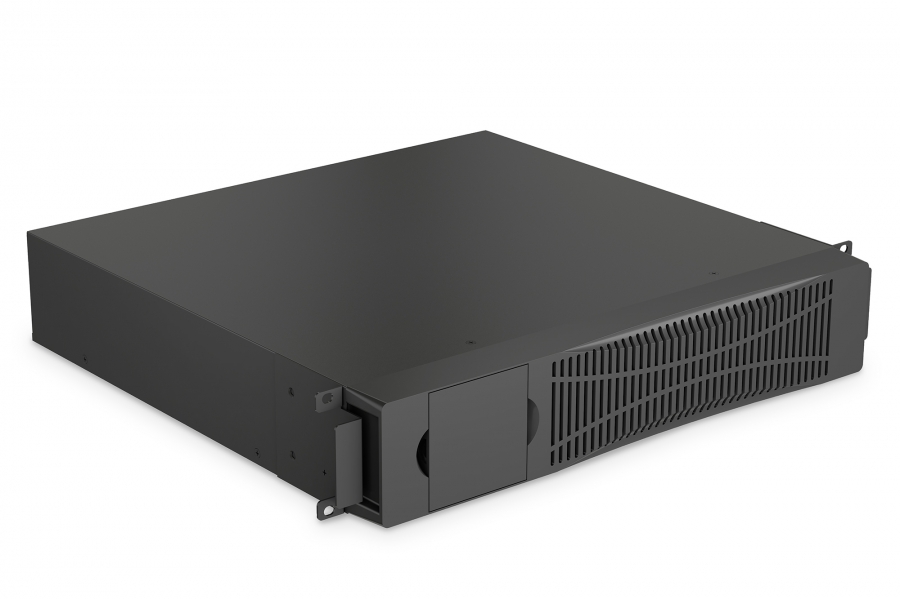

Digitus UPS External Battery Pack for 3kVA UPS Model (Extended Pack)

Digitus UPS External Battery Pack for 3kVA UPS Model (Extended Pack)

Digitus

DN-170123

Jauns

Salīdzināt
External battery module for DN-170096

A solution that increases the operating capacity of intelligent UPS systems to protect IT devices with medium to high loads

Rack / tower with convertible design
Hot swappable – Batteries can be exchanged during operation
Supports rapid extension of backup time in case of increased need for capacity
Easy installation – Batteries can be exchanged by the user
Supports cold start function

The DIGITUS® UPS Battery Modules ensure that UPS systems used in highly demanding environments can continue to reliably supply connected devices with power in case of interruptions to the power supply. A maximum of 4 battery modules can be connected in order to increase the operating time of the connected IT devices. The systems are protected by ensuring uninterrupted power supply while changing the batteries. The external battery backs can ensure a rapid increase for the bridging period in case of increasing need.

The battery module can be installed in a 19" rack or as a separate tower with stand
Hot swappable – Batteries can be exchanged during operation
Compatible with OnLine UPS: DN-170096
Battery voltage: ±82,5 VDC
Capacity (standard unit): 12 V / 9 Ah
Number of installed rechargeable batteries: 12 units
Batteries in a row: 6 (per battery module)
Battery type: Lead battery
Typical charging time: 12 hours to recover 90% of full capacity
Operating temperature: 20 °C to +25 °C
Humidity during operation: 0 - 90%

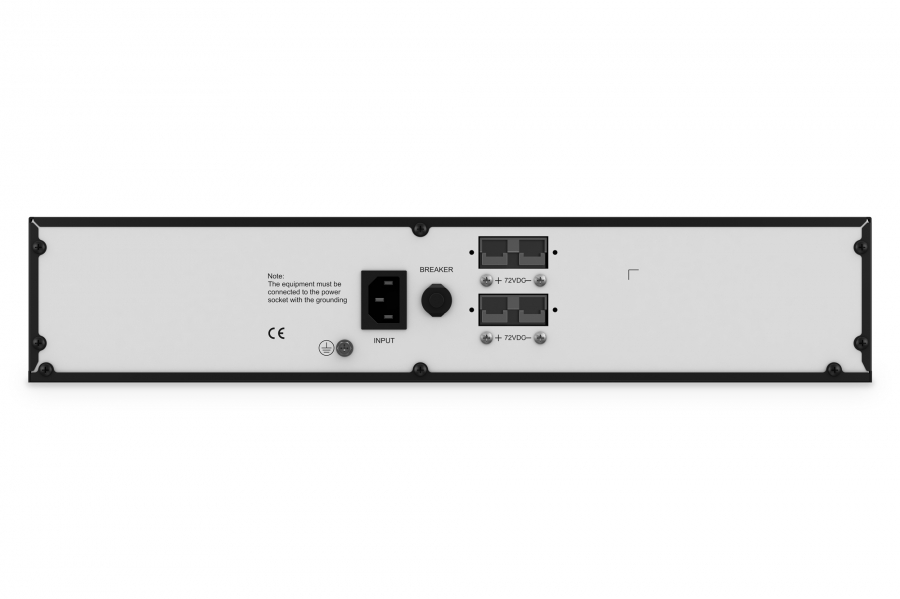

Terminal connections on the back
Dimensions (L×W×D): 86,5 x 440 mm x 710 mm
Net weight: 41,1 kg
Gross weight: 44,2 kg

Package content:
1 x External Battery Pack for 3 kVA UPS model (extension module)
1 x User manual
1 x AC input cord
1 x Battery Connector cable
