ROLINE ProSecure III 1500 - Online UPS

ROLINE

19.40.1083

Jauns

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:

  • Cold start function (DC power on)
  • Lightning and surge protection
  • Battery replacement warning
  • Emergency Power Off function
  • Battery remain time display
  • LCD display front panel
  • Power factor correction
  • Support USB communication
  • Multiple language LCD display
  • On line output voltage selected

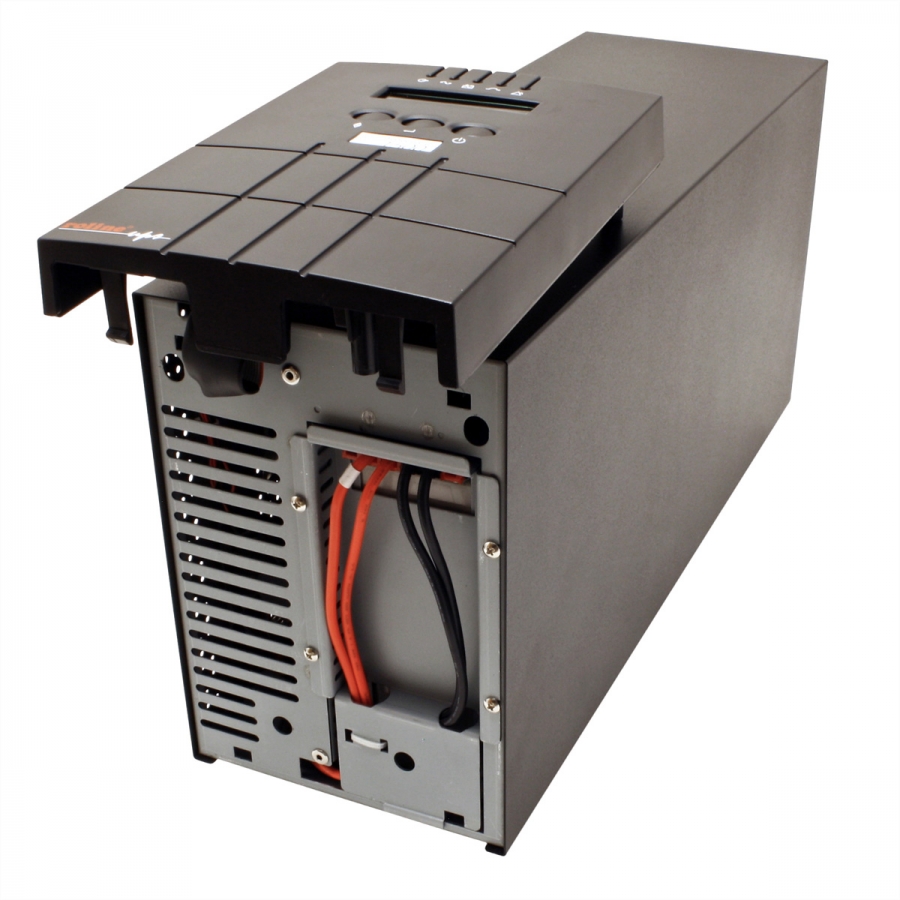

  • Hot swappable battery by user
  • True on-line technology provides all power protection
  • Pure sine-wave output with less than 3% THD
  • Fully digitized microprocessor controlled
  • Short Circuit and overload protection
  • Advanced battery management (ABM)

  • Automatic battery charge in UPS off mode
  • Automatic diagnostics & battery check
  • RS-232 communication port with monitoring software
  • Network/fax/modem surge protection
  • Extended back up time with battery pack
  • Load segmentation receptacles controllable
  • High efficiency mode selectable
  • Fan speed auto control when loads varies
  • UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64, MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX
  • Contents: UPS, cable set, UPS management software



ManufacturerROLINE
Product groupUPS
Product typeUPS Online
Colourblack
Scope of deliveryUPS, Software, Cable Set
Classification (IEC 62040-3)VFI-SS-111
UPS technologyOnline
Power class1000 ... 1900 VA
Output (VA/W)1500 / 1350
Efficiency95 %
Backup time5 min
Backup time full/half-load3 / 9 min
Weight20 kg
Dimensions (HxWxD)238 x 155 x 500 mm
Mounting formTower
Voltage (input)160-230V
Voltage (output)230 V
Output voltage regulation± 2%
Frequency50Hz ± 3%
Connector type (input)cold connector IEC 320 C14
Outputs4
Connector type (output)4x cold connector IEC 320 C13
Phase in/output230V/230V / 50Hz
Over current protectionEMI,- RFI-Filter
Max. quantity of delay expansion units2
Delay expansion unit2
Slots for adapter card1
Slot for adapter card1
InterfaceRS232, USB
RS-232 Interface
USB 2.0 Interface
Hot swap batteriesYes, front side
BypassAutomatic + manual
Additional over current protector
ActivityDisplay
Activity LED5
Activity DisplayLCD
incl.Management SoftwareWindows
Internal coolingActive, fan
Ambient temperature0 - 40 °C
Gross weight21,359
Current catalog editionC19-07.03
