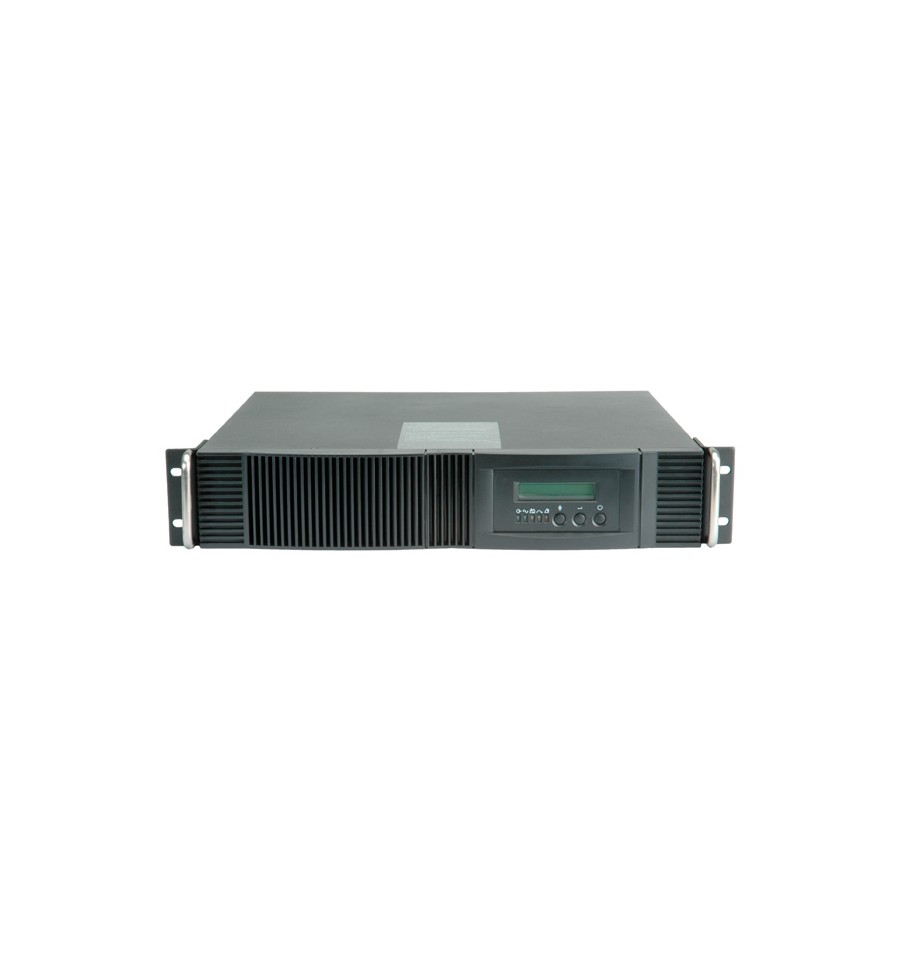

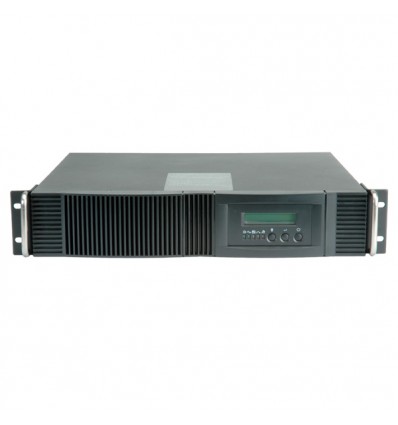

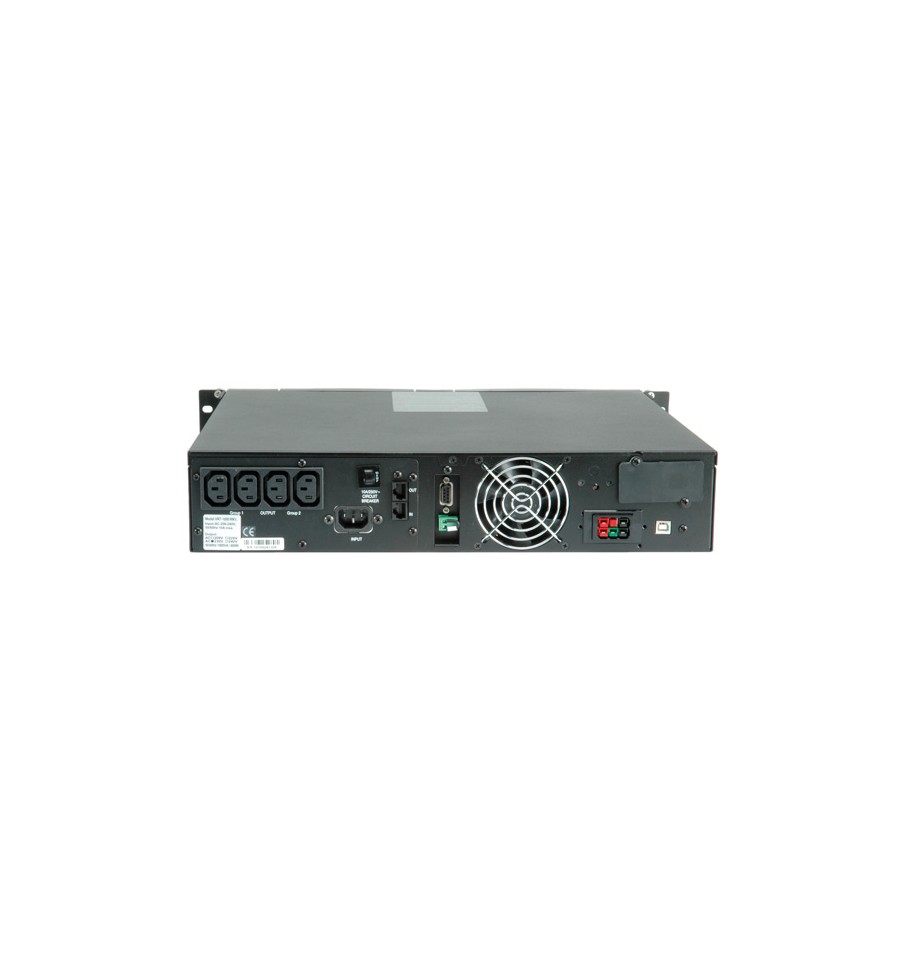

ROLINE ProSecure III 2000 RM2U - Online UPS, 19" Rack Version, black

ROLINE

19.40.1071

Jauns

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:
  • Cold start function (DC p...

More details

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:
  • Cold start function (DC power on)
  • Lightning and surge protection
  • Battery replacement warning
  • Emergency Power Off function
  • Battery remain time display
  • LCD display front panel
  • Power factor correction
  • Support USB communication
  • Multiple language LCD display
  • On line output voltage selected
  • Hot swappable battery by user
  • True on-line technology provides all power protection
  • Pure sine-wave output with less than 3% THD
  • Fully digitized microprocessor controlled
  • Short Circuit and overload protection
  • Advanced battery management (ABM)
  • Automatic battery charge in UPS off mode
  • Automatic diagnostics & battery check
  • RS-232 communication port with monitoring software
  • Network/fax/modem surge protection
  • Extended back up time with battery pack
  • Load segmentation receptacles controllable
  • High efficiency mode selectable
  • Fan speed auto control when loads varies
  • UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64,
MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX
  • Contents: UPS, cable set, UPS management software
Activity DisplayLCD
Activity LED5
Additional over current protectorNo
Ambient temperature0-40°C
Backup time full/half-load3-5 / 9 min
BypassAutomatic + manual
Classification (IEC 62040-3)VFI-SS-111
Colourblack
Connector type (input)cold connector IEC 320 C14
Connector type (output)4x cold connector IEC 320 C13
Content of deliveryUPS, Software, Cable Set
Conveyance goodYes
Dimensions (HxWxD)88 x 428 x 610; 2 HE
Efficiency95 %
Frequency50Hz ± 3%
Hot swap batteriesYes, front side
incl.Management SoftwareWindows
InterfaceRS232, USB
Internal coolingActive, fan
ManufacturerROLINE
Manufacturer Item No.19.40.1071
Max. quantity of delay expansion units2
Mounting formRackmount
Output (VA/W)2000 / 1800 @ Pf. 0,9
Output voltage regulation± 2%
Over current protectionEMI,- RFI-Filter
Phase in/output230V/230V / 50Hz
Product groupUPS
Product typeUPS Online, Rackmount
Slot for adapter card1
UPS technologyOnline
Voltage (input)160-230V
Voltage (output)230V
Weight32
