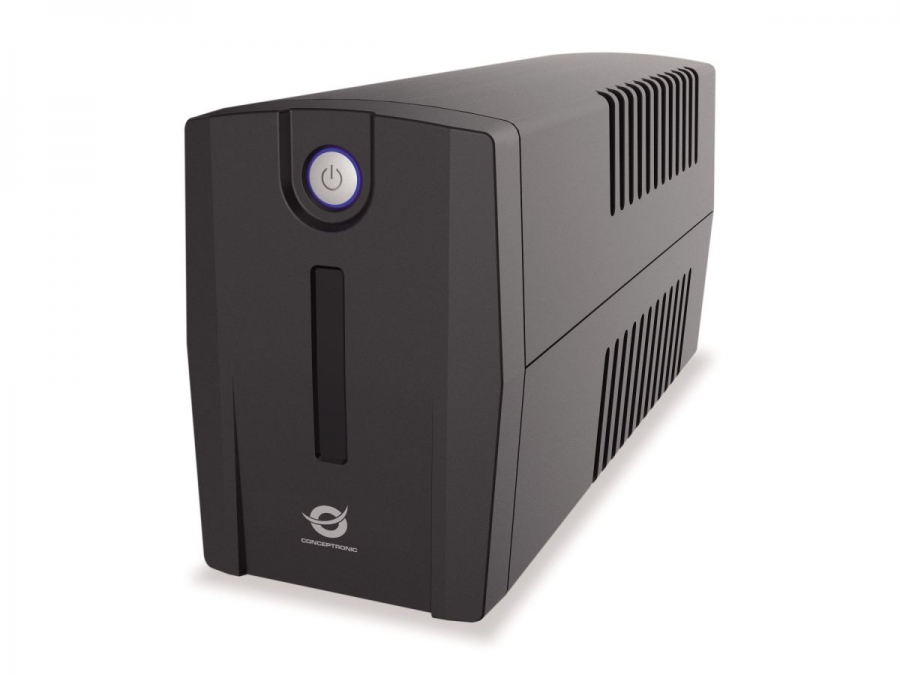

CONCEPTRONIC ZEUS USV 1000VA 600W Schuko UPS Start/LAN sw

Conceptronic

ZEUS07ES

Jauns

The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.

UPS topologyLine-Interactive
Output power capacity1 kVA
Output power600 W
WaveformSine
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Automatic Voltage Regulation (AVR)
Power protection featuresShort circuit
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
Auto-restart
Country of originChina

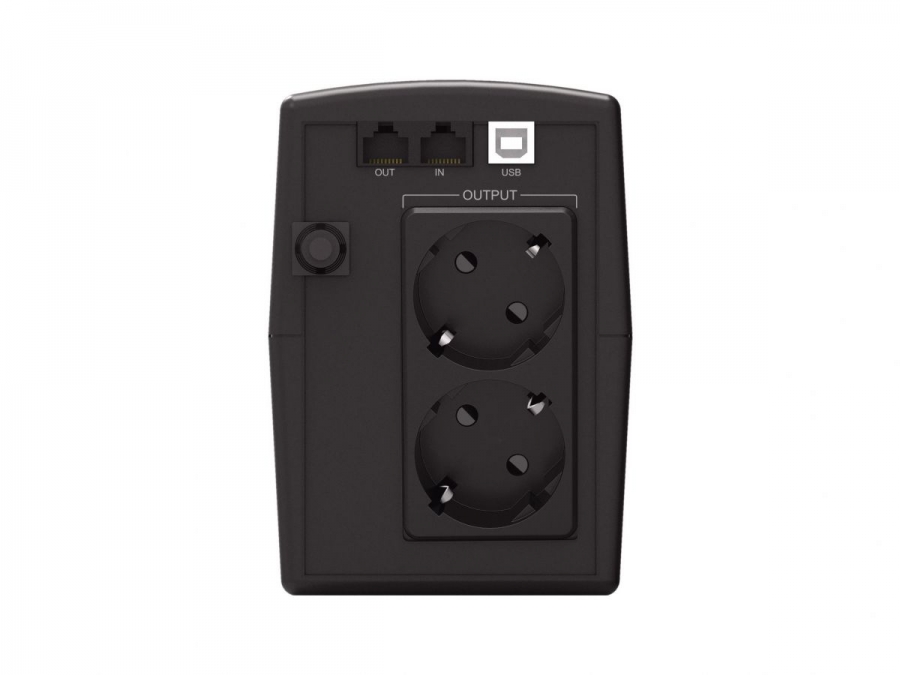

AC outlet typesType F
AC outlets quantity2 AC outlet(s)
USB port
USB 2.0 ports quantity1
USB port typeUSB Type-B
Ethernet LAN (RJ-45) ports2
Battery capacity7 Ah
Battery voltage12 V
Battery recharge time(90%)8 h
Battery capacity84 Wh
Form factorCompact
Product colourBlack
International Protection (IP) codeIP20
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Compliance certificatesCE, RoHS
Width96 mm
Depth286 mm
Height138 mm
Weight5.19 kg
Package width161 mm
Package depth357 mm
Package height215 mm
Package weight5.5 kg
Cables includedOutput power cable, USB cable
Quick installation guide
Products per pallet48 pc(s)
Pallet gross length80 cm
Pallet gross width120 cm
Pallet gross height2.21 m
Harmonized System (HS) code8504402000
Master (outer) case width179 mm
Master (outer) case length377 mm
Master (outer) case height240 mm
Master (outer) case gross weight5.8 kg
Products per master (outer) case1 pc(s)

UPS lineinteractive
