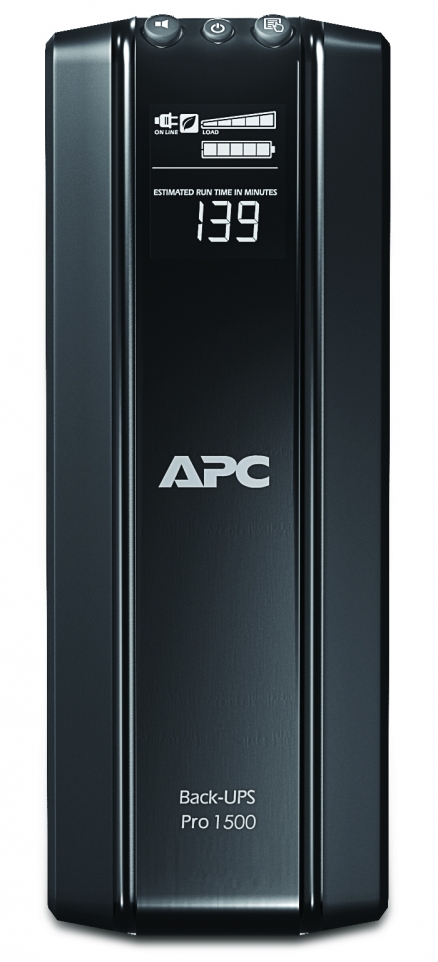

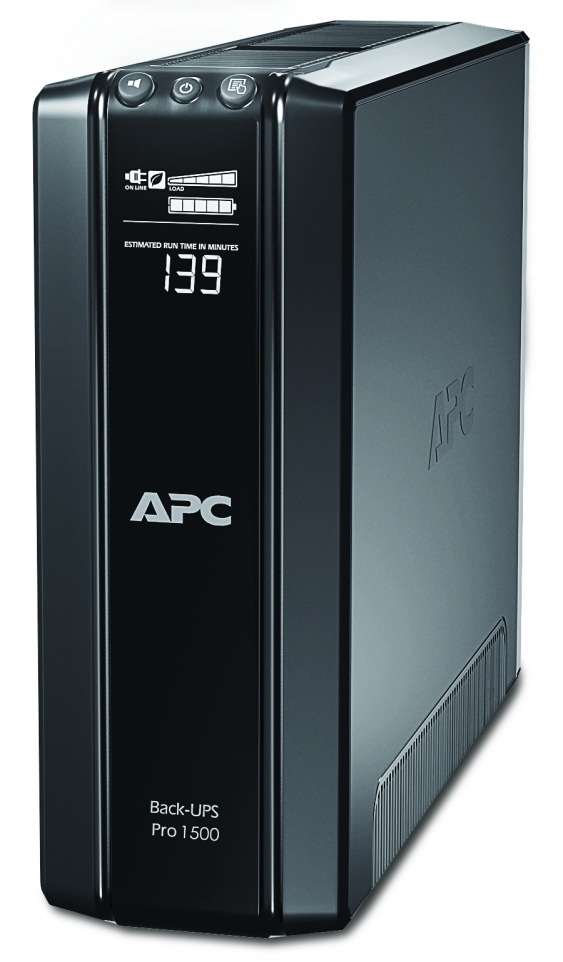

APC USV BR1500GI BACKUPS Pro 1500 230V

APC

BR1500GI

Jauns

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.

Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.

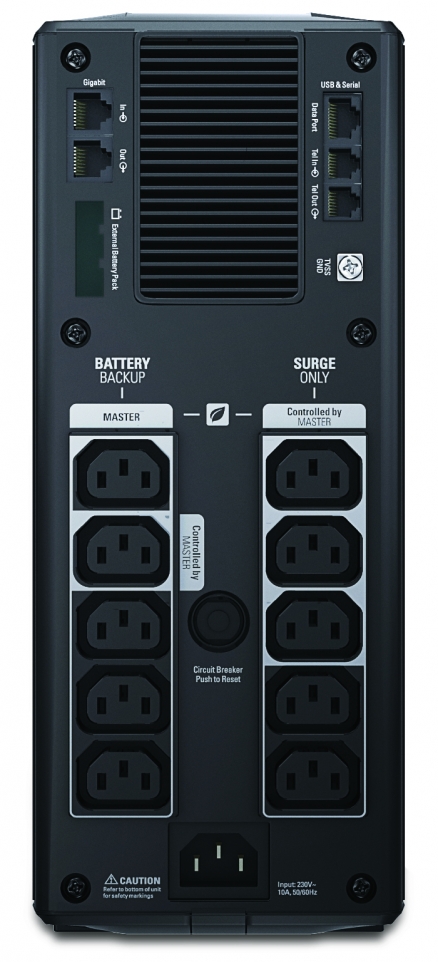

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment

Cold-start capable
Provides temporary battery power when the utility power is out.

Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

UPS topologyLine-Interactive
Output power capacity1.5 kVA
Output power865 W
WaveformSine
Input operation voltage (min)156 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output frequency regulation50/60 Hz
Automatic Voltage Regulation (AVR)
Surge energy rating441 J
Hold time (min)10 ms
Hold time (max)12 ms
Efficiency98.9%
Crest factor3:1
Noise level45 dB
Surge protection
Surge protection featuresDigital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Audible alarm(s)
Audible alarm modesLow battery alarm, Overload alarm
AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB port
Battery technologySealed Lead Acid (VRLA)
Battery capacity187 VAh

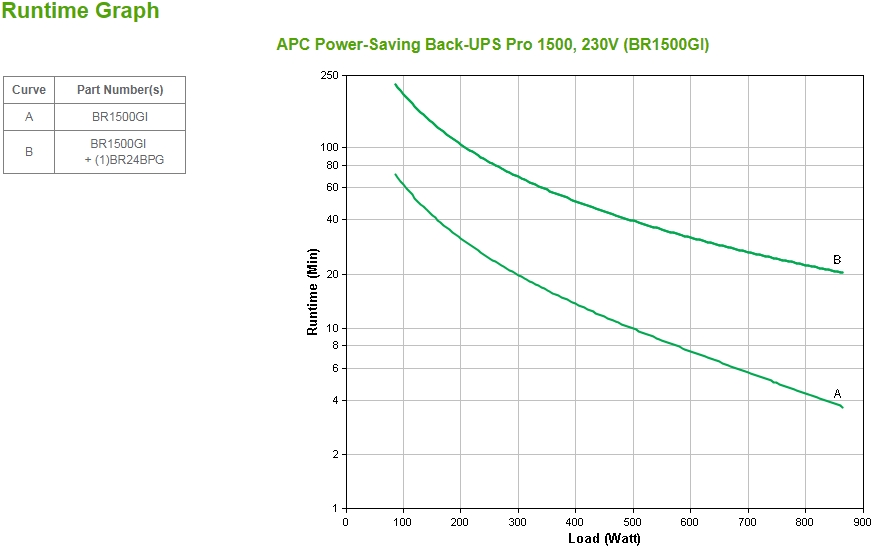

Typical backup time at full load3.7 min
Typical backup time at half load12.4 min
Battery life (max)5 year(s)
Battery recharge time8 h
Hot-swap battery
Automatic battery test
Cold start
Replacement battery cartridgeAPCRBC124
Product colourBlack
Display typeLCD
CertificationA-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 9000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesRoHS, ENERGY STAR
Width112 mm
Depth380 mm
Height301 mm
Weight12.7 kg
Package width238 mm
Package depth488 mm
Package height387 mm
Package weight14.3 kg
Cables includedPhone (RJ-11), USB cable
Manual
Warranty card
Software CD

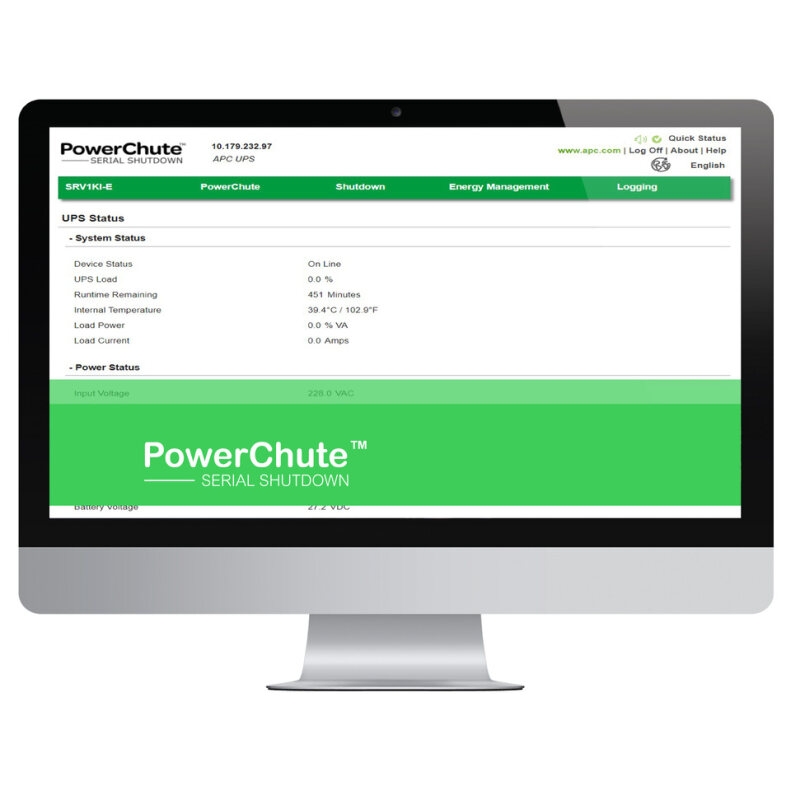

Bundled softwarePowerChute Personal Edition
Products per pallet20 pc(s)
Harmonized System (HS) code85078000
Products per master (outer) case1 pc(s)
Nominal output voltage230 V
Nominal input voltage230 V
Packaging content1x Detachable IEC Power Cord

UPS lineinteractive
