Eaton USV 5P650i 650VA 420W USB/RS232

EATON CORPORATION

5P650I

Jauns

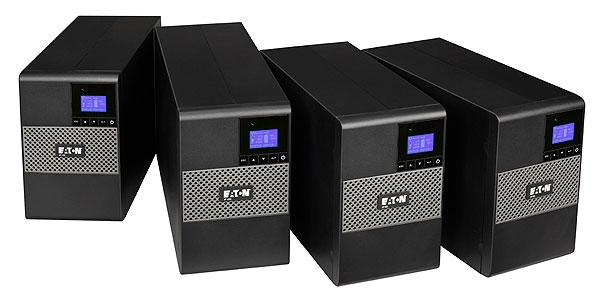

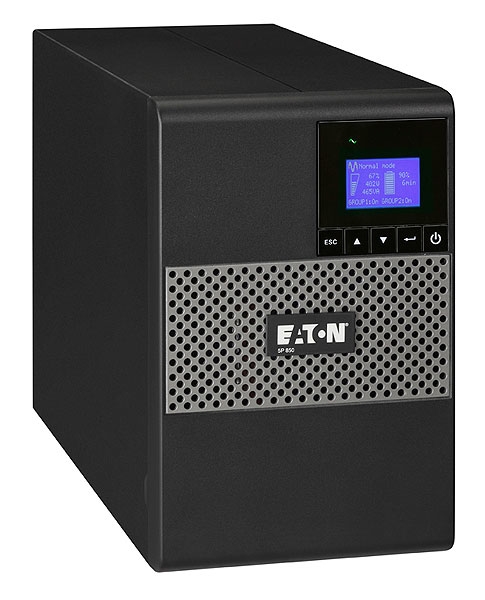

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.

UPS topologyLine-Interactive
Output power capacity0.65 kVA
Output power420 W
WaveformPure sine
Input operation voltage (min)150 V
Input operation voltage (max)294 V
Input frequency40/70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Number of input phases1
Number of output phases1
Efficiency98%
ECO modeN
Noise level40 dB

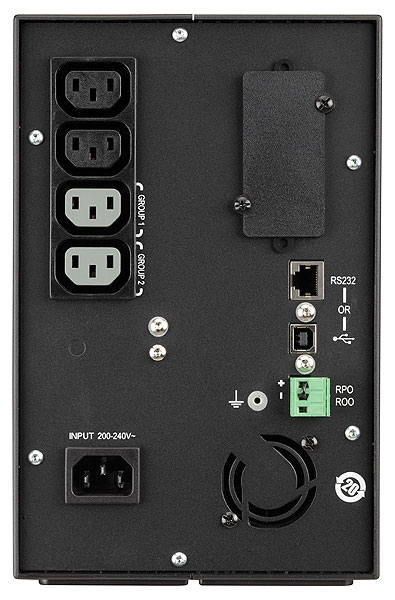

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
USB portY
USB 2.0 ports quantity1
RS-232 ports1
Battery technologySealed Lead Acid (VRLA)
Typical backup time at half load9 min

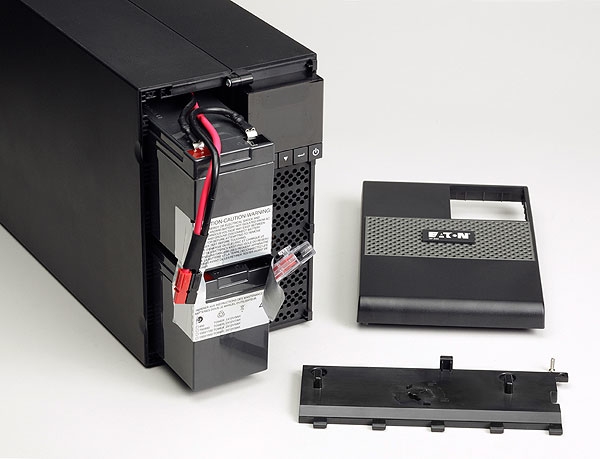

Hot-swap batteryY
Automatic battery testY
Form factorTower
Product colourBlack

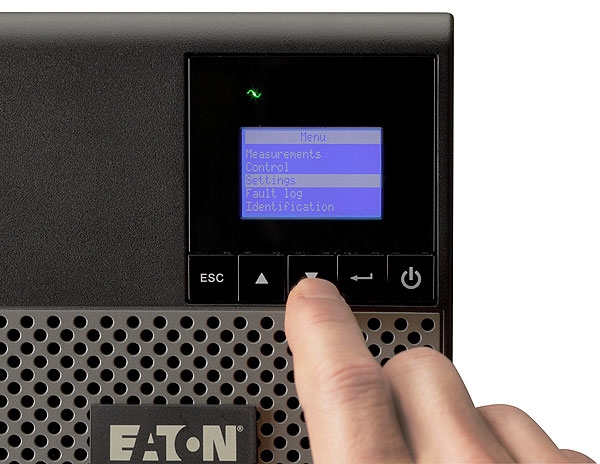

Display typeLCD
SafetyEN 62040-1, UL 1778
CertificationIEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Operating temperature (T-T)0 - 35 °C
Width150 mm
Depth345 mm
Height230 mm
Weight7.8 kg
Management card includedN
Bundled softwareIntelligent Power Software suite
Harmonized System (HS) code85078000
Input connection typeIEC C14
Mac compatibilityN
Nominal output voltage230 V
Nominal input voltage230 V

UPS lineinteractive
