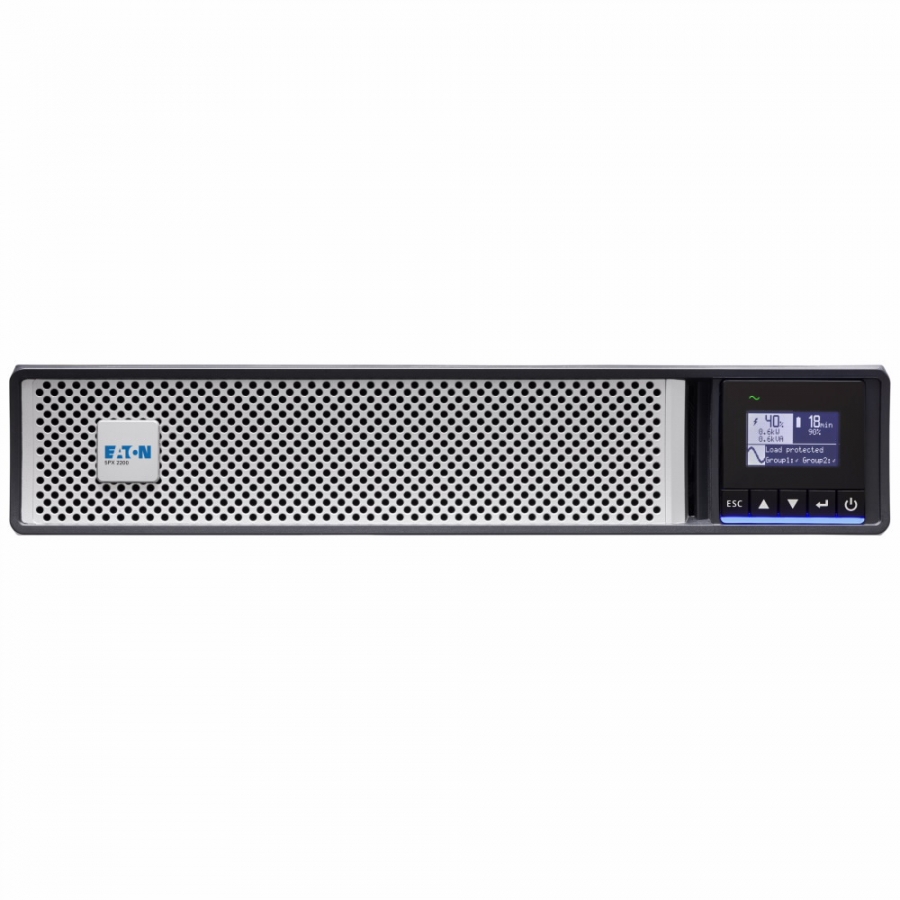

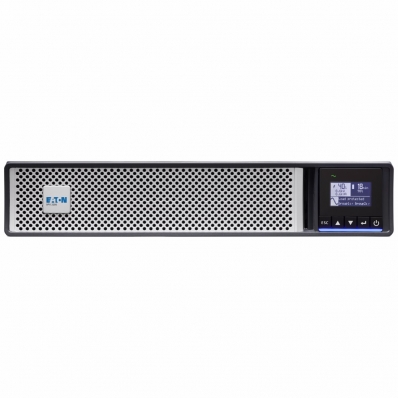

Eaton USV 5PX2200iTR2U 2200VA USB/RS232 Netpack G2 (Speditionsversand)

EATON CORPORATION

5PX2200IRTNG2

Jauns

Exceptional efficiency, manageability and energy metering capabilities for IT managersPerformance and efficiency- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers. - Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs. - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers. - Each 5PX Gen2 battery configuration provides the best size /runtime ratio.Management and Cybersecurity- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities. - 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions. - Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost. - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software. - Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.Availability and flexibility- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models. - 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups). - Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%. - Up to 4 external hot-swappable battery modules can be added for longer power availability.

UPS topologyLine-Interactive
Output power capacity2200 kVA
Output power2200 W
WaveformPure sine
Input operation voltage (min)160 V
Input operation voltage (max)294 V
Input frequency47/70 Hz
Noise level40 dB
Power protection featuresOverdischarge
AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
USB portY
Serial interfaceY
Serial interface typeRS-232
Serial ports quantity1
Automatic battery testY
Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Display typeLCD
LED indicatorsY
SafetyIEC/EN 62040-1, UL1778, CSA22.2
CertificationIEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Operating temperature (T-T)0 - 40 °C
Sustainability complianceY
Sustainability certificatesCE
Width438 mm
Depth603 mm
Height85.5 mm
Weight28.2 kg
Management card includedY
Harmonized System (HS) code85078000
Output connections8 x IEC C13 (10A) 2 x IEC C19 (16A)
Nominal output voltage230 V

UPS lineinteractive
