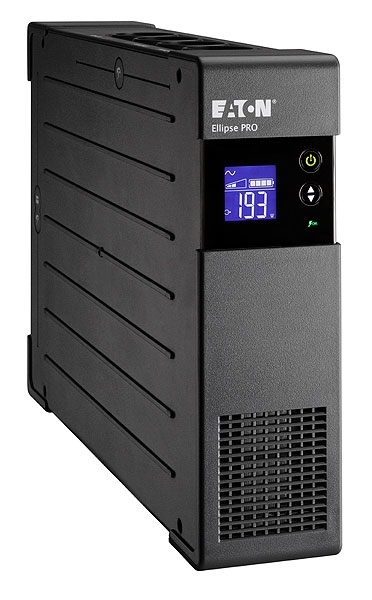

Eaton USV ELP1200DIN 1200VA/750W USB Ellipse PRO DIN

EATON CORPORATION

ELP1200DIN

Jauns

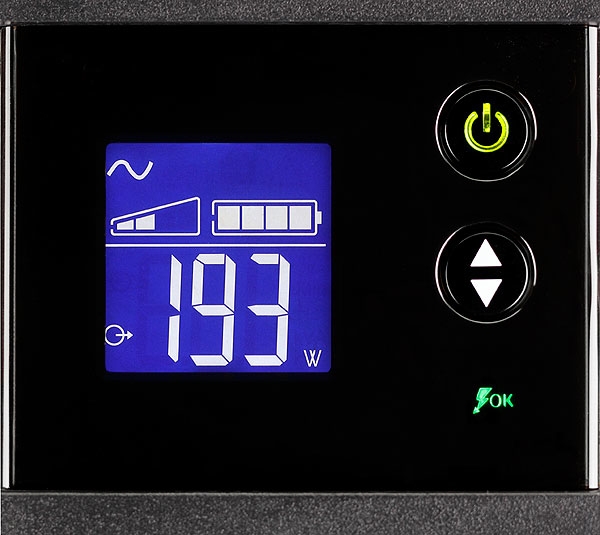

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.- LCD display for real-time status and measurements. - Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost). - EcoControl function helps you save up to 20% energy compared to previous generation UPSs. - Includes a high performance surge-protection device which complies with IEC 61643-1 standard. - Up to 8 outlets to connect your PC & peripherals. - Convenient extra-flat design for easy installation in any office environment. - USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings. - Protects data connections such as Ethernet, internet and telephone lines.

UPS topologyLine-Interactive
Output power capacity1.2 kVA
Output power750 W
Input operation voltage (min)150 V
Input operation voltage (max)285 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50 Hz
Emergency Power Off (EPO)Y
Surge protectionY
Surge protection featuresFax, Modem, Network, Telephone
AC outlet typesType F
Power plugC14 coupler

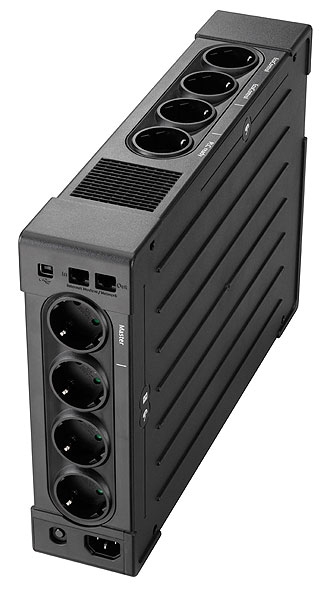

AC outlets quantity8 AC outlet(s)
USB 2.0 ports quantity1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports1
Battery technologySealed Lead Acid (VRLA)
Typical backup time at half load9 min
Hot-swap batteryN
Automatic battery testY
Cold startY
Form factorTower
Product colourBlack
Rack capacity2U
Display typeLCD
LED indicatorsY
SafetyIEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Width82 mm
Depth390 mm
Height275 mm
Weight9.9 kg
Harmonized System (HS) code85078000
Nominal input voltage230 V

UPS lineinteractive
