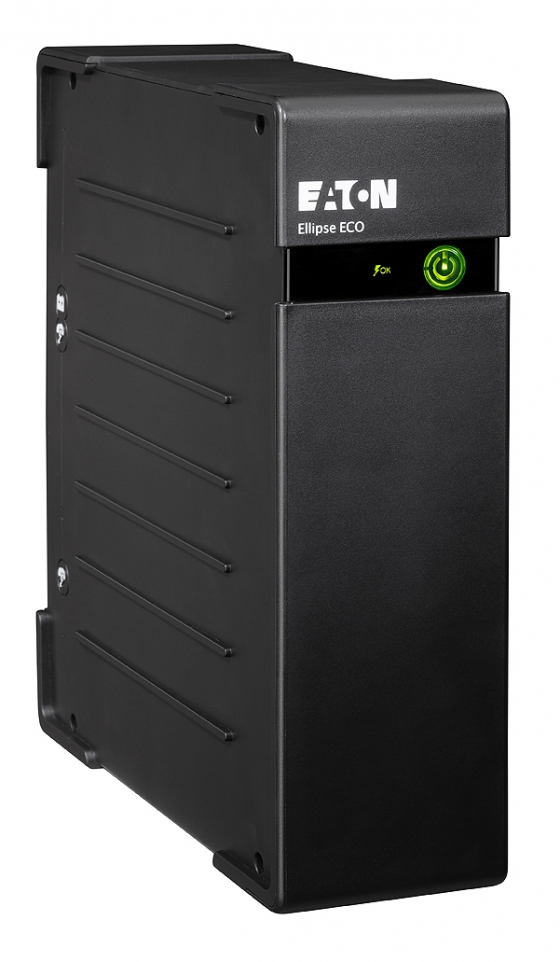

Eaton USV EL500DIN 500VA/300W Ellipse ECO

EATON CORPORATION

EL500DIN

Jauns

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

UPS topologyStandby (Offline)
Output power capacity0.5 kVA
Output power300 W
Input operation voltage (min)161 V
Input operation voltage (max)284 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Emergency Power Off (EPO)N
Surge protectionY
Surge protection featuresFax, Modem, Network, Telephone
Audible alarm(s)Y
Audible alarm modesBattery replacement
AC outlet typesType F
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports1
Battery technologySealed Lead Acid (VRLA)
Typical backup time at half load9 min
Hot-swap batteryN
Automatic battery testY
Cold startY
Form factorTower
Product colourBlack
Rack capacity2U
LED indicatorsBattery replacement
SafetyIEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Width81 mm
Depth235 mm
Height263 mm
Weight2.9 kg
Harmonized System (HS) code85078000
Input connection typeSchuko
Nominal output voltage220-240 V
Nominal input voltage230 V
Overload protectionY

UPS lineinteractive
