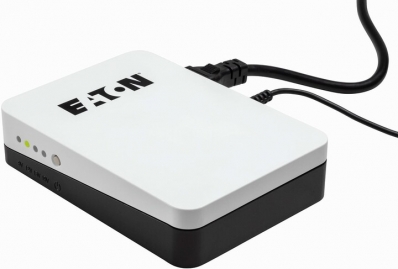

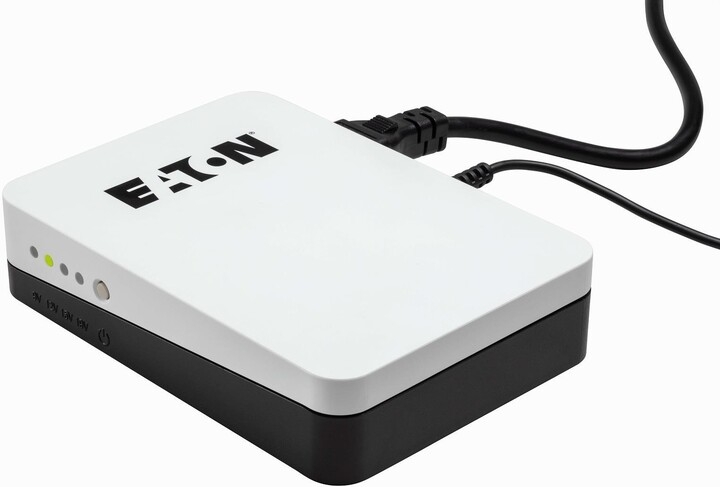

Eaton USV 3SM36 3S Mini 36W

EATON CORPORATION

3SM36

Jauns



Output power36 W
Input operation voltage (min)90 V
Input operation voltage (max)264 V
Input frequency50/60 Hz
Output operation voltage (min)9 V
Output operation voltage (max)19 V
Maximum current3 A
Power plugType F
Battery technologyLithium
Battery capacity4.4 Ah
Battery voltage3.7 V
Form factorCompact
Product colourBlack, White
CertificationIEC 62477-1, IEC 62040-2
Operating temperature (T-T)0 - 35 °C
Width95.5 mm
Depth30 mm
Height136 mm
Weight400 g
Harmonized System (HS) code85078000
Output connections5.5/2.5mm, 5.5/2.1mm, 4.75/1.7mm, 3.5/1.3mm

UPS lineinteractive
