Jauns

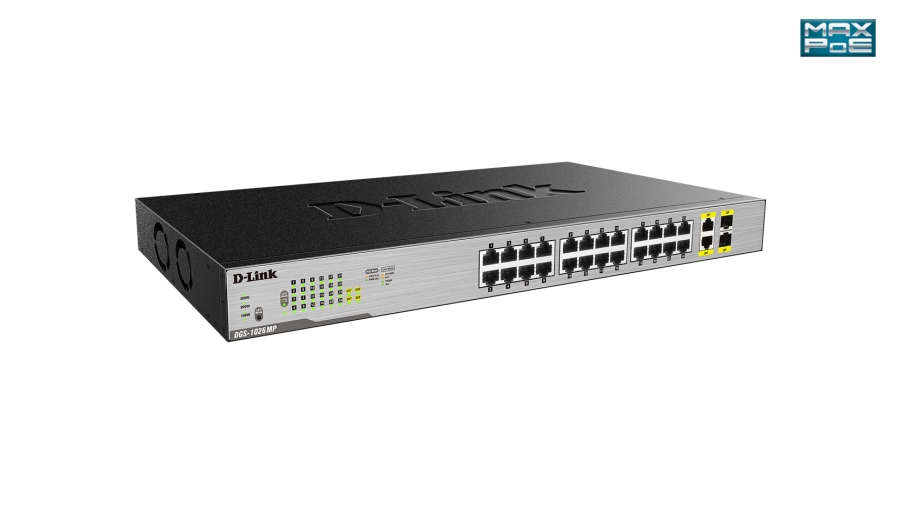

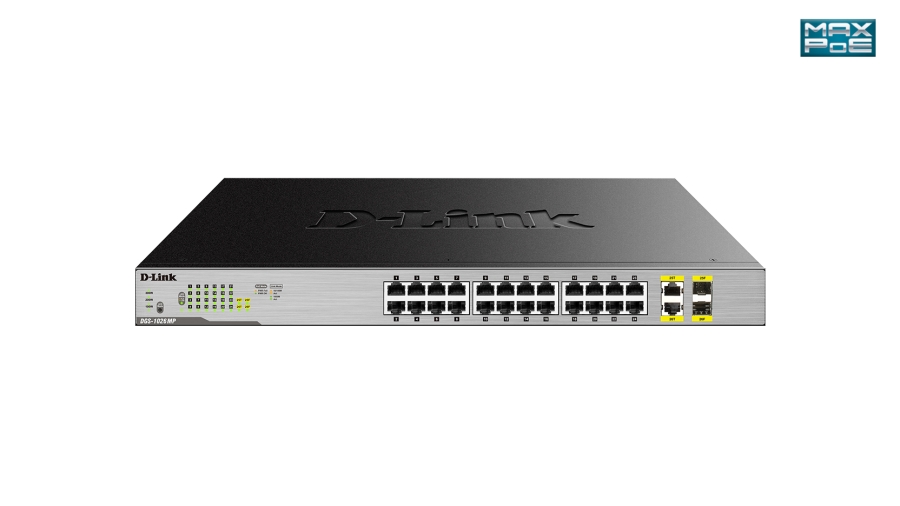

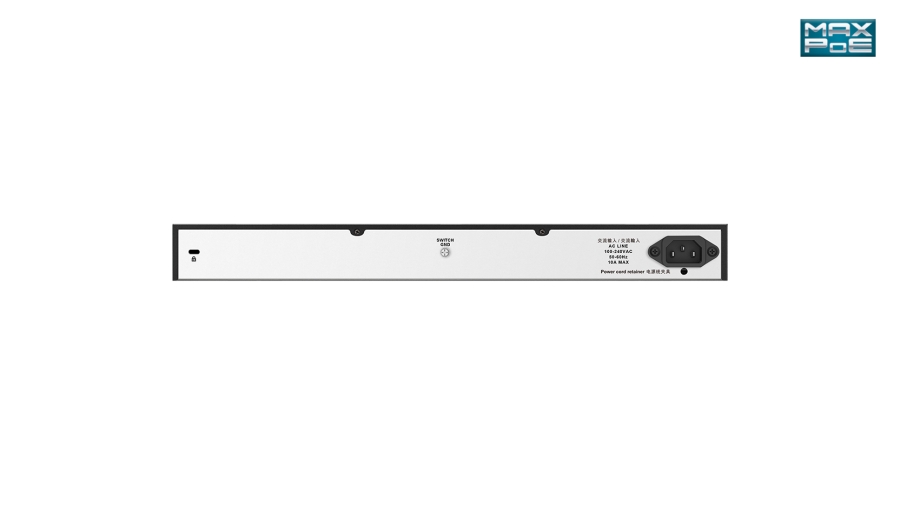

Switch 280mm D-Link DGS-1026MP 24*GE retail

Manufacturer: D-LINK

Kods DGS-1026MP

Condition: Jauns

Vairāk informācijas

26 Port Gigabit Max PoE Switch

DGS-1026MP

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.

Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.

Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.

Energy Efficient
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

Hassle-Free Setup
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Nē
Auto MDI/MDI-X	Jā
MAC address table	8192 entries
Switching capacity	52 Gbit/s
Throughput	38.69 Mpps
Forwarding rate	38.69 Mpps
Store-and-forward	Jā
Packet buffer memory	0.512 MB
Rack mounting	Jā
Product colour	Black, Grey
LED indicators	Activity, Link, PoE, Power, Power fail, Speed
Number of fans	2 fan(s)
Safety	UL/CSA 60950-1, EN 60950-1, IEC 60950-1
Buffer size	512 KB
Mean time between failures (MTBF)	205975 h
Power source	AC
Power supply included	Jā
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	444.1 W
Power over Ethernet (PoE)	Jā
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1515 BTU/h
Width	440 mm
Depth	250.4 mm
Height	44 mm
Weight	3.1 kg
Package width	388 mm
Package depth	506 mm
Package height	90 mm
Package weight	3.7 kg
Shipping (inner) case height	41 cm
Shipping (inner) case width	20.5 cm
Shipping (inner) case length	52 cm
Shipping (inner) case net weight	8.39 kg
Products per shipping (inner) case	2 pc(s)
Pallet gross weight (air)	281.8 kg
Master (outer) cases per pallet (air)	30 pc(s)
Products per pallet (air)	60 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	136.5 cm
Pallet gross weight (sea)	369.8 kg
Master (outer) cases per pallet (sea)	40 pc(s)
Products per pallet (sea)	80 pc(s)
Pallet height (sea)	177.5 cm
Shipping (inner) case gross weight	8.79 kg
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Certification	FCC Class A CE CCC RoHS VCCI BSMI RCM
Harmonized System (HS) code	85176990
