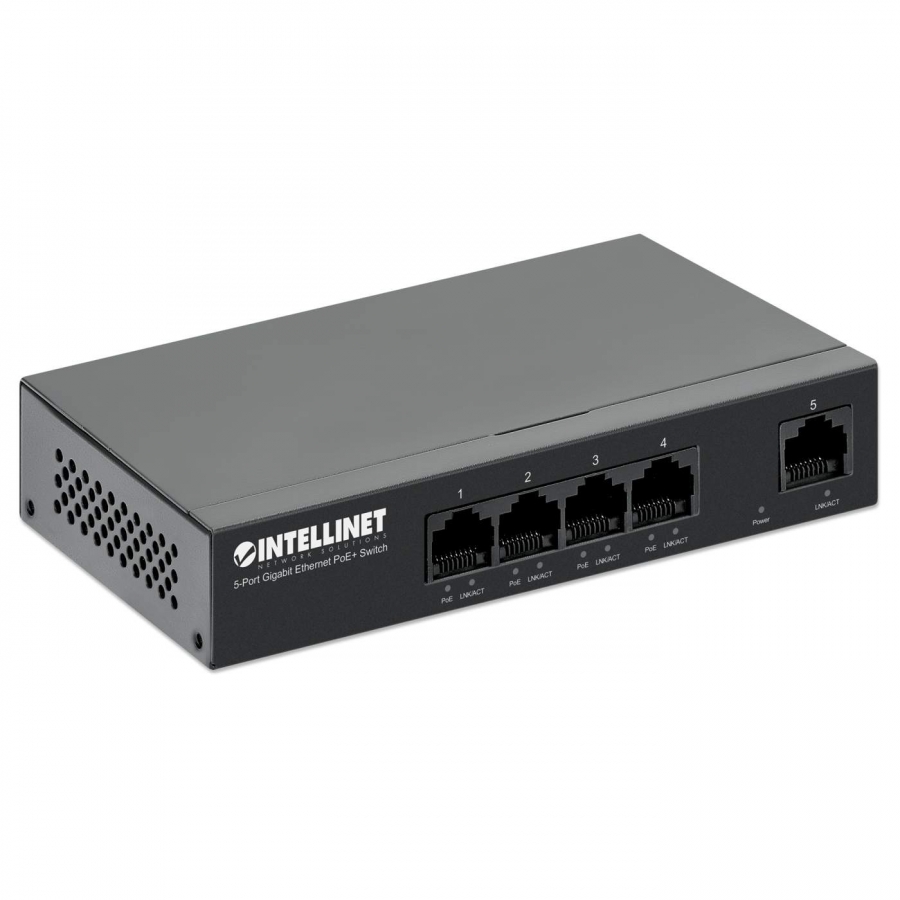

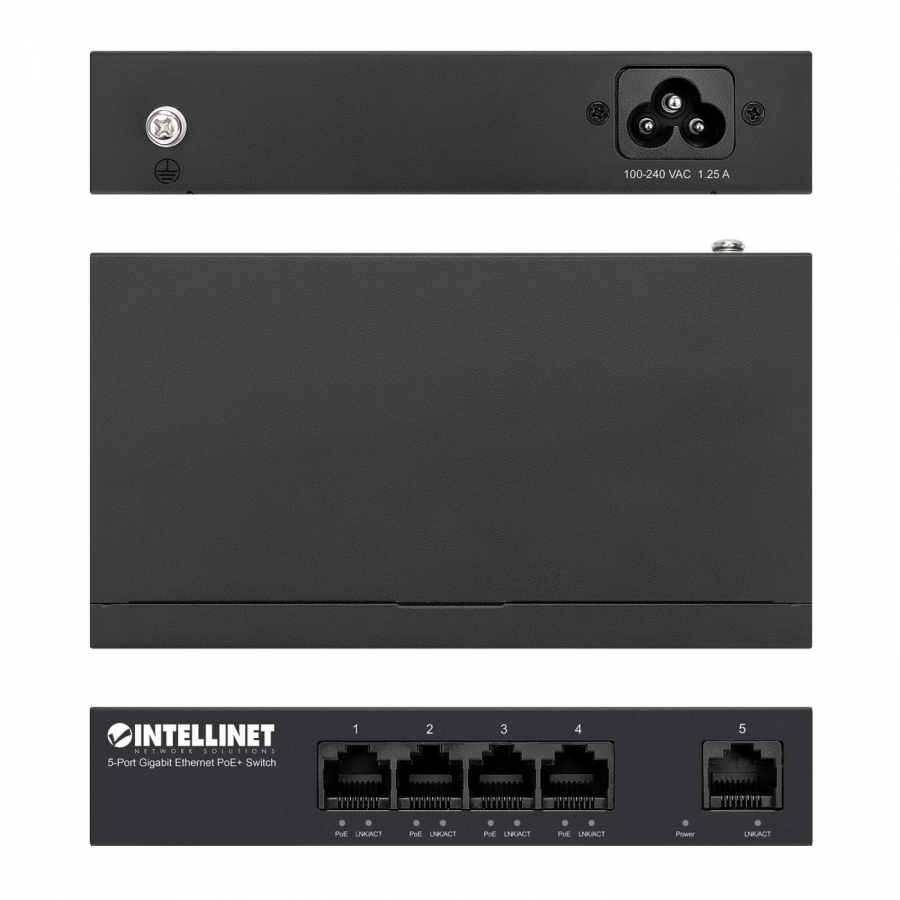

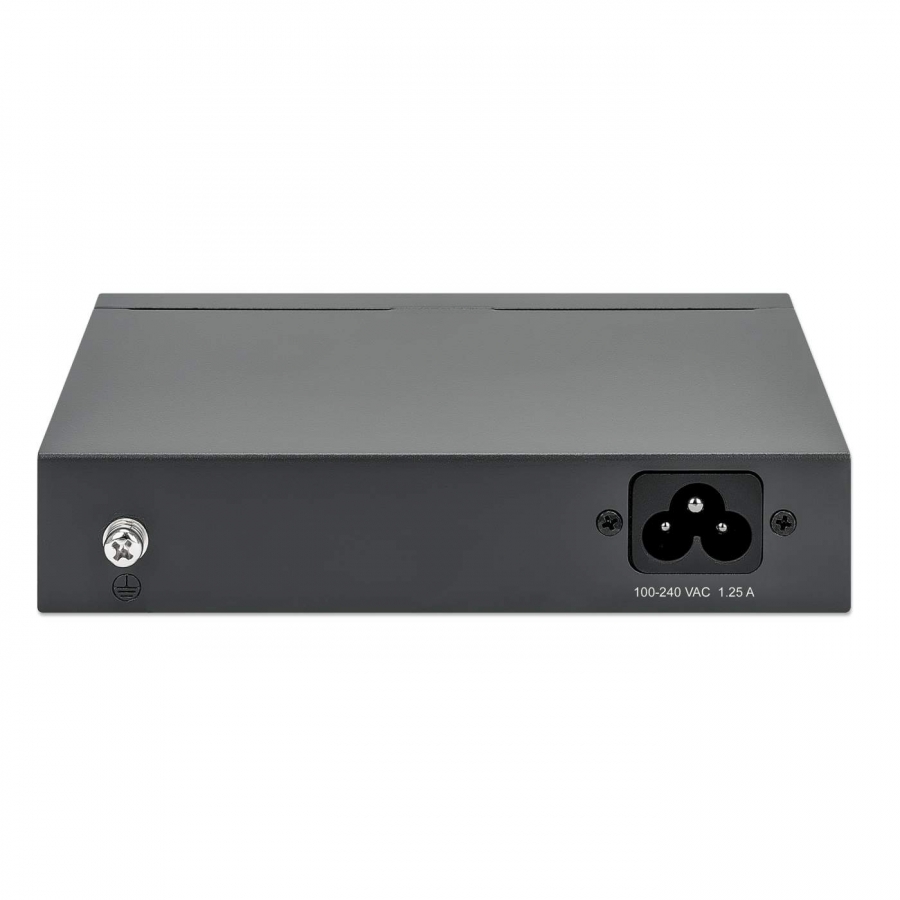

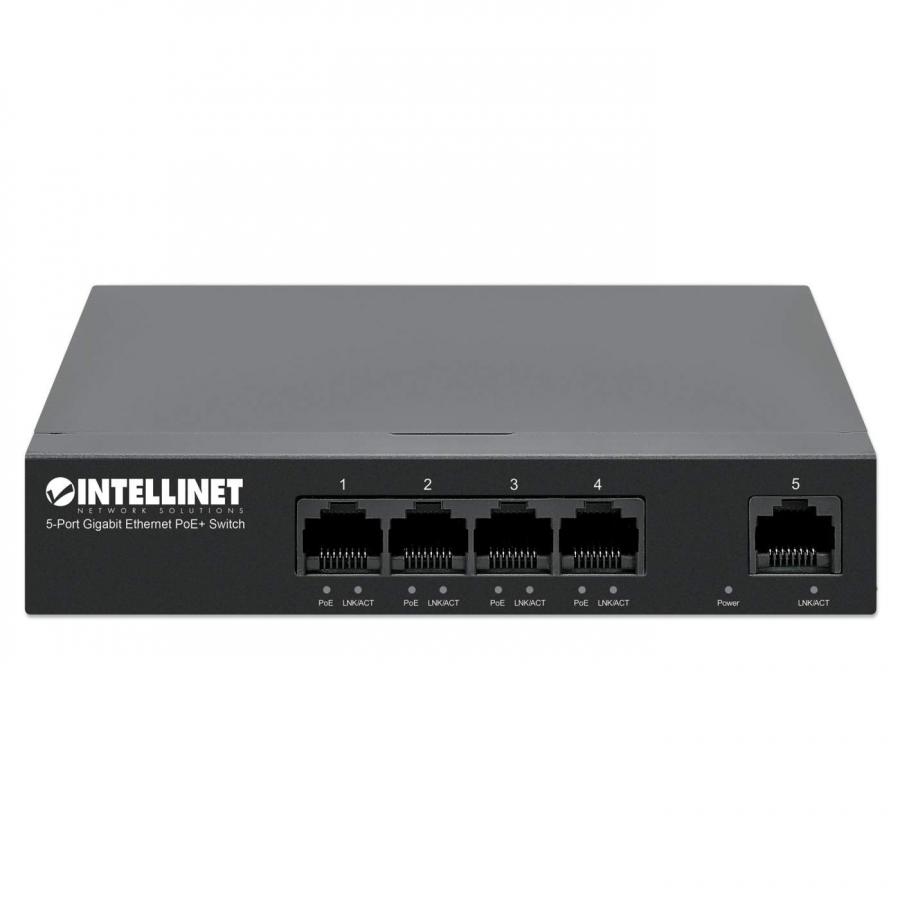

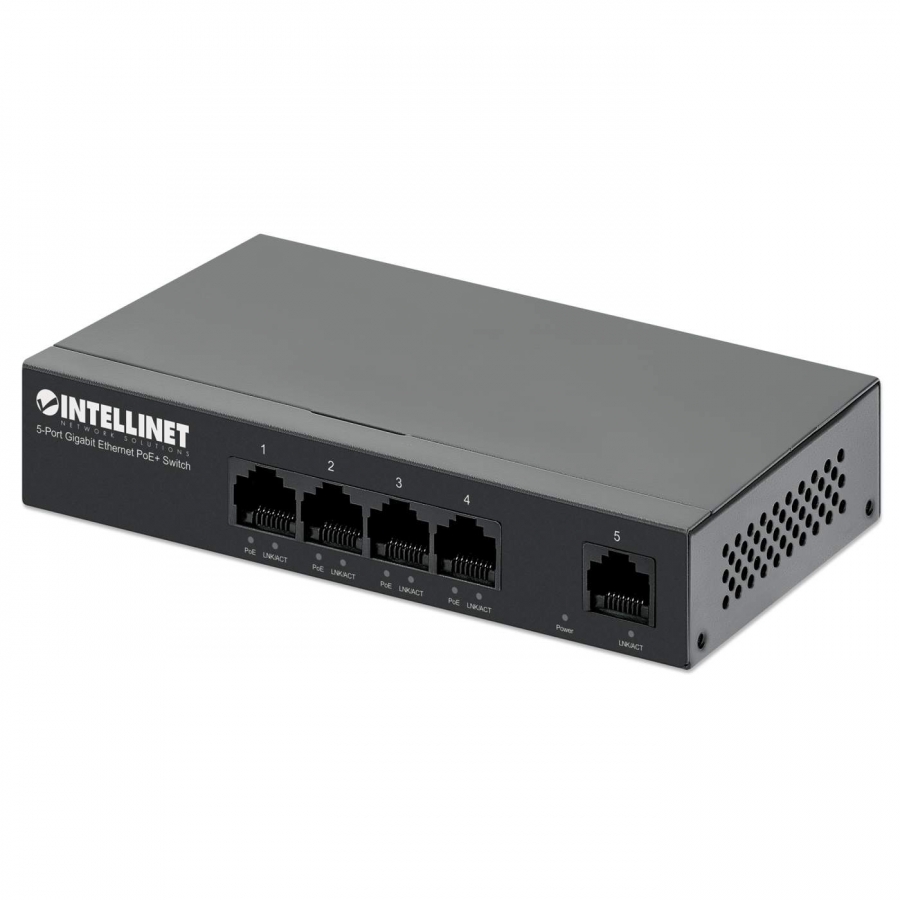

INTELLINET 5-Port Gigabit Ethernet PoE+ Switch 4x PSE PoE+

Kods 561792

Condition: Jauns

Vairāk informācijas

Save installation time and money with this 5-Port Gigabit Power over Ethernet Switch
The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports — four of which are high-power PoE+ PSE ports — this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 1000 Mbps.

Power over Ethernet IEEE 802.3at
The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	Nē
Cable types supported	Cat5e, Cat6, Cat6a
Full duplex	Jā
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Store-and-forward	Jā
Jumbo frames support	Jā
Jumbo frames	9000
Packet buffer memory	0.125 MB
Rack mounting	Nē
Stackable	Nē
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power
Wall mountable	Jā
Airflow direction	Side-to-side airflow
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA
NDAA Compliance	Jā
Power source	AC
Power supply included	Jā
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	1.5 A
Power over Ethernet (PoE)	Jā
Total Power over Ethernet (PoE) budget	40 W
Width	140 mm
Depth	77 mm
Height	27 mm
Weight	344 g
Cables included	AC
Manual	Jā
Packaging content	5-Port Gigabit Ethernet PoE+ Switch Power cable Instructions
Sustainability compliance	Jā
