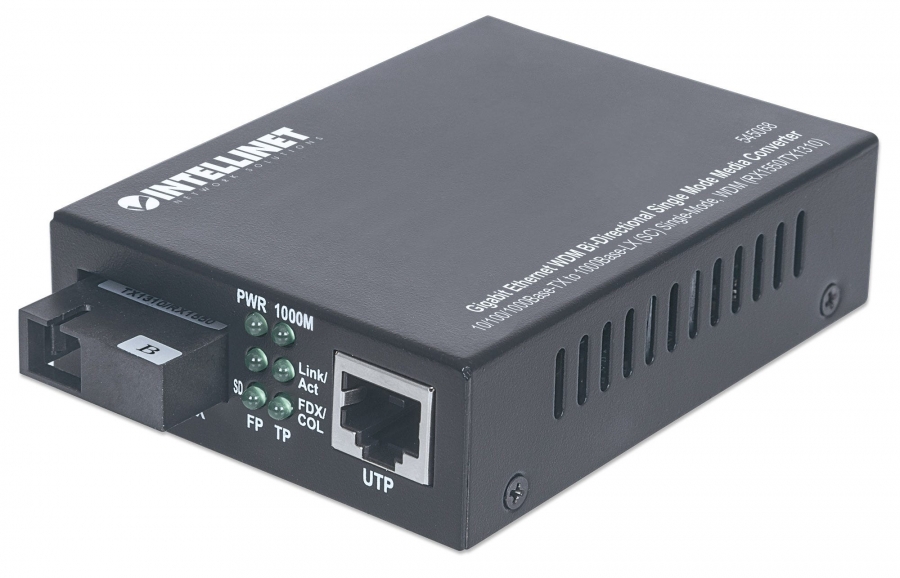

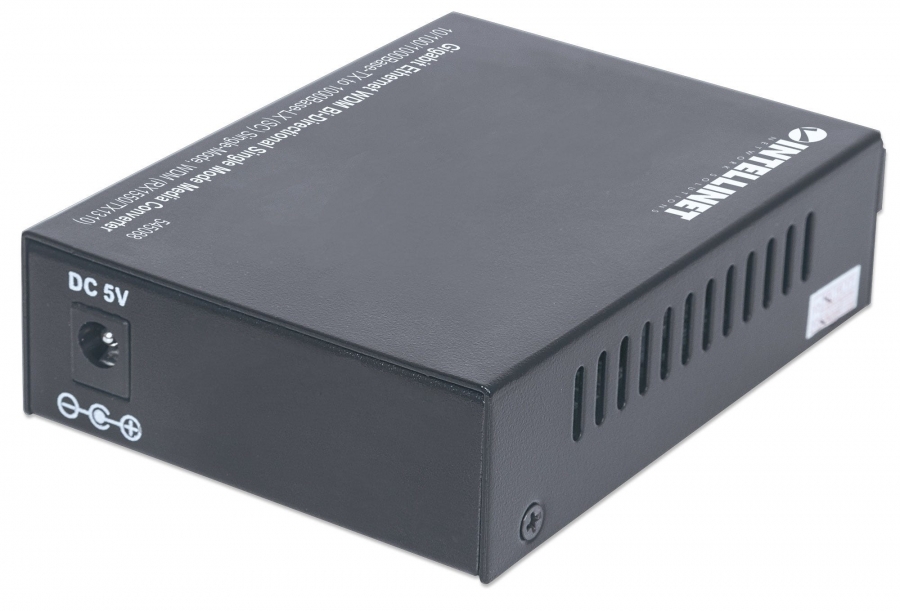

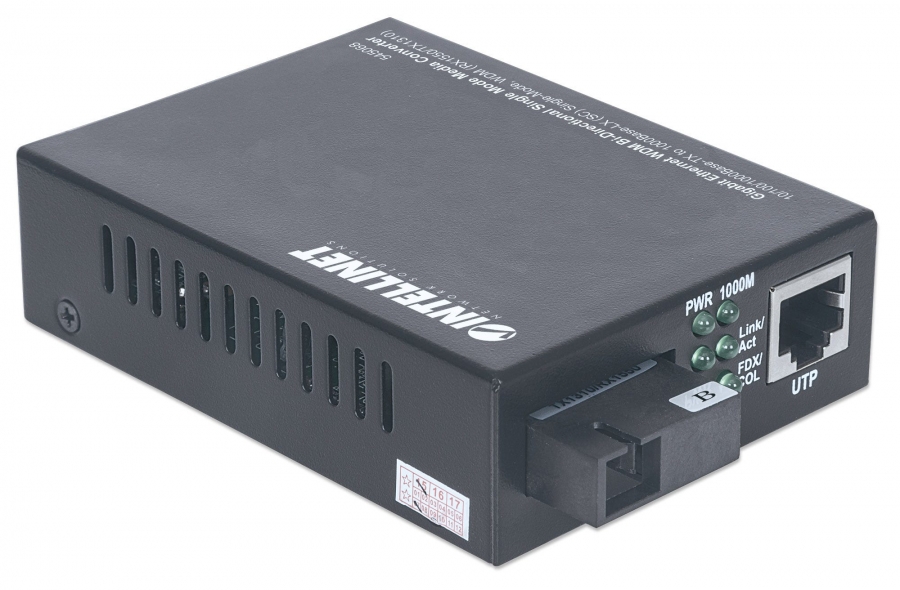

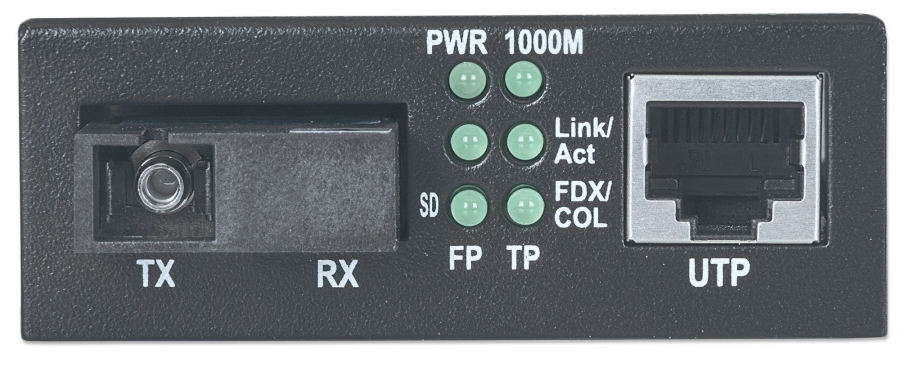

INTELLINET Medienkonverter Gigabit Singlemode 20km RX 1550

Kods 545068

Condition: Jauns

Vairāk informācijas

The Intellinet Network Solutions Gigabit Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1550/1310 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fibre cable. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. Expands the Size of an Existing Network This converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Maximum data transfer rate	1000 Mbit/s
Converter input interface	10Base-T, 100Base-TX, 1000Base-TX
Converter output interface	1000Base-LX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Fiber ethernet cabling technology	1000BASE‑LX
Auto MDI/MDI-X	Y
Duplex system	Full
Cable types supported	Cat5
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Y
Maximum transfer distance	20000 m
Wavelength-division multiplexing (WDM)	Y
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	8.3/125,8.7/125,8/125,10/125 µm
Tx power (min)	-8 dBmW
Tx power (max)	-3 dBmW
Sensitivity	-22 dBmW
Mean time between failures (MTBF)	100000 h
Internal	N
LED indicators	Y
Product colour	Black
Housing material	Metal
Certification	FCC Class A, CE
Output voltage	5 V
Output current	1.2 A
Power consumption (max)	5 W
External power adapter	Y
Width	69 mm
Depth	105 mm
Height	25 mm
Weight	180 g
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 80%
AC adapter included	Y
Manual	Y
Harmonized System (HS) code	85176990
