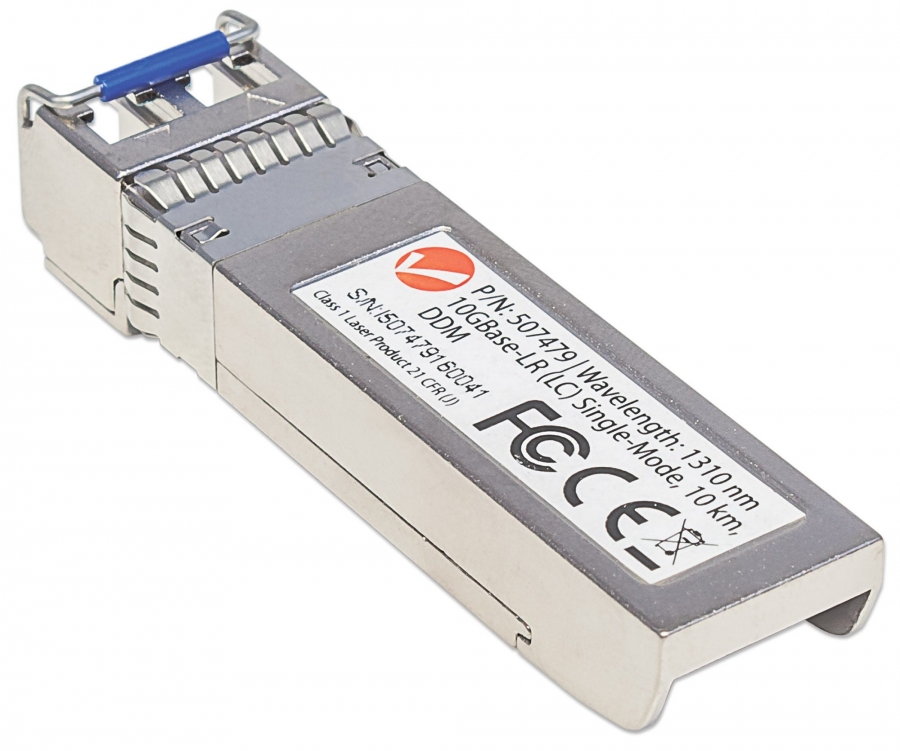

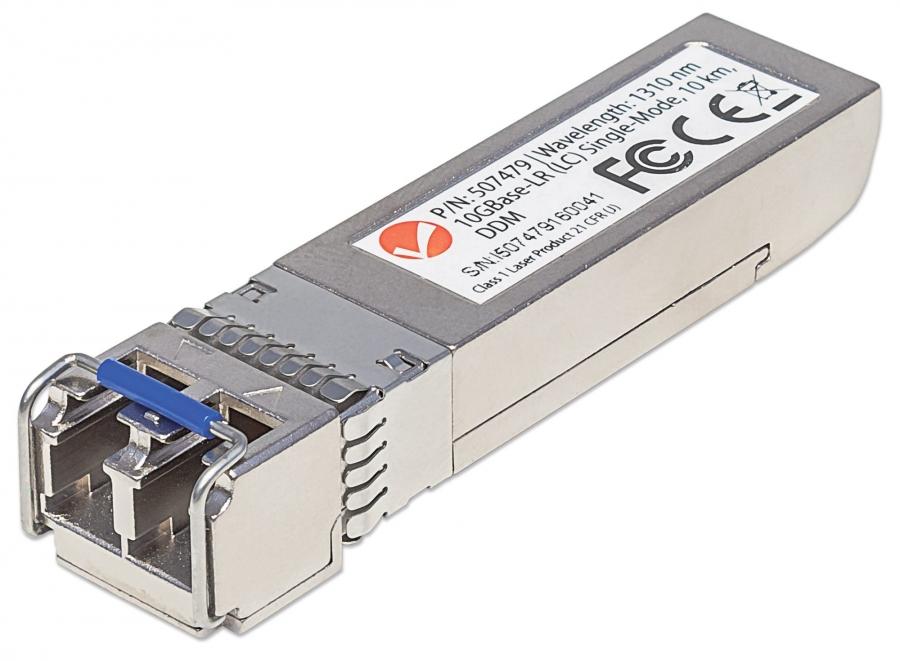

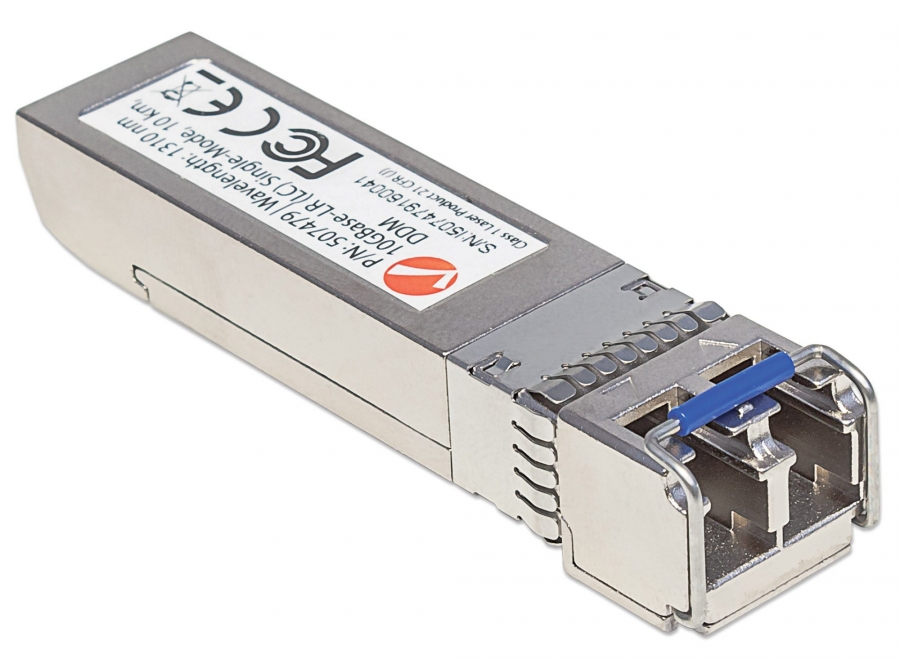

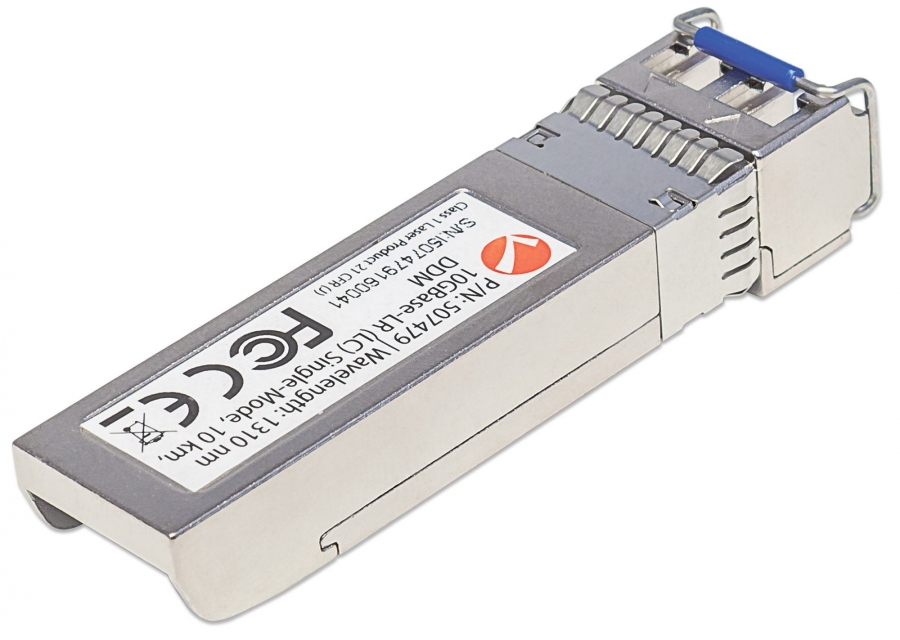

INTELLINET Transceiver SFP+ 10G Singlemode Duplex LC 10km

INTELLINET

507479

Jauns

10GBase-LR Gigabit Fibre SFP+ Optical Transceiver Module The new line of Intellinet Network Solutions Enhanced Small Form Factor Pluggable (SFP+) Transceivers provides customers with a combination of high-performance and affordability. These SFP+ transceiver modules come in a metal housing that reduces electromagnetic interference and increases their durability. 10 Gigabit Connectivity Intellinet Network Solutions 10GBase-LR Fibre SFP+ Optical Transceiver Module, model 507479, is the right choice when it comes to connecting two buildings at 10 GbE speeds with single mode fibre. That's a 10 Gbps connection up to a distance of 10 km (or 6.2 miles). Small Size for High-Density Fibre Connections The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. Compatibility Compatibility in your network is everything, and the Intellinet Network Solutions SFP+ Transceiver Module (model 507479) delivers. Use it with any Intellinet Network Solutions SFP+ equipped network switch or any other MSA compliant SFP+ enabled switch. And since the Intellinet Network Solutions SFP+ transceiver module is set to broadcast the vendor pn SFP-10G-LR, compatibility to your Cisco gear is provided. Hot-Pluggable The Intellinet Network Solutions 10 Gigabit Fibre SFP+ Optical Transceiver Module (model 507479) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. Digital Diagnostics Monitoring (DDM) The Intellinet Network Solutions 10 Gigabit Fibre SFP+ Optical Transceiver Module (model 507479) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

SFP transceiver typeFiber optic
Maximum data transfer rate11100 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
SFP transceiver standardLR
Maximum transfer distance10000 m
Wavelength1310 nm
Tx power (min)-5 dBmW
Link budget8 dB
Networking standardsIEEE 802.3ae, IEEE 802.3z
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Y
Product colourSilver
Hot-Plug supportY
CertificationFCC Class B, CE Mark, IEC-60825
Maximum voltage3.3 V
Power consumption (typical)1 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Width14 mm
Depth57 mm
Height12 mm
Weight37 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
