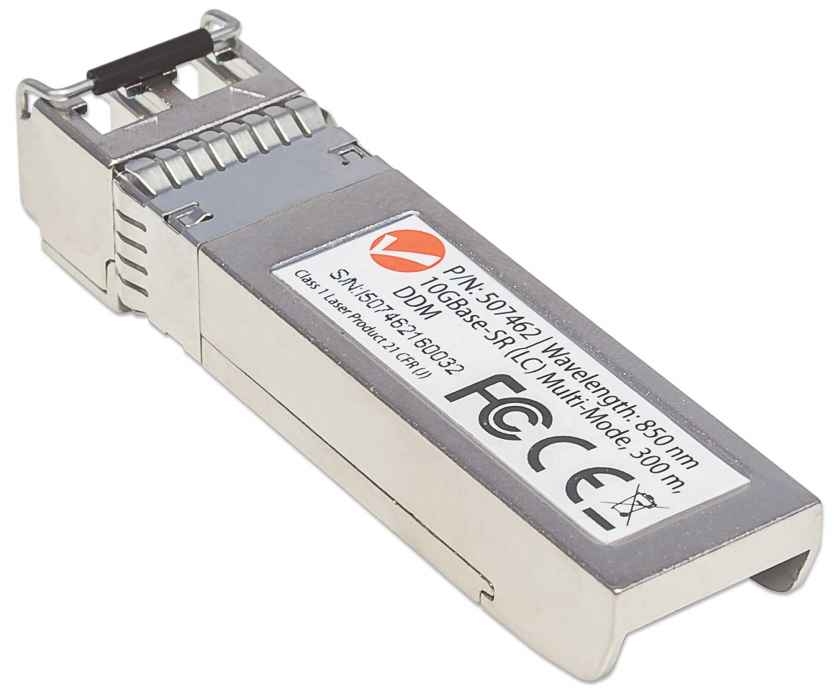

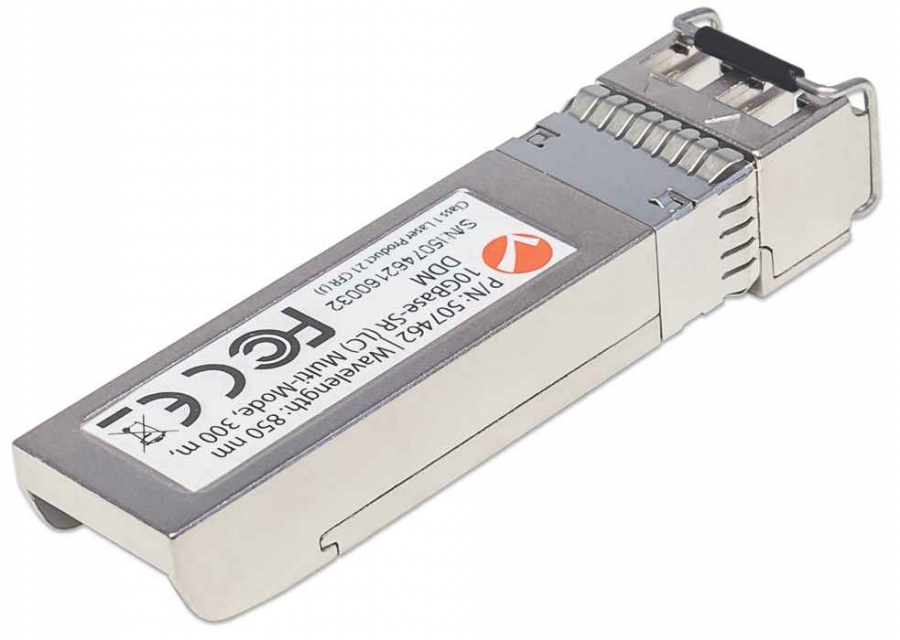

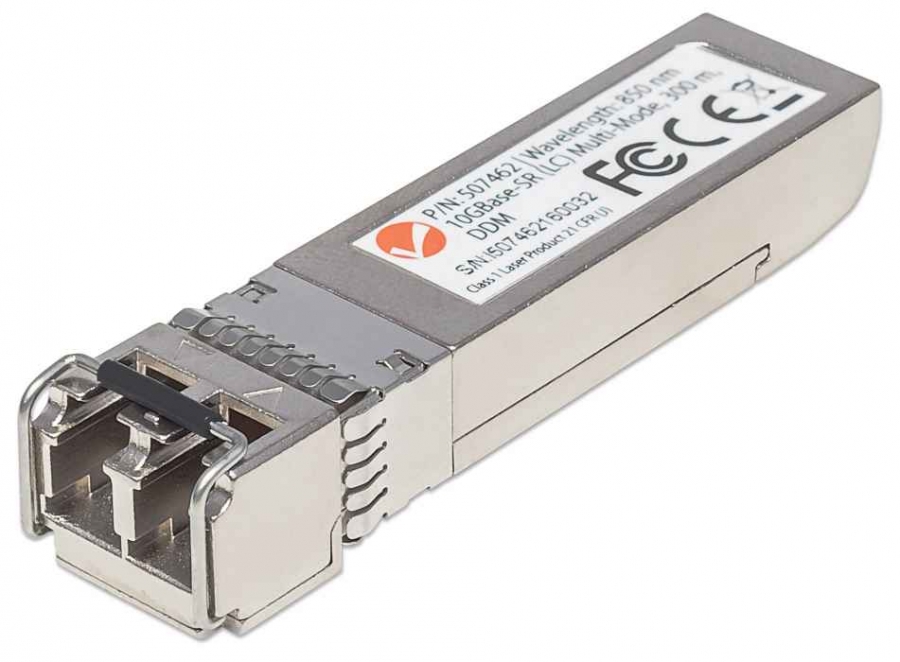

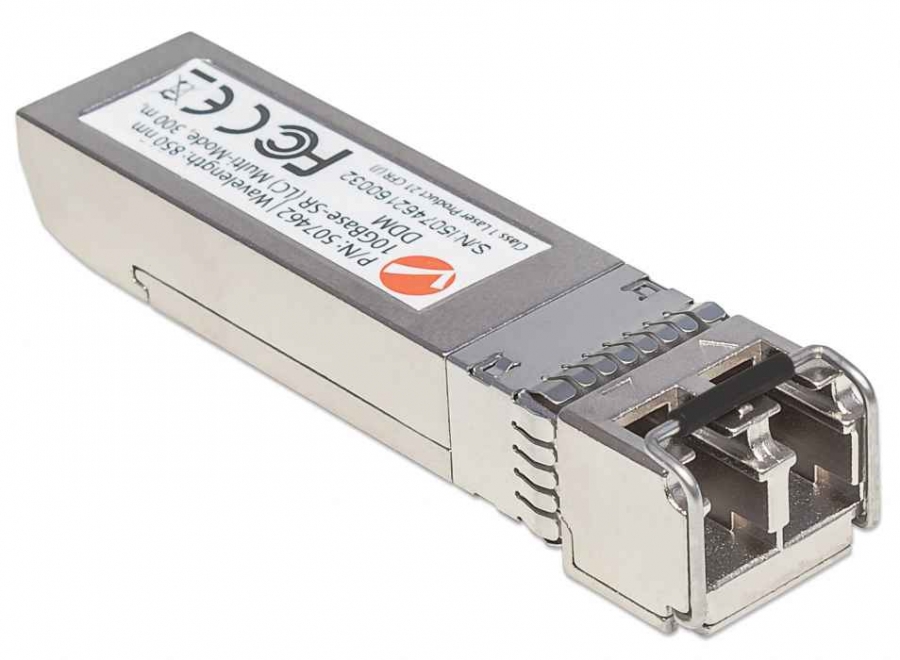

INTELLINET Transceiver SFP+ 10G Multimode Duplex LC 300m

INTELLINET

507462

Jauns

10GBase-SR Gigabit Fibre SFP+ Optical Transceiver Module_x000D_ _x000D_ _x000D_ The new line of Intellinet Network Solutions Enhanced Small Form Factor Pluggable (SFP+) Transceivers provides customers with a combination of high-performance and affordability. These SFP+ transceiver modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_ _x000D_ _x000D_ 10 Gigabit Connectivity_x000D_ _x000D_ Whether you need a fast connection to your 10 GbE equipped server or NAS device, or if you simply want to connect two Gigabit switches in your data centre at higher speeds to eliminate bottlenecks, the Intellinet Network Solutions 10GBase-SR Fibre SFP+ Optical Transceiver Module, model 507462, is the right choice. _x000D_ _x000D_ _x000D_ Small Size for High-Density Fibre Connections_x000D_ _x000D_ The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_ _x000D_ _x000D_ Compatibility_x000D_ _x000D_ Compatibility in your network is everything, and the Intellinet Network Solutions SFP+ Transceiver Module (model 507462) delivers. Use it with any Intellinet Network Solutions SFP+ equipped network switch or any other MSA compliant SFP+ enabled switch. And since the Intellinet Network Solutions SFP+ transceiver module is set to broadcast the vendor pn SFP-10G-SR, compatibility to your Cisco gear is provided. _x000D_ _x000D_ _x000D_ Hot-Pluggable_x000D_ _x000D_ The Intellinet Network Solutions 10 Gigabit Fibre SFP+ Optical Transceiver Module (model 507462) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_ _x000D_ _x000D_ Digital Diagnostics Monitoring (DDM)_x000D_ _x000D_ The Intellinet Network Solutions 10 Gigabit Fibre SFP+ Optical Transceiver Module (model 507462) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

SFP transceiver typeFiber optic
Maximum data transfer rate11100 Mbit/s
Interface typeSFP+
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
SFP transceiver standardSR
Maximum transfer distance300 m
Wavelength850 nm
Tx power (min)-5 dBmW
Tx power (max)-1 dBmW
Link budget7 dB
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3ae, IEEE 802.3z
Fiber ethernet cabling technology10GBASE-SR
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Y
Product colourSilver
Hot-Plug supportY
CertificationFCC Class A, CE Mark, IEC-60825, RoHS, NDAA
Maximum voltage3.3 V
Power consumption (typical)1 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Width14 mm
Depth57 mm
Height12 mm
Weight37 g
Number of products included1 pc(s)
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
