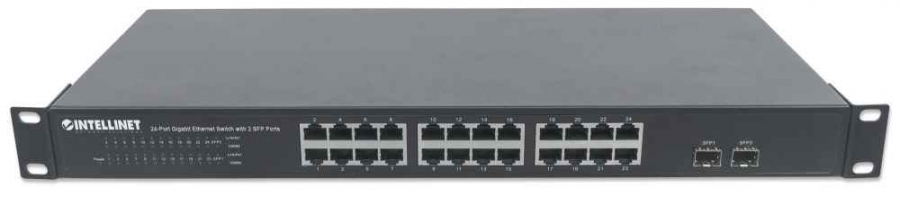

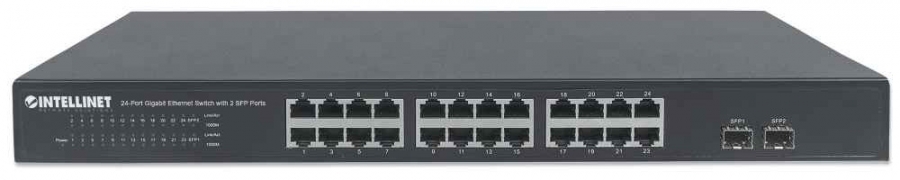

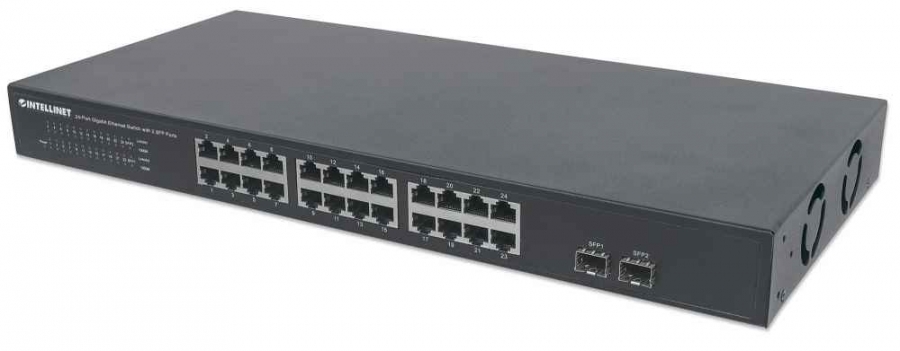

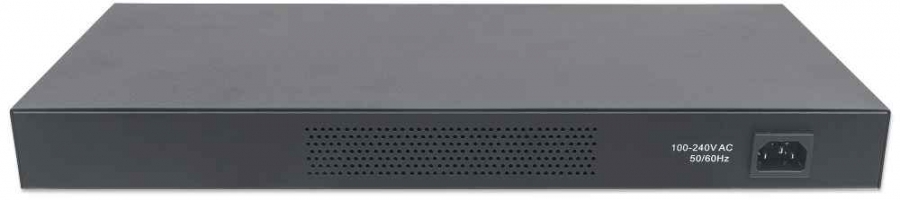

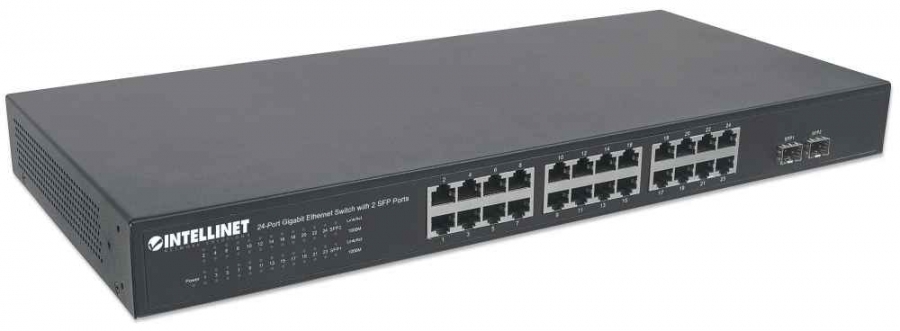

INTELLINET Switch 24x GE Rackmount 2x SFP

INTELLINET

561044

Jauns

Boost your network speed. _x000D_ _x000D_ The Intellinet Network Solutions Gigabit Ethernet Rackmount Switch, model 561044, offers an array of features while providing superior network throughput. _x000D_ _x000D_ Extreme Flexibility _x000D_ Twenty-four 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds. _x000D_ _x000D_ Eliminate Bottlenecks with 26 Gigabit Ports _x000D_ Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fibre connectivity for greater distances. These are not shared combo-ports, but true Gigabit ports, pushing the total available bandwidth up to 52 Gbps.

Switch typeUnmanaged
Switch layerL2
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
SFP module slots quantity2
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Full duplexY
Flow control supportY
Auto MDI/MDI-XY
Auto-sensingY
Auto-negotiationY
MAC address auto-learning supportedY
MAC address auto-aging supportedY
MAC address table8192 entries
Switching capacity52 Gbit/s
Forwarding rate1.488 Mpps
Store-and-forwardY
Jumbo frames supportY
Jumbo frames9000
Rack mountingY
Form factor1U
Product colourBlack
Housing materialMetal
LED indicatorsY
CertificationFCC Class A, CE
Buffer size512 KB
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)20 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Width440 mm
Depth208 mm
Height44 mm
Weight3 kg
Cables includedAC
ManualY
Mounting brackets includedY
Rack mount kitY
Harmonized System (HS) code85176990
