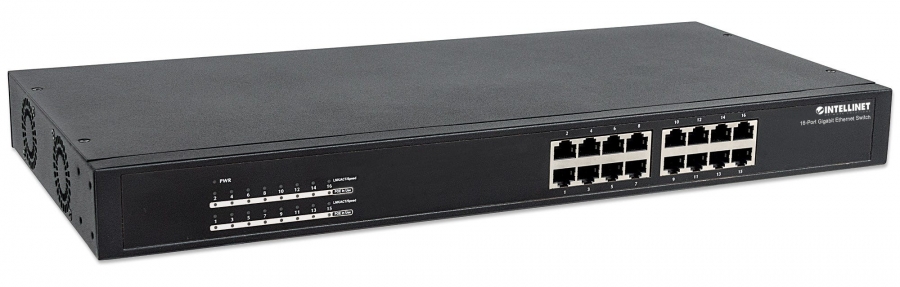

INTELLINET Switch 16x GE Rackmount PoE+

Kods 560993

Condition: Jauns

Vairāk informācijas

Save installation time and money with PoE. The Intellinet Network Solutions 16-Port Gigabit Ethernet Rackmount PoE+ Switch (560993) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 16 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps. Power over Ethernet 802.3at The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. Extreme Throughput With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices. * Total PoE budget for this switch is 220 watts.

Switch type	Unmanaged
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Forwarding rate	1.488 Mpps
Store-and-forward	Y
Rack mounting	Y
Form factor	1U
Product colour	Black
Housing material	Metal
LED indicators	Y
Certification	FCC Class B, VCCI Class A, CE, RoHS
Buffer size	256 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power protection features	Over voltage, Overload, Short circuit
Power over Ethernet (PoE)	Y
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Width	442 mm
Depth	208 mm
Height	44 mm
Weight	3.8 kg
Cables included	AC
Manual	Y
Rack mount kit	Y
Harmonized System (HS) code	85176990
