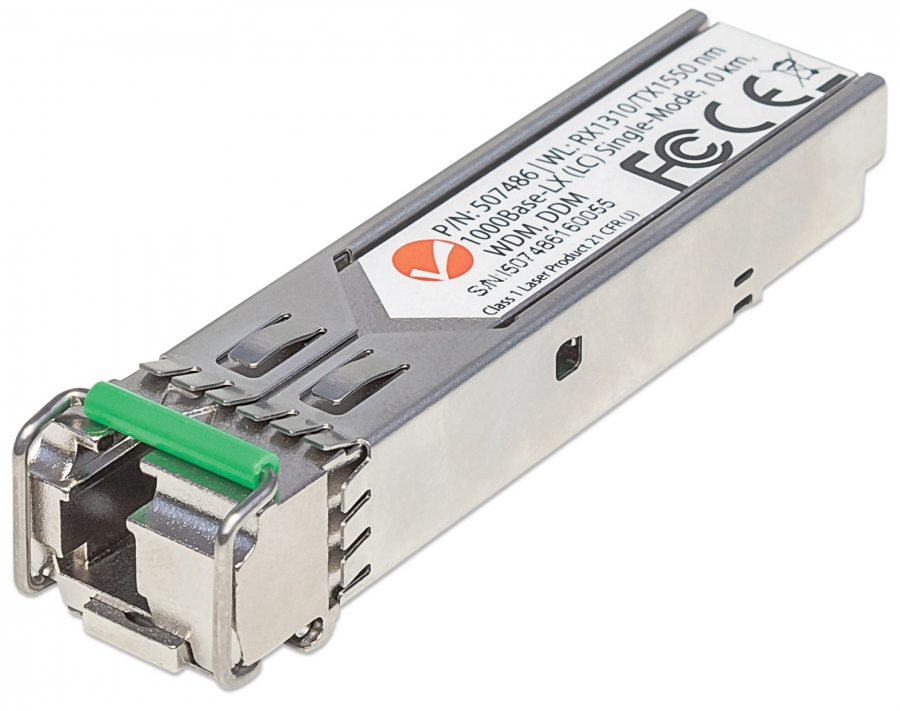

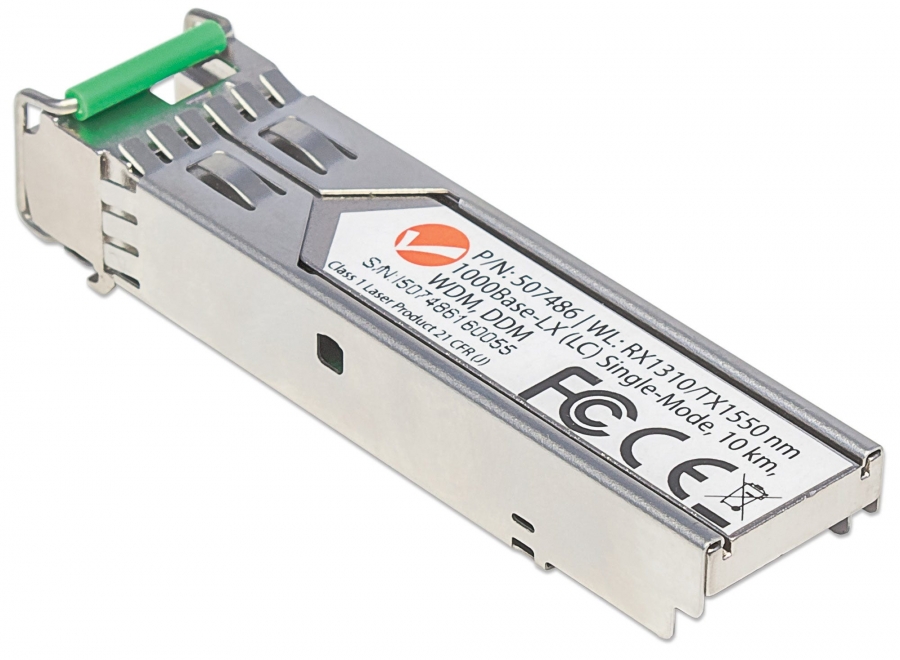

INTELLINET Gigabit SFP Tranceiver LWL 1000Base Mini Gbic

INTELLINET

507486

Jauns

Gigabit Fibre SFP Optical Transceiver Module _x000D_ _x000D_ The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_ _x000D_ Small Size for High-Density Fibre Connections _x000D_ The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_ _x000D_ Compatibility _x000D_ Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 507486) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-BX-D, compatibility to your Cisco gear is provided. _x000D_ _x000D_ Hot-Pluggable _x000D_ The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_ _x000D_ Digital Diagnostics Monitoring (DDM) _x000D_ The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time. _x000D_ _x000D_ WDM (bi-directional wavelength division multiplexing) Technology Advantage _x000D_ The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver (model 507486) must be used in conjunction with item 507509.

SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance10000 m
Tx wavelength (max)1310 nm
Rx wavelength (max)1550 nm
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Link budget16 dB
Ethernet LANY
Networking standardsIEEE 802.3z
Cabling technology1000Base-LX
Duplex systemFull
Fiber ports quantity1
Product colourMetallic
Hot-Plug supportY
Power consumption (typical)1 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Width14 mm
Depth57 mm
Height12 mm
Weight37 g
Number of products included1 pc(s)
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
RX sensitivity-24 dB
