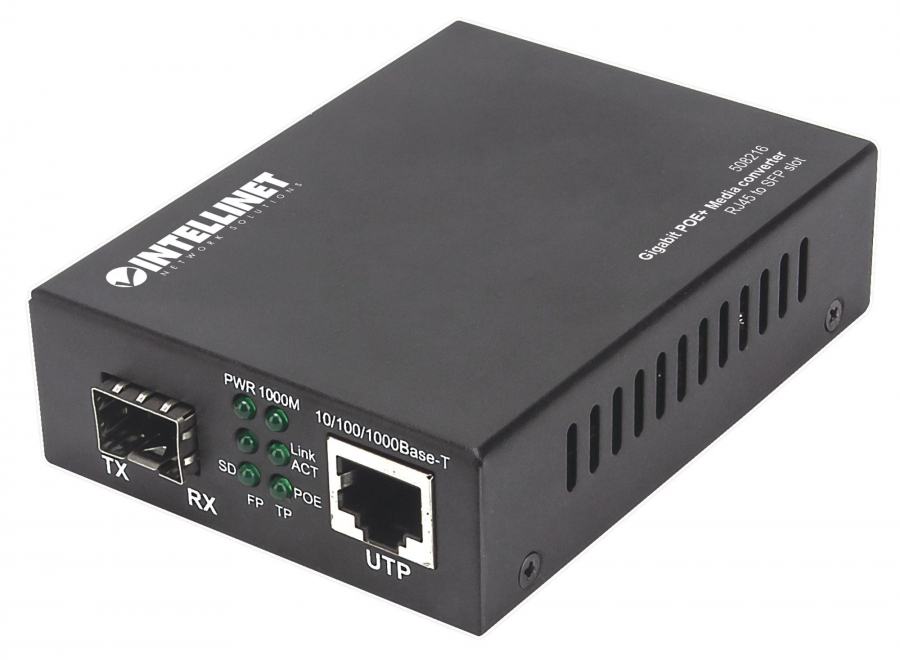

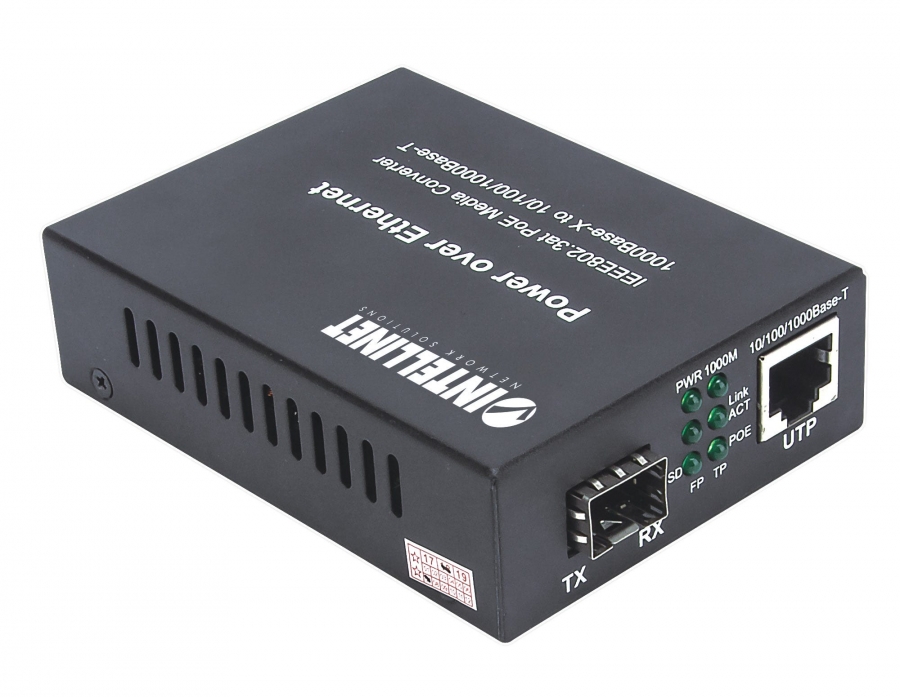

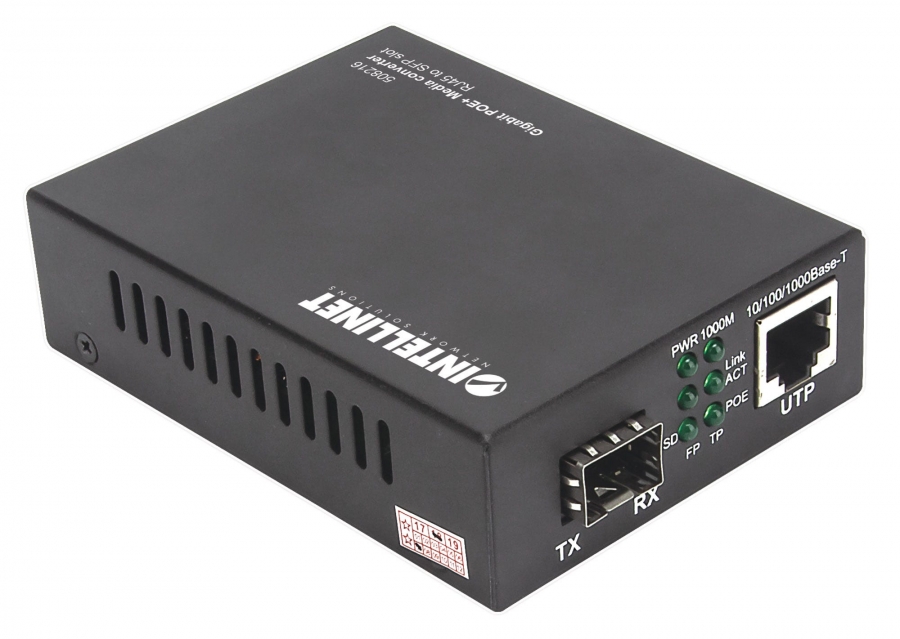

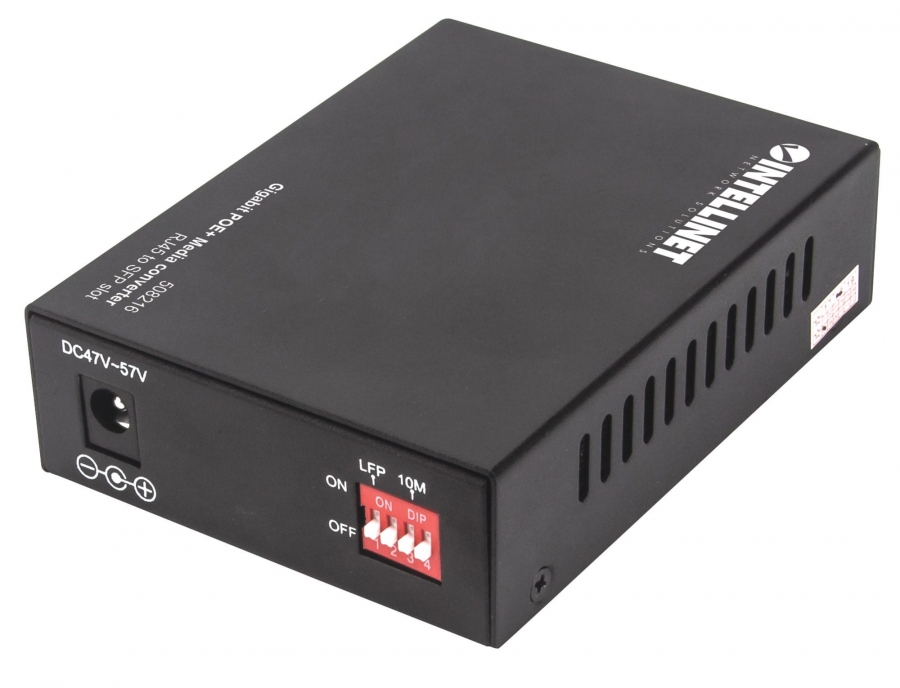

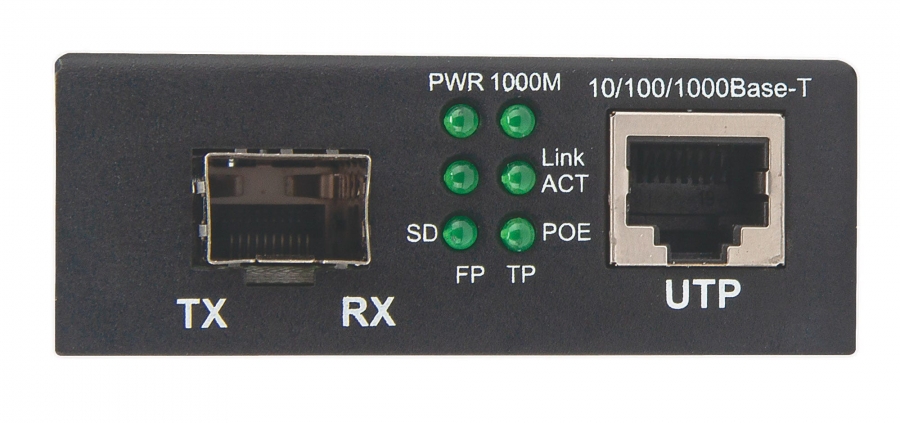

INTELLINET Gigabit PoE + Medienkonverter RJ45 SFP 120km

Kods 508216

Condition: Jauns

Vairāk informācijas

The Intellinet Network Solutions Gigabit PoE+ Media Converter offers simplified migration from copper-based Ethernet to Fibre Ethernet while providing power to a compatible device at up to 30 watts. The device creates the easy expansion of existing networks with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.Expand the Size of an Existing Network.The converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Since it offers building-to-building connectivity without the cost and disruption associated with the installation of additional routers, network admins can quickly incorporate this converter into their current setup and keep the network running like it should.Power-over-Ethernet-Plus CapableThe Intellinet Gigabit PoE+ Media Converter brings power to where there is none, obviating the need to hire an electrician and run electrical lines. And because the converter supports the IEEE 802.3at / 802.3af standard, up to 30 watts is available for any compatible device.Cabling FlexibilityNetwork managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Duplex system	Full, Half
Cable types supported	Cat5
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Y
Maximum transfer distance	120000 m
Internal	N
LED indicators	Activity, Link, PoE, Power
Product colour	Black
Housing material	Metal
International Protection (IP) code	IP30
Certification	FCC 15
Input voltage	56 V
Input current	0.5 A
Power over Ethernet (PoE)	Y
Width	70 mm
Depth	95 mm
Height	25 mm
Weight	200 g
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 80%
AC adapter included	Y
Manual	Y
Harmonized System (HS) code	85176990
