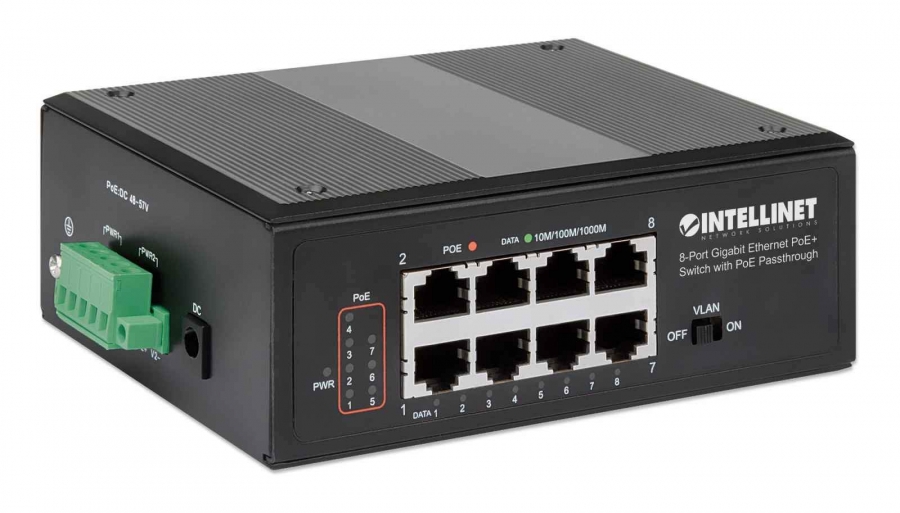

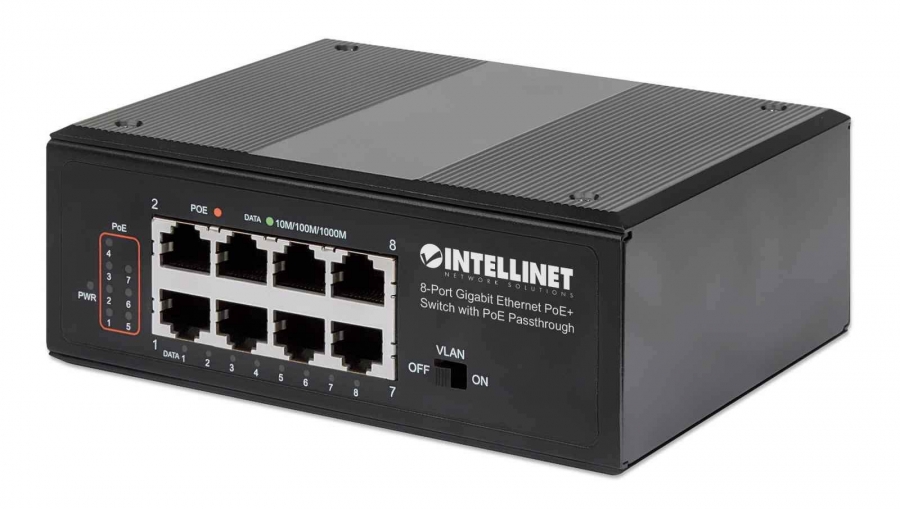

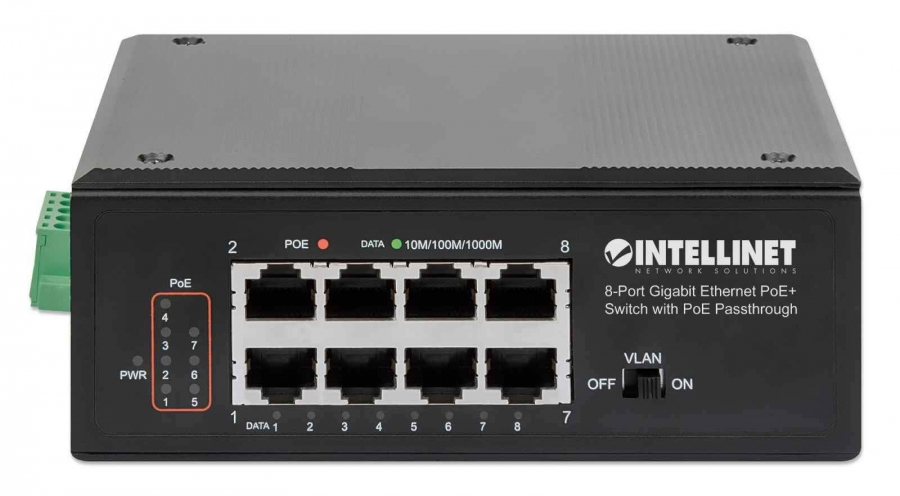

INTELLINET 8-Port PoE+ Gigabit Switch mit PoE-Passthrough

Kods 561624

Condition: Jauns

Vairāk informācijas

The PoE Passthrough Industrial Switch — Save installation costs with PoE and get the most out each PoE connection The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to PoE-compatible devices via network cables. Its PD port even supports power input from the latest Ultra PoE sources, easily handling up to 95 W. Equipped with eight Gigabit Ethernet ports, this switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter.Usable as a PoE extender Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls. This Switch can also accept power through a DC power adapter or an industrial power supply, providing up to 120 W to compatible devices.Ideal for harsh industrial environments With its rugged, protective metal housing, the switch operates reliably and quietly, even in extreme temperatures from -20 to 75℃ (-4 – 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	N
Cable types supported	Cat5e
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-sensing	Y
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
VLAN support	Y
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9200
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Product colour	Black
LED indicators	Activity, Link, PoE, Power

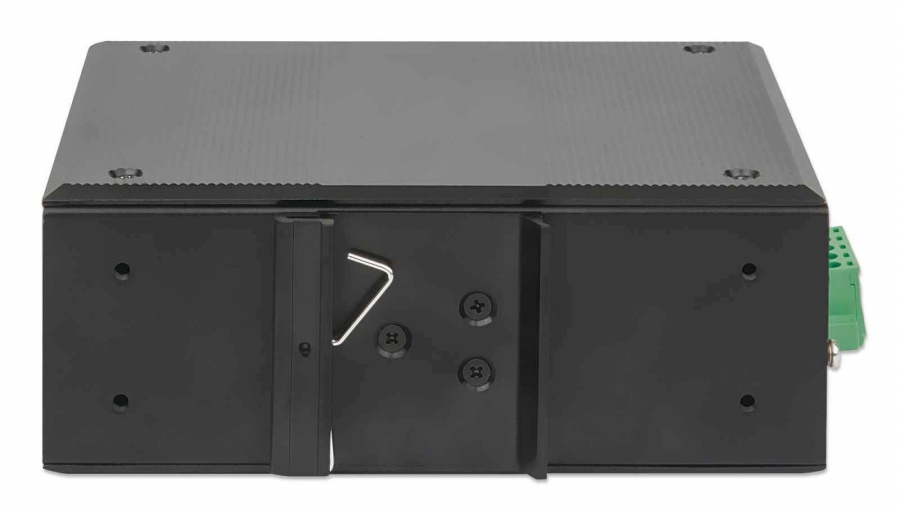

DIN rail mounting	Y
Certification	FCC B, CE, RoHS
Fanless	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	48 - 57 V
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	-20 - 75 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	138 mm
Depth	108 mm
Height	50 mm
Weight	673 g
User guide	Y
Harmonized System (HS) code	85176990
