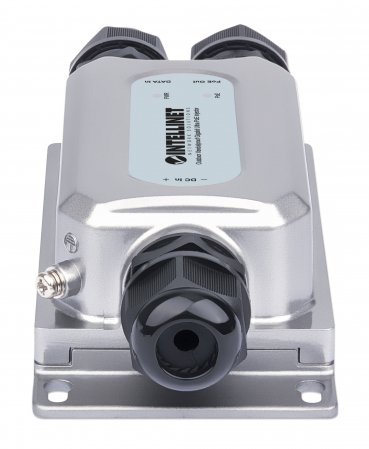

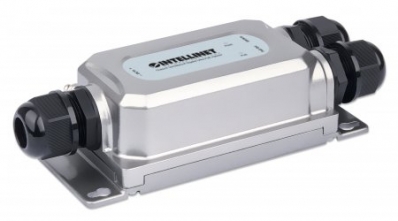

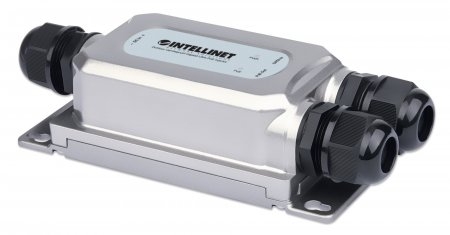

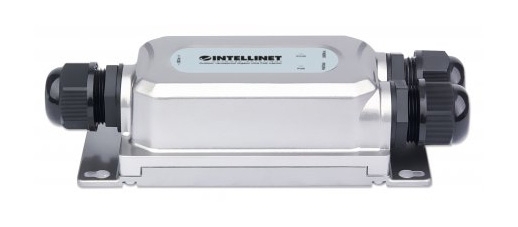

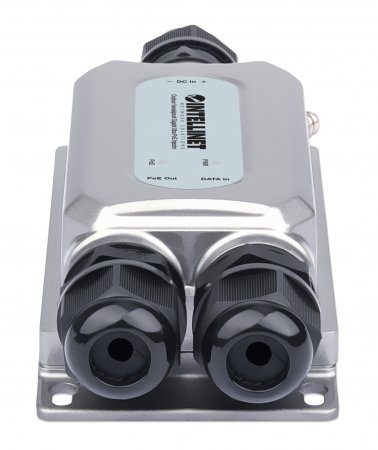

Outdoor Gigabit PoE++ Injector - 60 W for an IEEE 802.3bt Powered Device The Intellinet Network Solutions Outdoor Vandalproof Gigabit PoE++ Injector lets you connect your IEEE 802.3bt/af/at-compliant wireless access point, IP phone, network camera and more to a non-PoE LAN switch port so it can supply both a power and a network connection up to 100 meters (328 ft.) away. This 4PPoE injector has an output power rating up to 60 watts, which is enough for even very power-hungry PoE++ devices like motorized PTZ cameras, thin clients, point-of-sale systems, lighting controllers and digital signage applications.Hardened design for outdoor and industrial use This PoE++ injector is the right power and data connector for its suitability to a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating, vast operating temperature range of -40 – 75°C (-4 – 140°F) and vandal-proof IK10 score make this Power over Ethernet injector able to withstand harsh conditions and industrial environments. Beyond that, it has rating for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6).Reduced wiring costs There's no need to run AC power lines to get your PD set up and working. Once you've quickly wired DC power to the injector through its two-pin terminal block, simply connect this Ultra PoE Injector to the LAN switch port, and use the existing Cat5/6/6a cabling to deliver power as well as transfer data at 10/100/1000 Mbps speeds up to 100 m (328 ft.).Safe protection for your expensive network equipment The auto-sensing technology of this high-power PoE Injector ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages. Port surge protection up to 6 kV and ESD protection up to 8 kV make its safety complete.Wall-mount option For full installation flexibility indoors or outdoors, you can mount the injector on the wall through its four built-in holes. The required mounting kit comes included in the package.
|
| Ethernet interface type | Gigabit Ethernet | | Ethernet LAN data rates | 10,100,1000 Mbit/s | | Power over Ethernet (PoE) | Y | | Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u | | Cable types supported | Cat5e, Cat6, Cat6a | | Product colour | Black, Grey | | Plug and Play | Y | | Surge protection | Y | | Maximum operating distance | 100 m | | LED indicators | Y | | Terminal block port | Y | | Power protection features | Over voltage, Overload, Short circuit | | International Protection (IP) code | IP67 | | Certification | FCC Class A, CE, RoHS | | RJ-45 input ports | 1 | | RJ-45 output ports | 1 | | Output power | 60 W | | Input voltage | 24 - 56 V | | Input current | 3.05 A | | Output current | 1.2 A | | Power consumption (max) | 72 W | | DC output voltage | 55 V | | Surge protection voltage | 6 kV | | Operating temperature (T-T) | -40 - 75 °C | | Operating relative humidity (H-H) | 10 - 90% | | Storage temperature (T-T) | -40 - 80 °C | | Storage relative humidity (H-H) | 5 - 90% | | Width | 73 mm | | Depth | 150 mm | | Height | 44 mm | | Weight | 475 g | | Number of products included | 1 pc(s) | | Manual | Y | | Harmonized System (HS) code | 85044095 |
|
