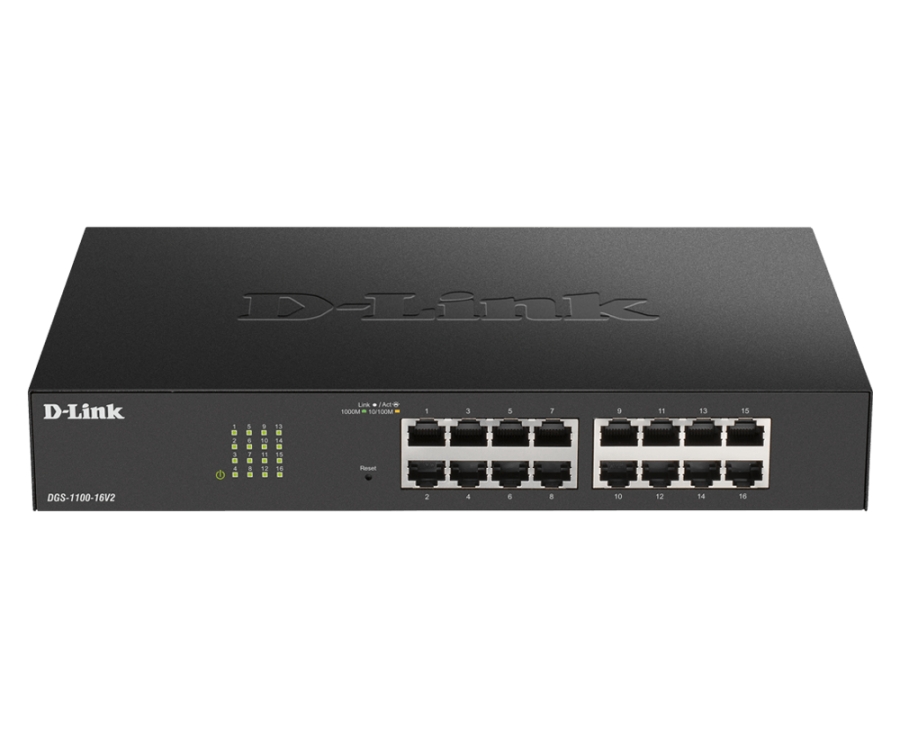

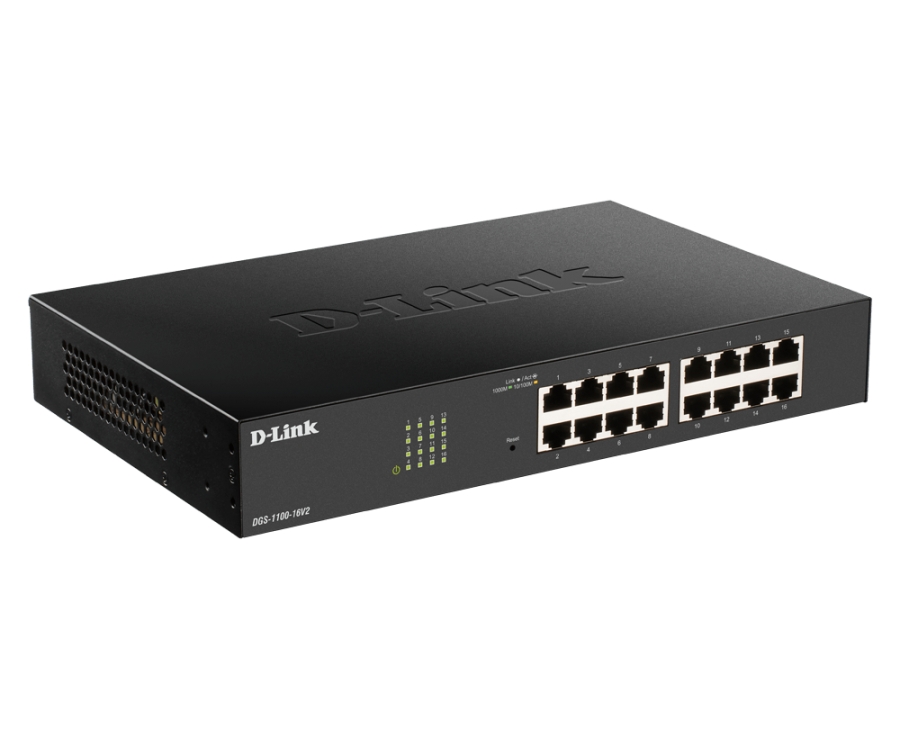

Switch 280mm D-Link DGS-1100-16V2 16*GE retail

Manufacturer: D-LINK

Kods DGS-1100-16V2

Condition: Jauns

Vairāk informācijas

Powerful Switching for your Business The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.Gigabit Ethernet Speeds Take your Ethernet speeds to the next level with Gigabit ConnectivityCutting Edge Green Technology Innovative D-Link Green power saving features keep your budget in checkManage Anywhere, Anytime Remote setup & management is easy, and can be done from anywhere.Easy to Use & Easy to Install D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.VLANs: Stronger Security & Better Traffic Management Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.For Voice If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.For Surveillance If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
System event log	Y
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Copper ethernet cabling technology	10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN, Voice VLAN
Number of VLANs	128
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Y
Number of queues	4
Jumbo frames support	Y
Jumbo frames	9216
Packet buffer memory	4.1 MB
DHCP features	DHCP client
IGMP snooping	Y
Security algorithms	SNMP, SSL/TLS
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
Multicast support	Y
Rack mounting	Y
Product colour	Black
LED indicators	Y
Certification	EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
Built-in processor	Y
Processor frequency	125 MHz
Memory type	DRAM
Flash memory	16 MB
Fanless	Y
Mean time between failures (MTBF)	710519 h
AC input voltage	100 - 240 V
Power consumption (max)	10.1 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2000 m
Heat dissipation	34.46 BTU/h
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1.27 kg
Harmonized System (HS) code	85176990
