Delock Modular Wall Outlet 1 Port Cat.6

DELOCK

86169

Jauns

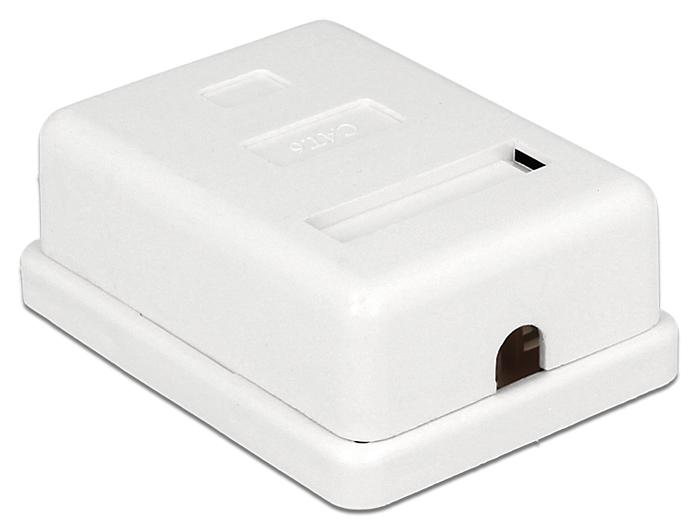

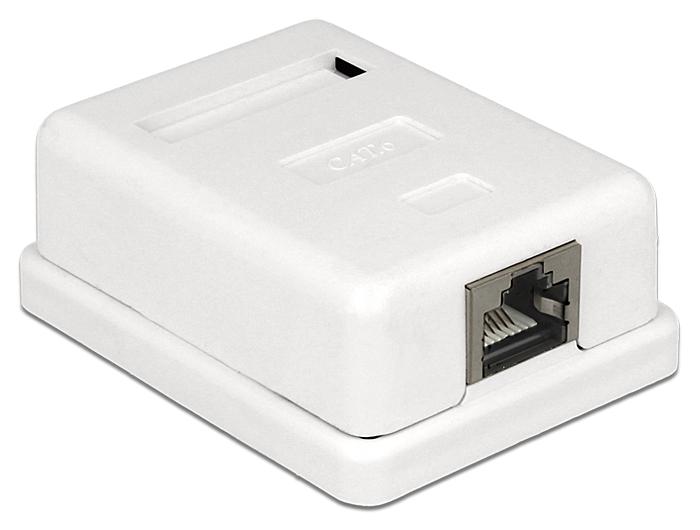

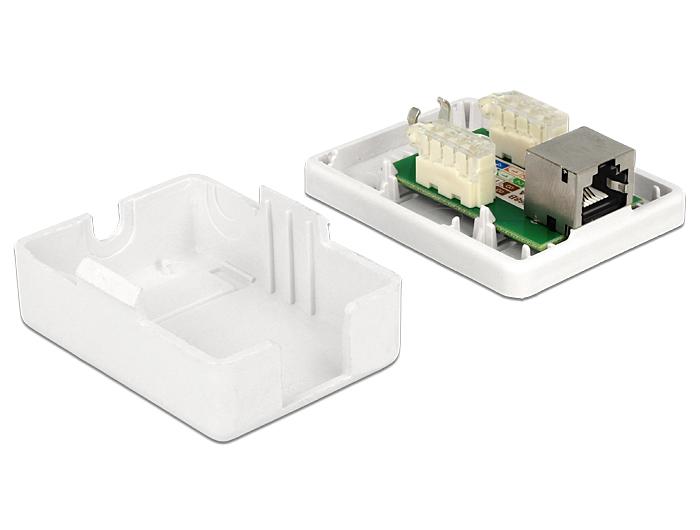

This surface mounted box by Delock can be used as a modular outlet on the wall or in enclosures. The LSA blocks can be used with a punch down tool; alternatively, a tool-free connection of the cable is possible.

More details

Description:
This surface mounted box by Delock can be used as a modular outlet on the wall or in enclosures. The LSA blocks can be used with a punch down tool; alternatively, a tool-free connection of the cable is possible.

Specification:
• Connectors:
external: RJ45 female
internal: LSA block (toolless)
• Cable routing 180°
• Shielded (Cat.6)
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 – 26 AWG)
• Integrated name plate
• Color: White
• Dimensions (LxWxH): ca. 66 x 50 x 25 mm

System requirements:


Package content:
• Modular Wall Outlet
• Adhesive pad, 45 x 25 mm
• Two screws
