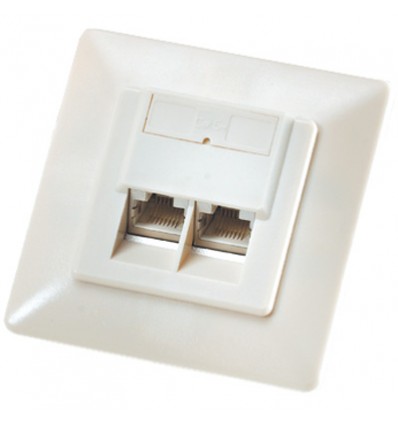

ROLINE Flush Mount Wall Jack, Cat.5e, unshielded white

ROLINE

25.16.8506

Jauns

  • The wall jackets are suitable for a transmission rate of 100Mbit/s and are fitted with two jacks
  • Fully screened box in a metal housing; provides high security against EMI
  • Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
  • 45° tilted plug assembly

For a structured unshielded...

More details

  • The wall jackets are suitable for a transmission rate of 100Mbit/s and are fitted with two jacks
  • Fully screened box in a metal housing; provides high security against EMI
  • Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
  • 45° tilted plug assembly

For a structured unshielded cabling system we recommend to use the following components:

ROLINE Cat.5e UTP Cable, Solid Wire, AWG24: 21.15.0512 (100 m), 21.15.0511 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, unshielded: 25.16.8506 (white), 25.16.8501 (ivory)/25.16.8406 (white), 25.16.8401 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, unshielded: 26.11.0349 (black), 26.11.0347 (light grey)
ROLINE Cat.5e UTP Patch Cord, grey, 5 m: 21.15.0505

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Assembly cable connectionKrone LSAplus
Cabinet systemnot applicable
Colourwhite
Connection direction45°-inclination
Conveyance goodNo
ManufacturerROLINE
Manufacturer Item No.25.16.8506
Material (casing)Plastic
Modular assemblyNo
Product groupConnection technology TP
Quantity of ports2
separate strain reliefYes
Shield contactsYes
Shield typeNot screened
Transfer qualityCat5e / Class D
Wall fixeningFlush mount
